KINO-HM551

Page 25

PIN NO. DESCRIPTION PIN NO. DESCRIPTION

35 GND

36 USBD-

37 N/C

38 USBD+

39 N/C

40 GND

41 N/C

42 N/C

43 N/C

44 N/C

45 N/C

46 N/C

47 N/C

48 1.5

V

49 N/C

50 GND

51 N/C

52 VCC3

Table 3-13: PCIe Mini Card Slot Pinouts

3.2.12 Power Supply Connector

CN Label:

PWR2

CN Type:

4-pin connector (2x2)

CN Location:

See

6

Figure 3-13

CN Pinouts:

See Table 3-14

The Power Supply connector provides +12 V power output.

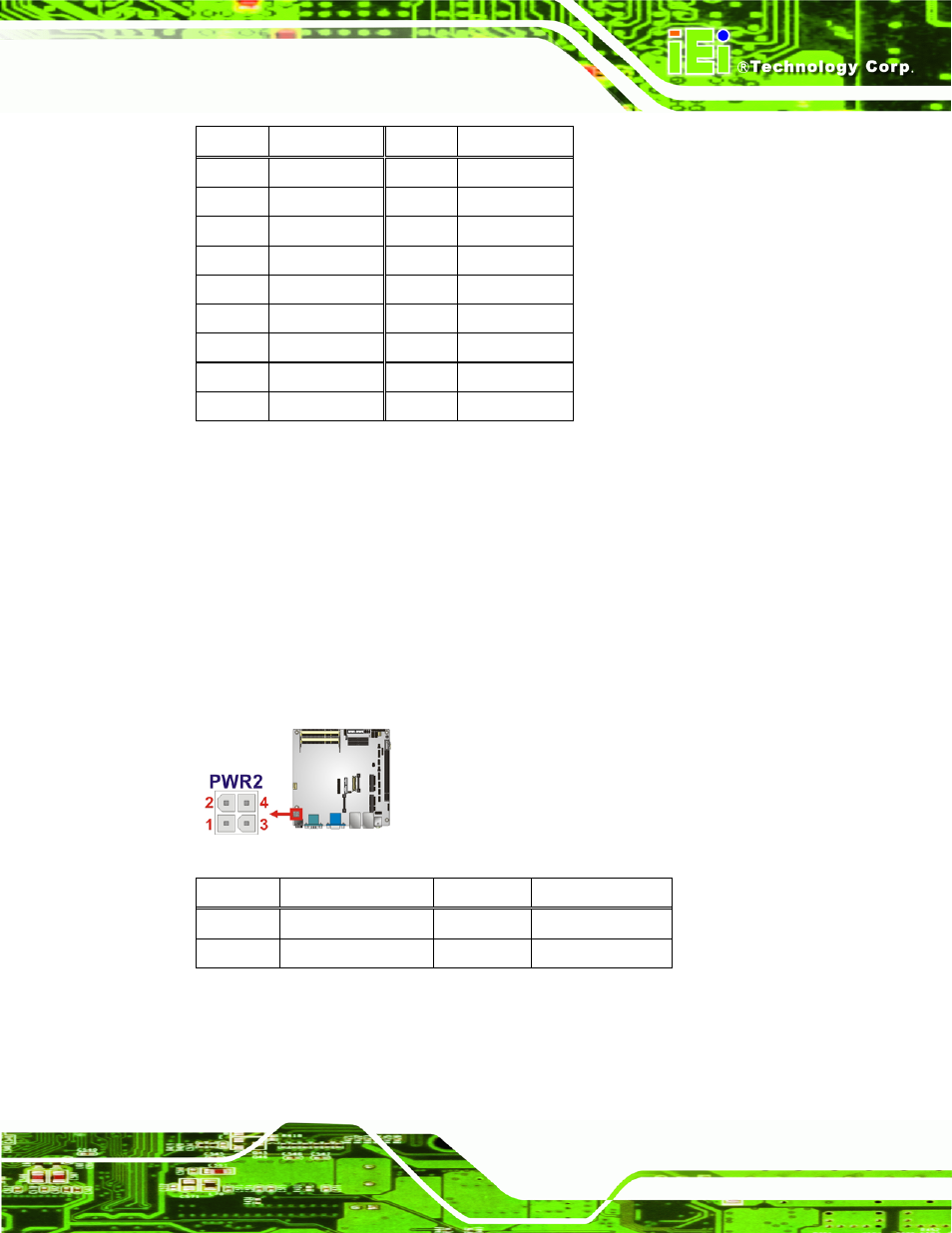

Figure 3-13: +12V Power Supply Connector Location

PIN NO.

DESCRIPTION

PIN NO.

DESCRIPTION

1

GND

2

GND

3

+12V

4

+12V

Table 3-14: +12V Power Supply Connector Pinouts

3.2.13 RS-232/422/485 Serial Port Connector

CN Label:

COM4, COM6
