KINO-HM551

Page 22

PIN NO.

DESCRIPTION

3 +12V

4 GROUND

5 BACKLIGHT

ENABLE

Table 3-10: Inverter Connector Pinouts

3.2.9 Keyboard/Mouse Connector

CN Label:

KB_MS1

CN Type:

6-pin wafer

CN Location:

See Figure 3-10

CN Pinouts:

See Table 3-11

The keyboard/mouse connector connects to a PS/2 Y-cable that can be connected to a

PS/2 keyboard and mouse.

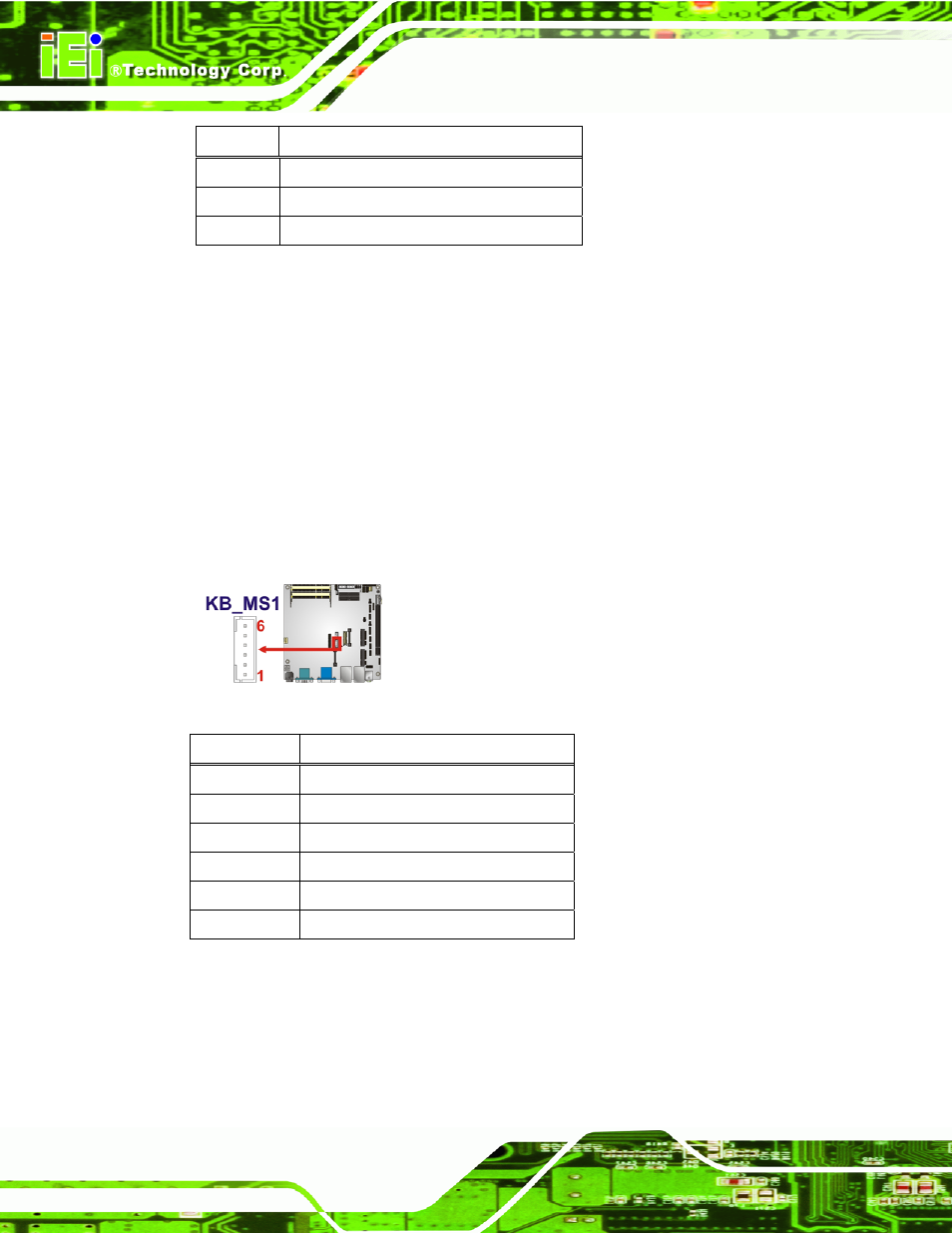

Figure 3-10: Keyboard/Mouse Connector Location

PIN NO.

DESCRIPTION

1 VCC5_KBMS

2 MSDATA

3 MSCLK

4 KBDATA

5 KBCLK

6 KBGND

Table 3-11: Keyboard/Mouse Connector Pinouts

3.2.10 LVDS Connector

CN Label:

LVDS1
