Page 41

KINO-HM551

Page 27

CN Type:

10-pin header

CN Location:

See Figure 3-15

CN Pinouts:

See Table 3-16

The connector supports three internal high speed UARTs.

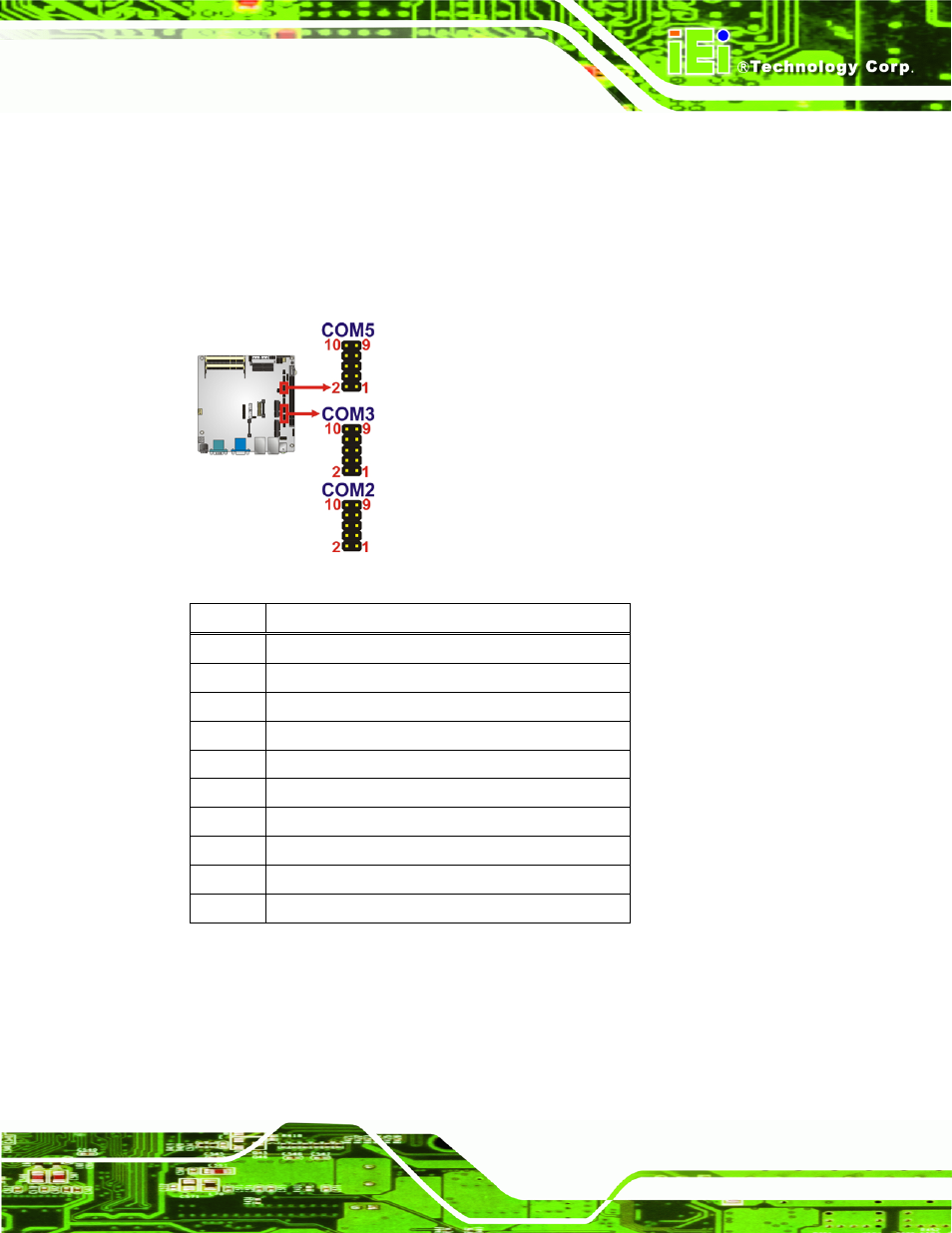

Figure 3-15: RS-232 Serial Port Connector Location

PIN NO

DESCRIPTION

1 DCD

2 DSR

3 SIN

4 RTS

5 SOUT

6 CTS

7 DTR

8 XRI

9 GND

10 GND

Table 3-16: RS-232 Serial Port Connector Pinouts

3.2.15 SATA Drive Connectors

CN Label:

S_ATA1, S_ATA2, S_ATA5, S_ATA6

CN Type:

7-pin SATA drive connectors
