The SATA Power Connectors provides +5V power output on Pin 1 and +12V power output
on Pin 4 to the SATA connectors.

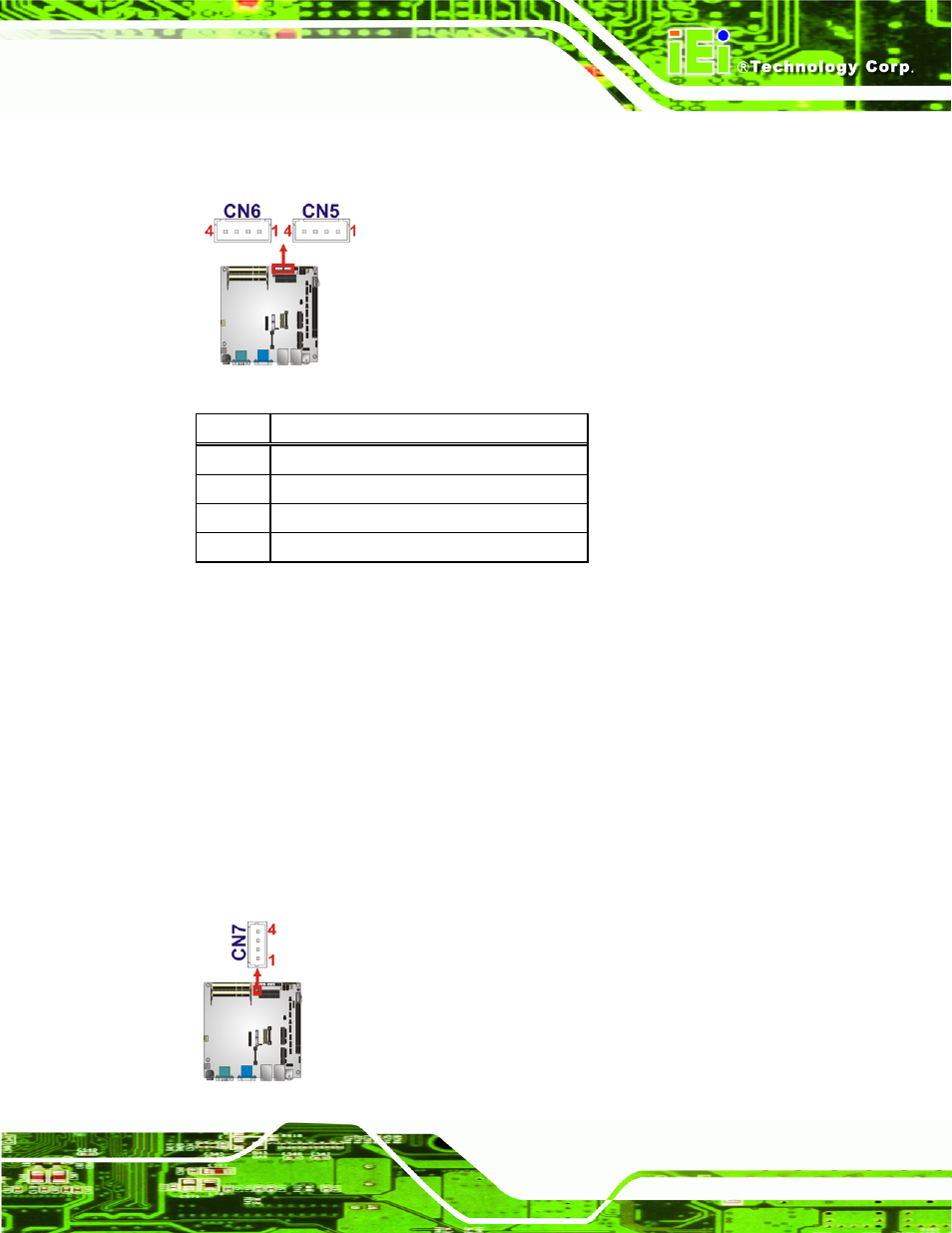

Figure 3-17: SATA Power Connector Locations
PIN NO. DESCRIPTION
1 +5V (Supports 1A)
2 GND
3 GND
4 +12V (Supports 1A)
Table 3-18: SATA Power Connector Pinouts
3.2.17 SMBus Connector
CN Label: CN7
CN Type: 4-pin wafer
CN Location: See
6
Figure 3-18
CN Pinouts: See
6
Table 3-19
The SMBus (System Management Bus) connector provides low-speed system
management communications.
