3.2.19 TPM Connector

CN Label:

TPM1

CN Type:

20-pin connector

CN Location:

See Figure 3-20

CN Pinouts:

See Table 3-21

The Trusted Platform Module (TPM) connector secures the system on bootup.

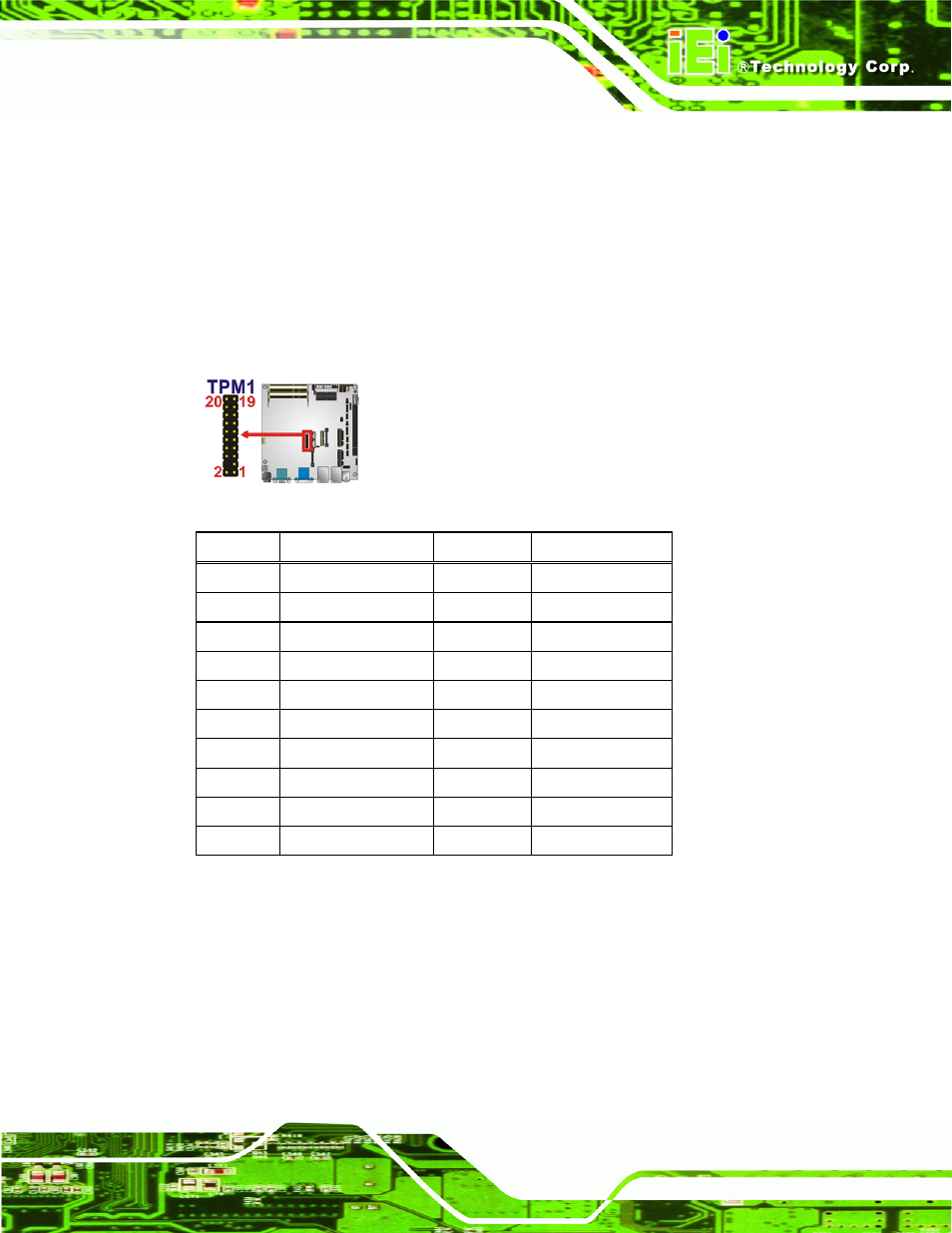

Figure 3-20: TPM1 Connector Location

PIN NO.

DESCRIPTION

PIN NO.

DESCRIPTION

1

LCLK

2

GND

3

LFRAME#

4

KEY

5

LRERST#

6

+5V

7

LAD3

8

LAD2

9

+3V

10

LAD1

11

LAD0

12

GND

13

SCL

14

SDA

15

SB3V

16

SERIRQ

17

GND

18

GLKRUN#

19

LPCPD#

20

LDRQ#

Table 3-21: TPM1 Connector Pinouts

3.2.20 USB Connectors

CN Label:

USB1 and USB2

CN Type:

8-pin header (2x4)

CN Location:

See

6

Figure 3-21
