PIN NO. DESCRIPTION PIN NO. DESCRIPTION
7 Input 3 8 Input 2
9 Input 1 10 Input 0
Table 3-4: Digital I/O Connector Pinouts
3.2.3 Fan Connector (CPU)
CN Label: CPU_FAN1
CN Type: 4-pin wafer (2x2)
CN Location: See Figure 3-4
CN Pinouts: See Table 3-5
The fan connector attaches to a cooling fan.

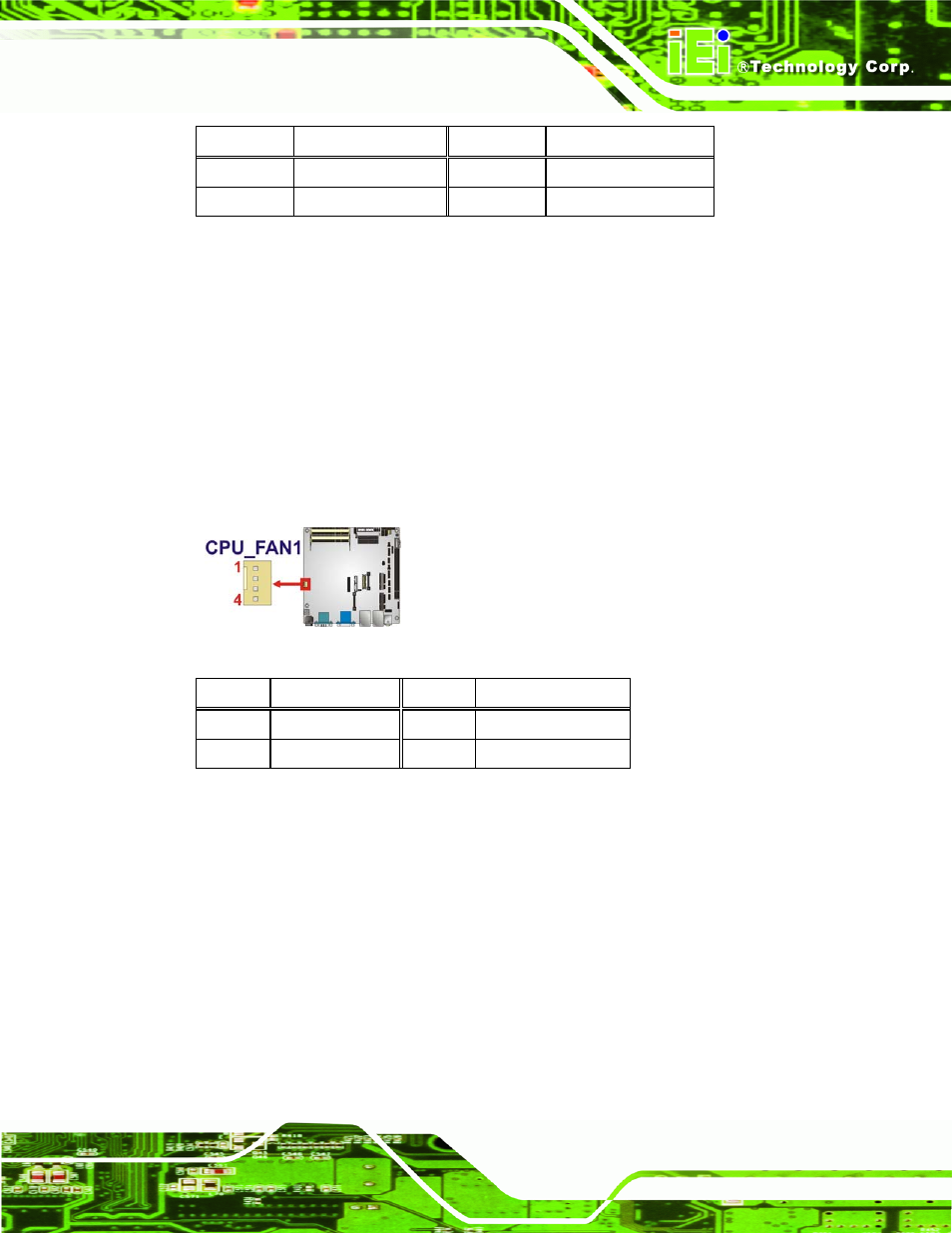

Figure 3-4: Fan Connector Locations
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
1 GND 2 +12V
3 Rotation Signal 4 PWM Control Signal
Table 3-5: Fan Connector Pinouts
3.2.4 Fan Connector (System)
CN Label: SYS_FAN1
CN Type: 3-pin wafer
CN Location: See Figure 3-5
CN Pinouts: See Table 3-6
The fan connector attaches a cooling fan.
