KINO-HM551

Page 30

Figure 3-18: SMBus Connector Pinout Locations

PIN NO.

DESCRIPTION

1 GND

2 SDAT

3 SCLK

4 +5V

Table 3-19: SMBus Connector Pinouts

3.2.18 SPDIF Connector

CN Label:

SPDIF1

CN Type:

5-pin connector

CN Location:

See

6

Figure 3-19

CN Pinouts:

See

6

Table 3-20

This connector is used to connect digital audio devices to the system.

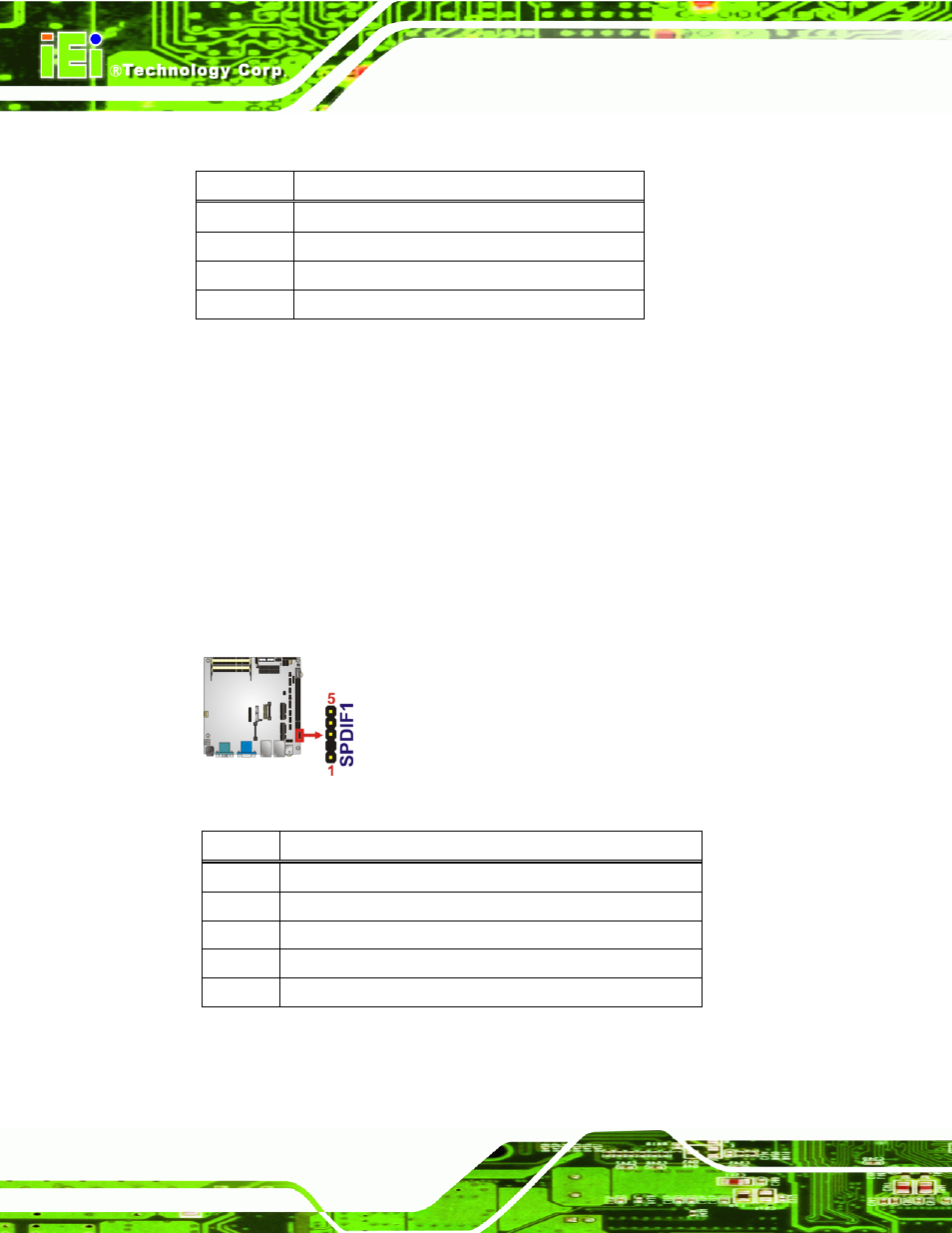

Figure 3-19: SPDIF Connector Pinout Locations

PIN NO.

DESCRIPTION

1 5V

2 NC

3 SPDIFOUT

4 GND

5 SPDIFIN

Table 3-20: SPDIF Connector Pinouts
