FUNCTION PIN NO. DESCRIPTION FUNCTION PIN NO. DESCRIPTION
1 NC 6 PWR_LED+
2 PWR_BTN+ 7 PWR_LED+ Power Button
3 PWR_BTN-
Power LED
Indicator
8 PWR_LED-
4 HDD_LED+ 9 RESET+ HDD LED
Indicator 5 HDD_LED-
Reset
10 RESET-
Table 3-7: Front Panel Indicator Pinouts
3.2.6 Half PCIe Mini Card Slot
CN Label: CN4
CN Type: PCIe Mini card slot
CN Location: See Figure 3-7
CN Pinouts: See Table 3-8
The PCIe Mini card slot is for installing PCIe Mini expansion cards.

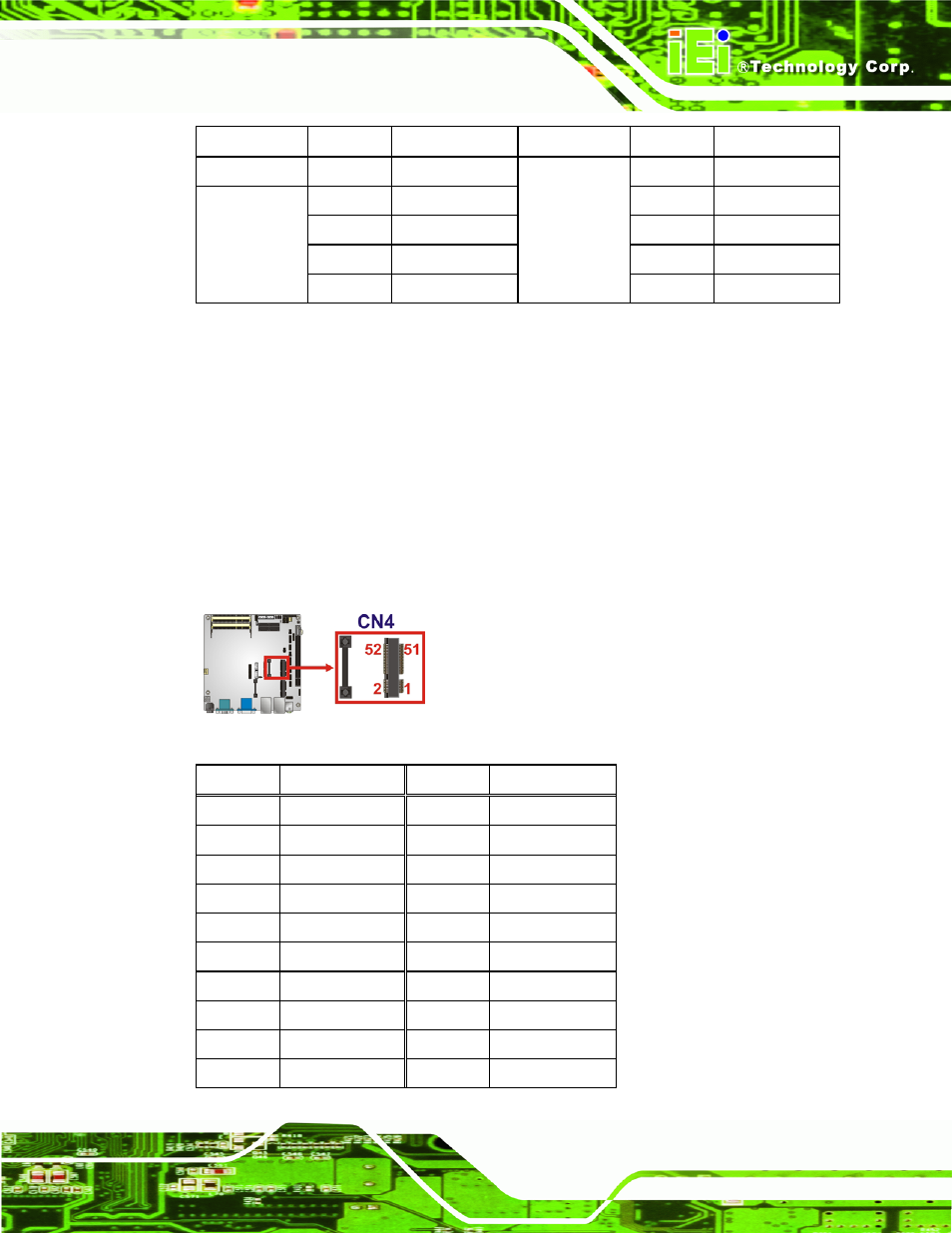

Figure 3-7: Half PCIe Mini Card Slot Connector Location
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
1 PCIE_WAKE# 2 VCC3
3 N/C 4 GND
5 N/C 6 1.5 V
7 N/C 8 N/C
9 GND 10 N/C
11 CLK- 12 N/C
13 CLK+ 14 N/C
15 GND 16 N/C
17 PCIRST# 18 GND
19 N/C 20 VCC3
