KINO-HM551

Page 53

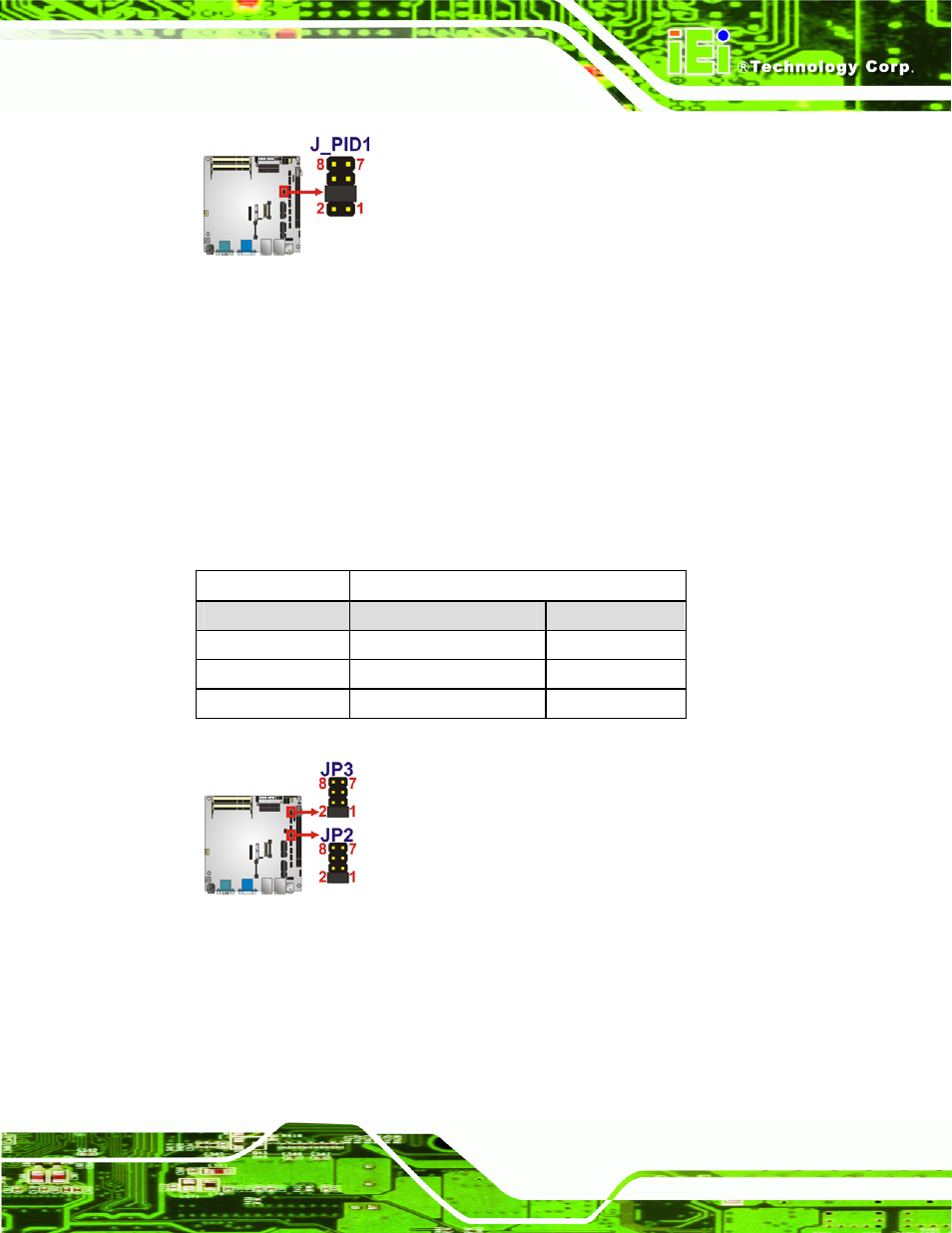

Figure 4-10: LVDS Panel Resolution Jumper Pinout Locations

4.5.6 Serial Port Select Jumper

Jumper Label:

JP2, JP3

Jumper Type:

8-pin header

Jumper Settings:

See Table 4-7

Jumper Location:

See Figure 4-11

This jumper sets the communication protocol of the serial port.

Setting Description

Short 1-2

RS-232

Default

Short 3-4

RS-422

Short 5-6

RS-485

Short 7-8

RS-485 with RTS Control

Table 4-7: Serial Port Jumper Settings

Figure 4-11: Serial Port Jumper Location
