KINO-HM551
Page 37
PIN NO. DESCRIPTION
1 DATA CARRIER DETECT (DCD1)
2 RECEIVE DATA (RXD1)
3 TRANSMIT DATA (TXD1)
4 DATA TERMINAL READY (DTR1)
5 GND (GND1)
6 DATA SET READY (DSR1)
7 REQUEST TO SEND (RTS1)
8 CLEAR TO SEND (CTS1)
9 RING INDICATOR (RI1)
Table 3-27: USB Connector Pinouts
3.3.6 VGA and DVI Connector
CN Label: VIDEO1
CN Type: 15-pin Female (VGA) , 24-pin Female (DVI)
CN Location: See Figure 3-27
CN Pinouts: Table 3-28 and Table 3-29
This port connects to a monitor that accepts a standard VGA input.

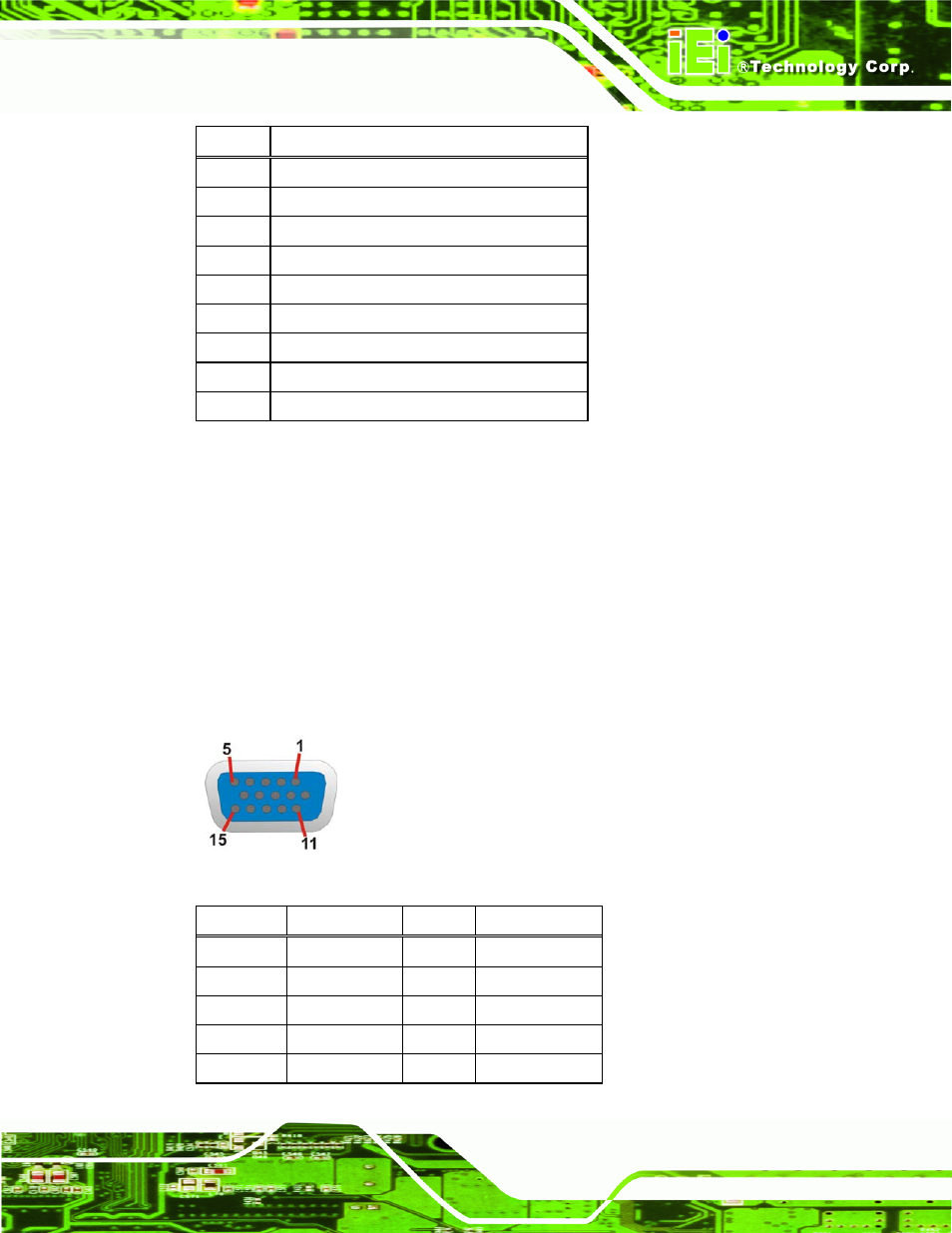

Figure 3-27: VGA Connector
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
1 RED 2 GREEN
3 BLUE 4 NC
5 GND 6 GND
7 GND 8 GND
9 VCC 10 GND
