KINO-HM551

Page 52

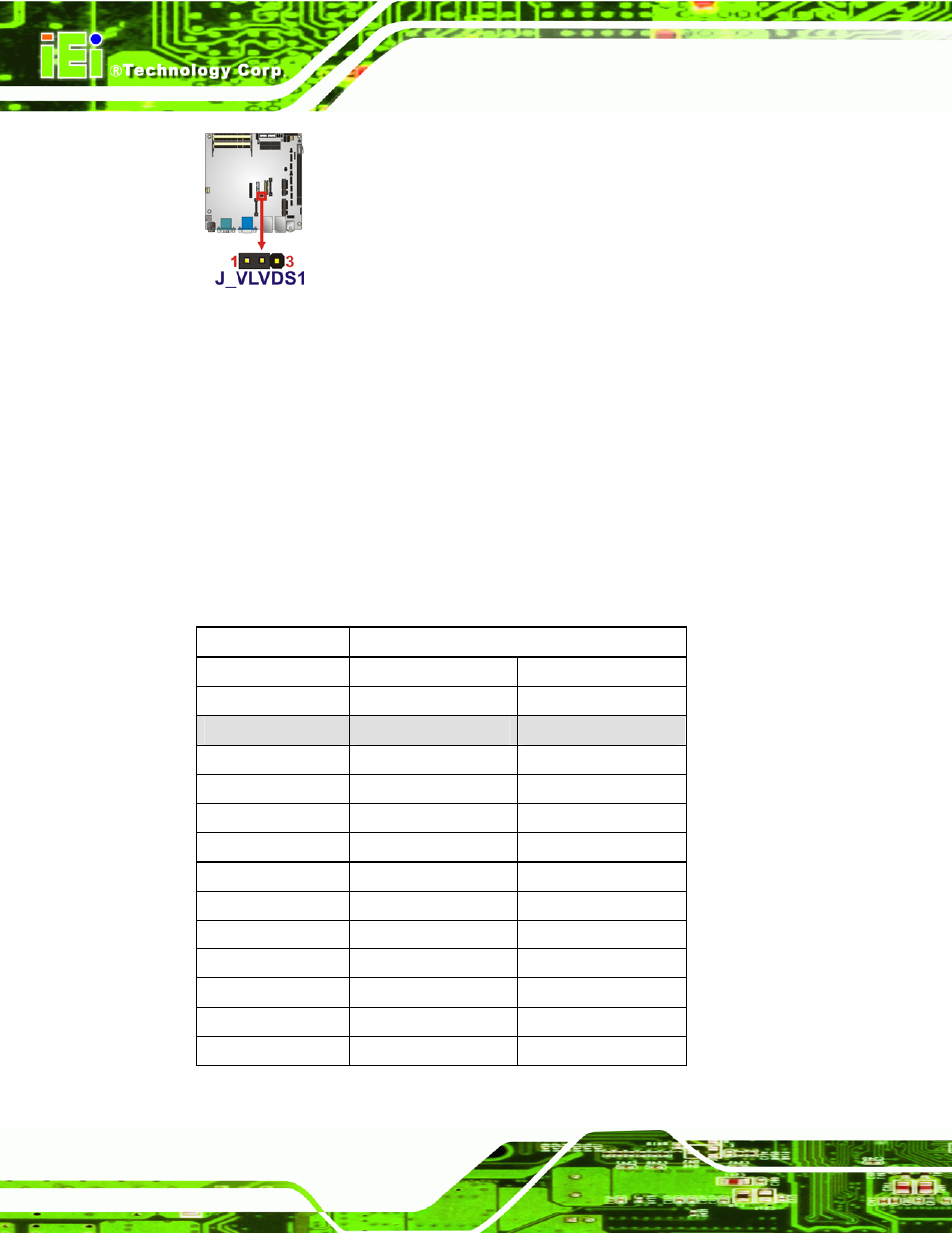

Figure 4-9: LVDS Voltage Selection Jumper Locations

4.5.5 LVDS Screen Resolution Selection

Jumper Label:

J_PID1

Jumper Type:

8-pin header

Jumper Settings:

See Table 4-6

Jumper Location:

See Figure 4-10

The LVDS Screen Resolution Selection jumper allows the LVDS screen voltage to be set.

The LVDS Screen Resolution Selection jumper settings are shown in Table 4-2.

Setting Description

Open

800 X 600 (18bit)

Short 1-2

1024 X 768 (18bit)

Short 3-4

1024 X 768 (24bit)

Default

Short 1-2, 3-4

1280 X 800 (18bit)

Short 5-6

1280 X 1024 (48bit)

Short 1-2, 5-6

1366 X 768 (18bit)

Short 3-4, 5-6

1400 X 1050 (48bit)

Short 1-2, 2-4, 5-6

1440X 900 (48bit)

Short 7-8

1600 X 900 (48bit)

Short 1-2, 7-8

1600 X 1200 (48bit)

Short 3-4, 7-8

1680X 1050 (48bit)

Short 1-2, 3-4, 7-8

1920 X 1080 (48bit)

Short 5-6, 7-8

1920 X 1200 (48bit)

Short 1-2, 5-6, 7-8

2048 X 1536 (48bit)

Table 4-6: LVDS Screen Resolution Jumper Settings
