KINO-HM551

Page 50

Clear CMOS

Description

Short 1-2

Keep CMOS Setup

Default

Short 2-3

Clear CMOS Setup

Table 4-3: Clear CMOS Jumper Settings

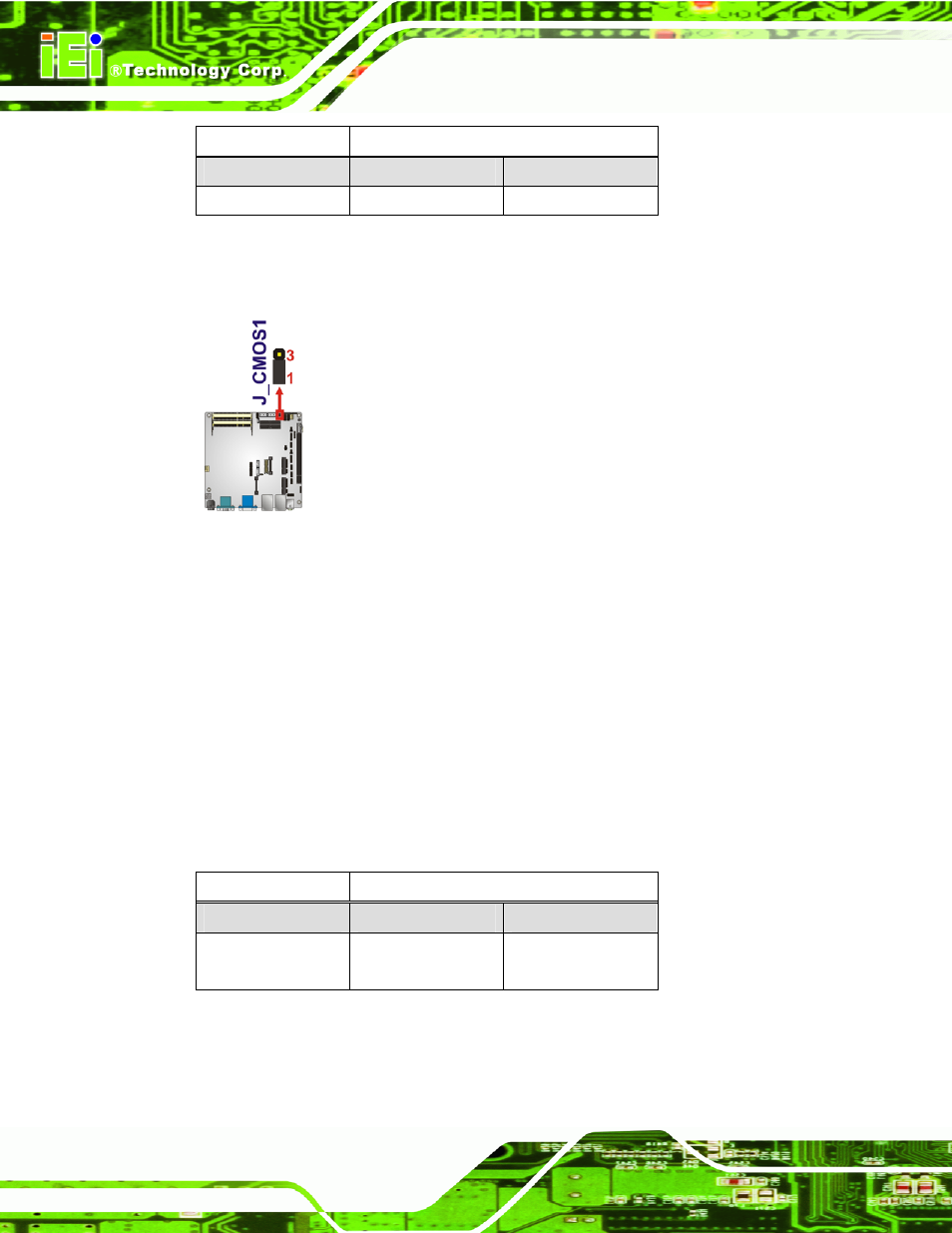

The location of the clear CMOS jumper is shown in Figure 4-5

Figure 4-7: AT Auto Button Select Jumper Settings

4.5.3 ME RTC Register Jumper

Jumper Label:

ME_RTC1

Jumper Type:

3-pin header

Jumper Settings:

See Table 4-4

Jumper Location:

See Figure 4-8

The ME RTC Register jumper saves or clears the ME RTC registers. The ME RTC

Register jumper settings are shown in Table 4-4.

Setting Description

Short 1 - 2

Save ME RTC registers Default

Short 2 – 3

Clear ME RTC

registers

Table 4-4: ME RTC Register Jumper Settings

The location of the ME RTC Register jumper is shown in Figure 4-8 below.
