CN Pinouts:

See

6

Table 3-22

The USB connectors connect to USB devices. Each pin header provides two USB ports.

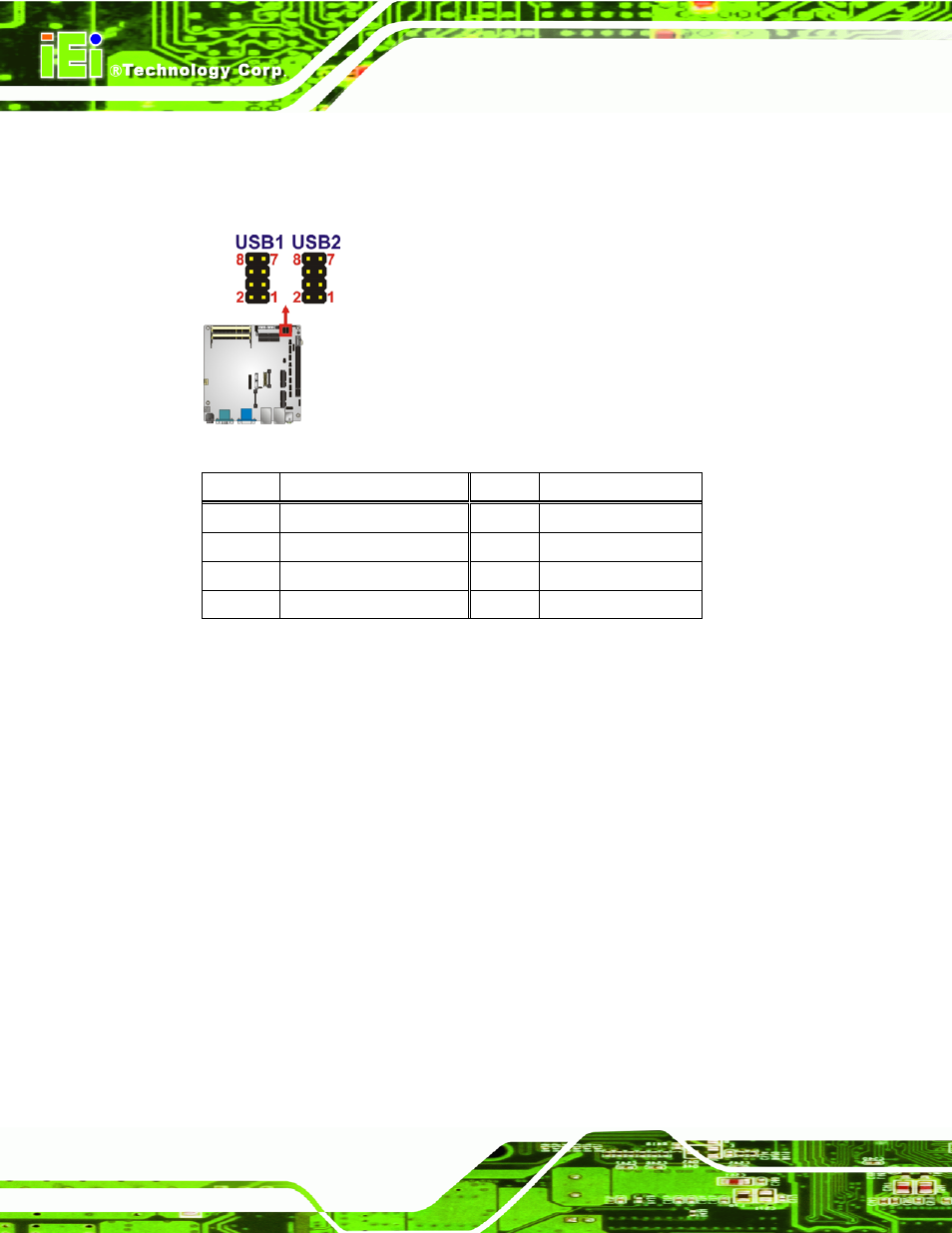

Figure 3-21: USB Connector Pinout Locations

PIN NO.

DESCRIPTION

PIN NO. DESCRIPTION

1 VCC

2

GND

3 DATAN-

4

DATA1M+

5 DATAN+

6

DATAM-

7 GND

8

VCC

Table 3-22: USB Connector Pinouts

3.3 External Peripheral Interface Connector Panel

6

Figure 3-22 shows the KINO-HM551 external peripheral interface connector (Mini-ITX

SBC) panel. The KINO-HM551 Mini-ITX SBC panel consists of the following:

 2 x Ethernet connectors

 1 x HDMI connectors

 1 x DB-9 RS-232 connector

 4 x USB connectors

 1 x 12 V adapter connector

 1 x VGA connector

 1 x DVI connector

 1 x Audio connector
