Short 3-4 1024 x 768 (18-bit)
Short 1-2, 3-4 1024 x 768 (24-bit)
Short 5-6 1024 x 768 (36-bit)
Short 1-2, 5-6 1280 x 1024 (48-bit)
Short 3-4, 5-6 1600 x 1200 (48-bit)
Short 1-2, 3-4, 5-6 1280 x 768 (18-bit)
Short 7-8 1280 x 800 (18-bit)
Short 1-2, 7-8 1366 x 768 (24-bit)
Short 3-4, 7-8 1440 x 900 (36-bit)
Short 1-2, 3-4, 7-8 1440 x 900 (48-bit)
Short 5-6, 7-8 1680 x 1050 (48-bit)
Short 1-2, 5-6, 7-8 1920 x 1080 (48-bit)
Short 3-4, 5-6, 7-8 1920 x 1200 (48-bit)
Table 5-4: LVDS Panel Resolution Jumper Settings
The LVDS Panel Resolution jumper location is shown in
800H
Figure 5-8.

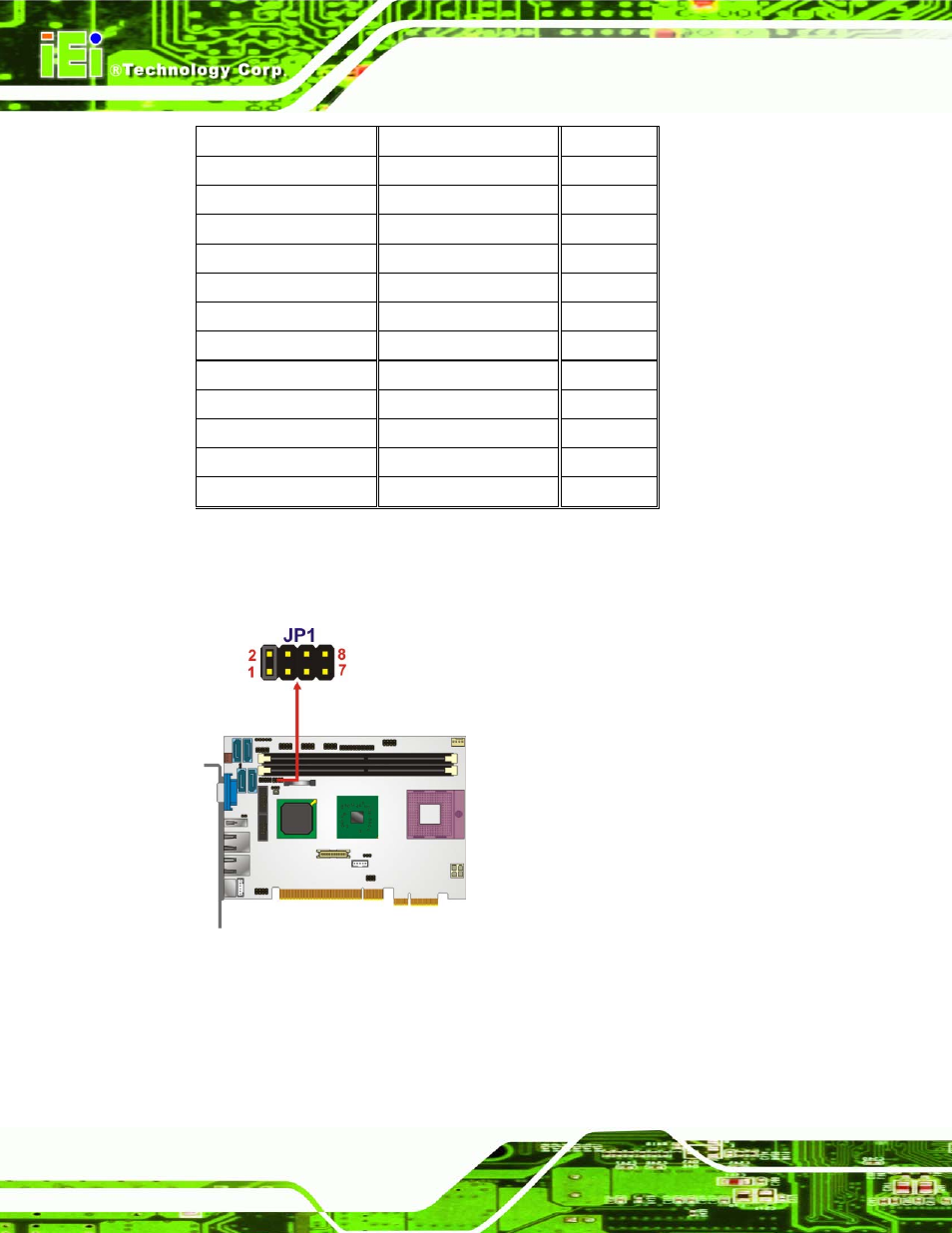

Figure 5-8: LVDS Panel Resolution Jumper Pinout Locations
