PICOe-GM45A Half-Size CPU Card

Page 22

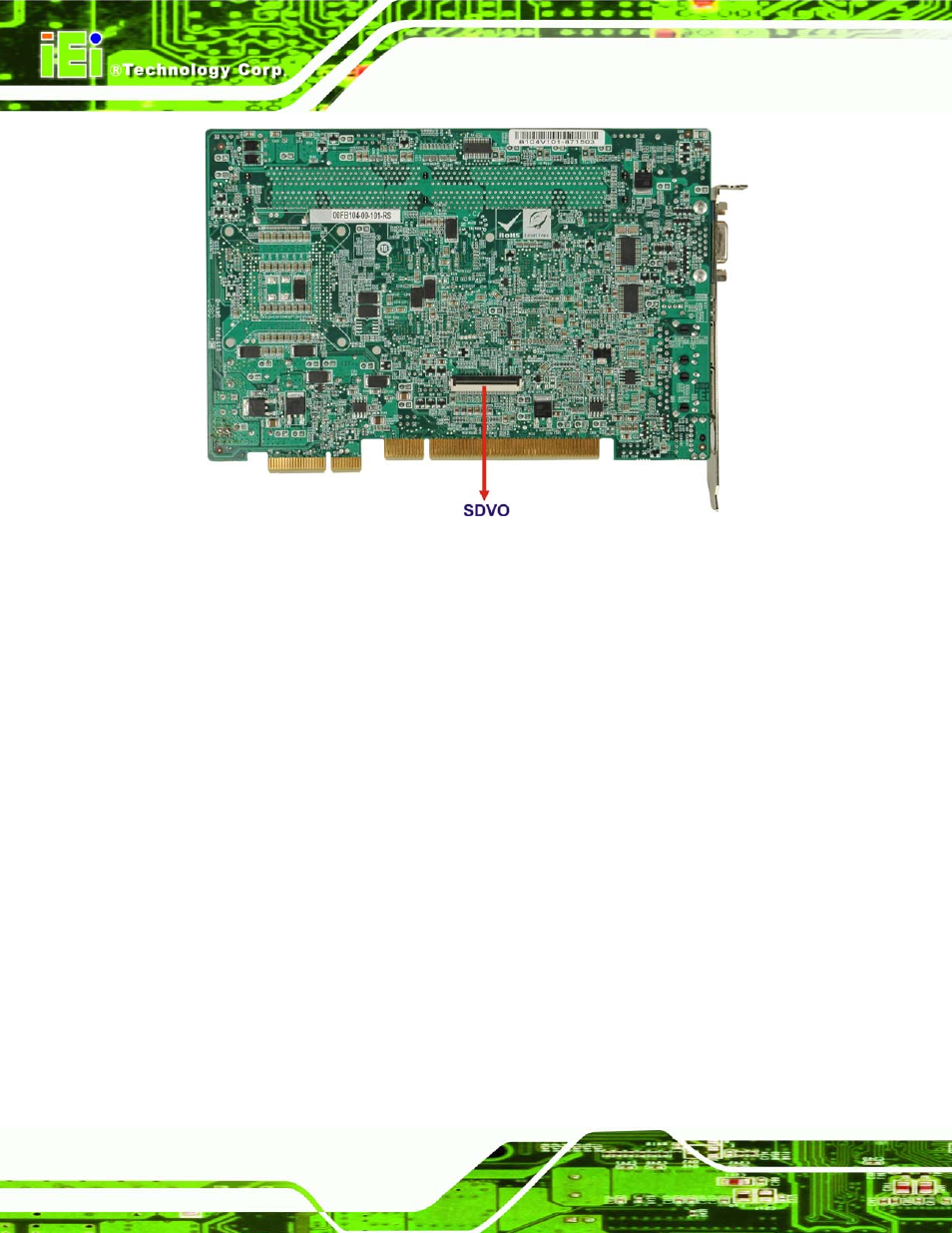

Figure 1-3: PICOe-GM45A Overview [Solder Side]

1.2.2 PICOe-GM45A Peripheral Connectors and Jumpers

The PICOe-GM45A has the following connectors on-board:

1 x ATX power supply enable connector

1 x Audio connector

1 x Backlight inverter connector

1 x CPU power connector

1 x Digital input/output (DIO) connector

2 x DDR2 DIMM sockets

1 x Fan connector

1 x Front panel connector

1 x Infrared interface (IrDA) connector

1 x Keyboard connector

1 x LVDS connector

1 x Parallel port connector

4 x Serial ATA (SATA) drive connectors

1 x SDVO connector

2 x RS-232 serial port connectors
