PICOe-GM45A Half-Size CPU Card
Page 60

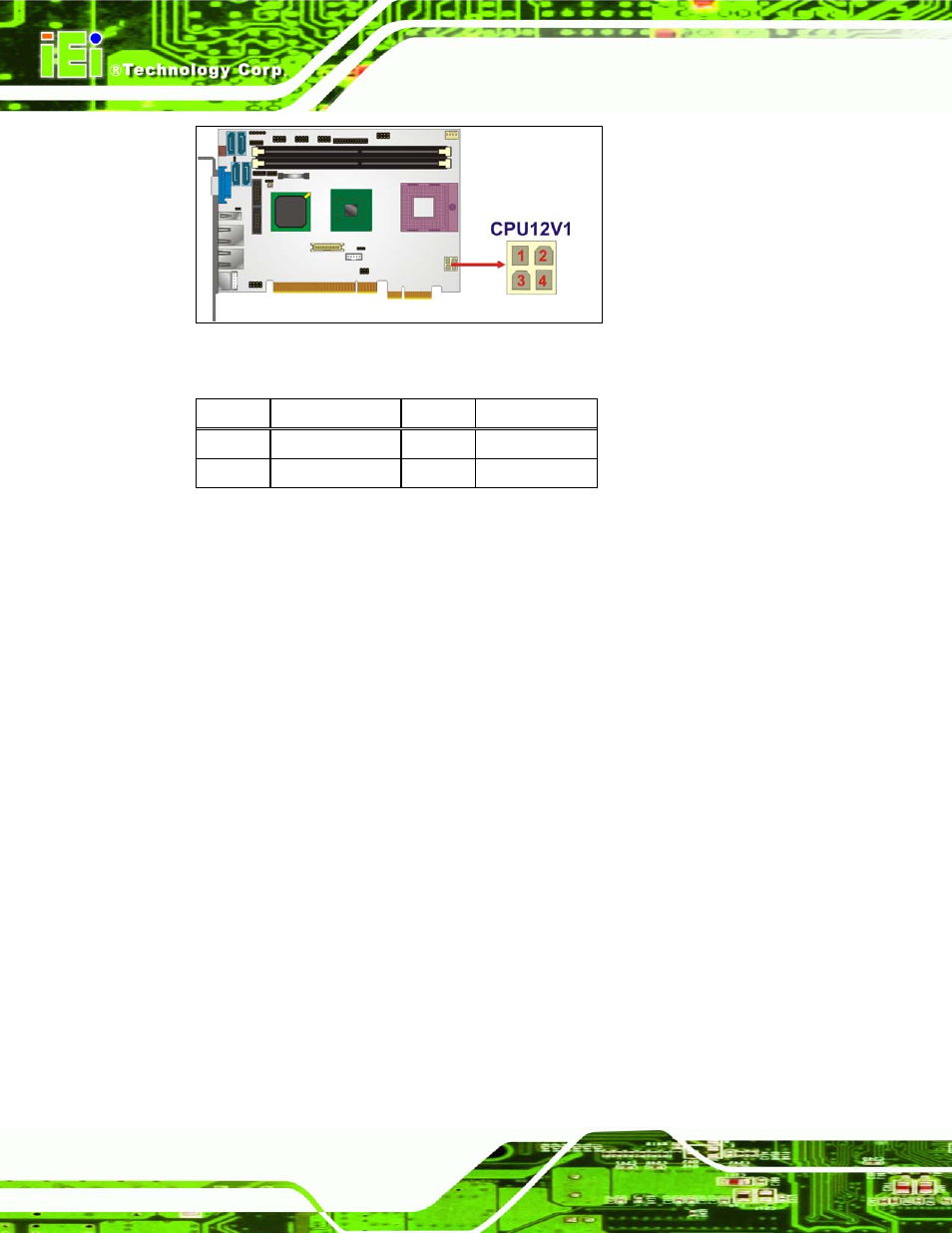

Figure 4-6: CPU 12V Power Connector Location
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
1 GND 2 GND
3 +12V 4 +12V
Table 4-6: CPU 12V Power Connector Pinouts
4.2.5 Digital Input/Output (DIO) Connector
CN Label: DIO1
CN Type: 10-pin header (2x5)
CN Location: See
743H
Figure 4-7
CN Pinouts: See
744H
Table 4-7
The digital input/output connector is managed through a Super I/O chip. The DIO
connector pins are user programmable.
