PICOe-GM45A Half-Size CPU Card

Page 72

4.2.15 SPI Flash Connector

CN Label:

JSPI1

CN Type:

8-pin header (2x4)

CN Location:

See

763H

Figure 4-17

CN Pinouts:

See

764H

Table 4-17

The 8-pin SPI Flash connector is used for the BIOS.

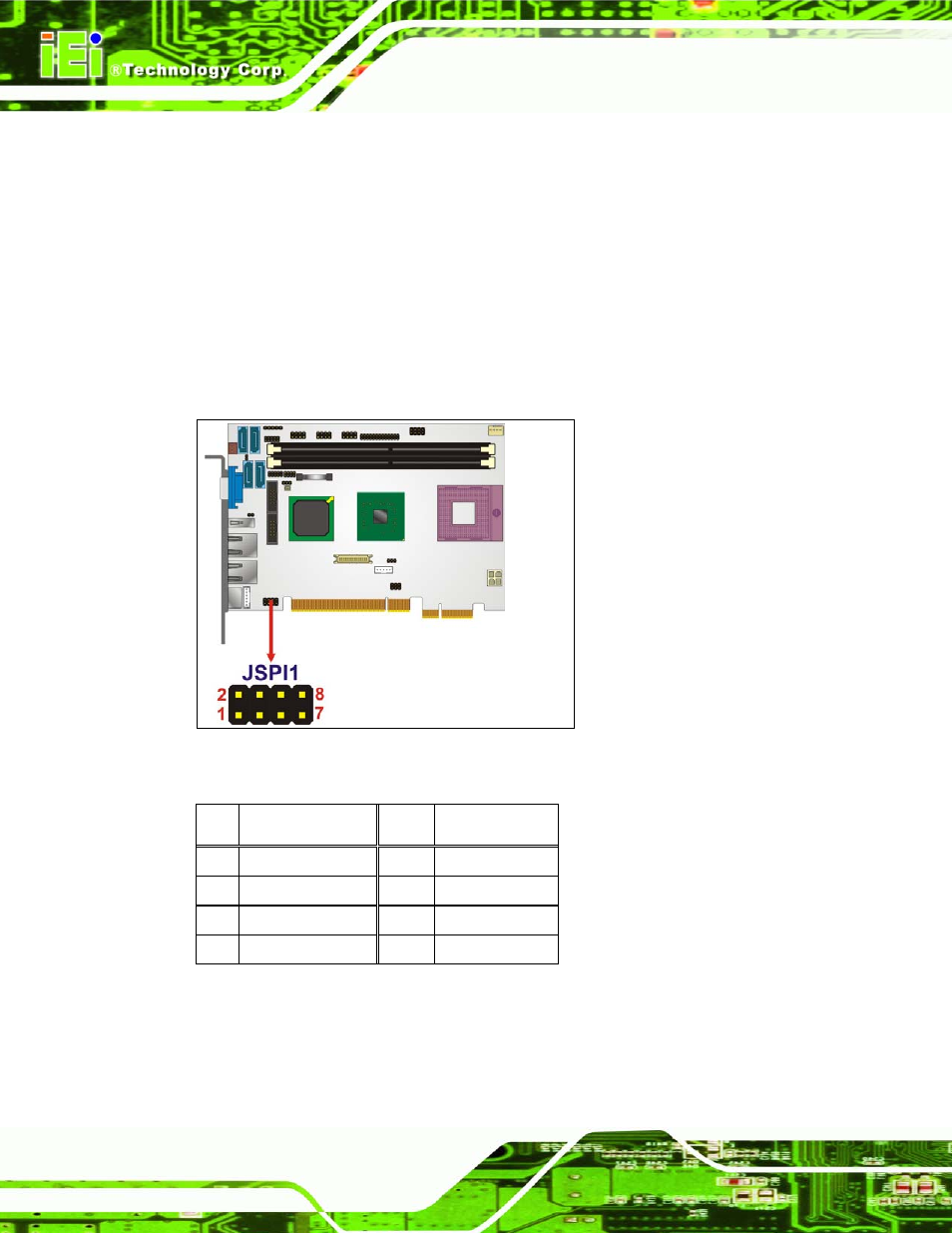

Figure 4-17: SPI Flash Connector Pinouts

PIN DESCRIPTION

1 3.3V

2 GND

3 CS0

4 CLK

5 SO0

6 SI

7 N/C

8 N/C

Table 4-17: SPI Flash Connector
