PICOe-GM45A Half-Size CPU Card
Page 73
4.2.16 TV Out Connector
CN Label: TV1
CN Type: 6-pin header (2x3)
CN Location: See
799H765H
Figure 4-18
CN Pinouts: See
800H766H
Table 4-18
The 2x3 pin TV out connector connects to a TV output by using an S-Video or RCA
connector. The TV out connector makes displaying media data on a television easier.

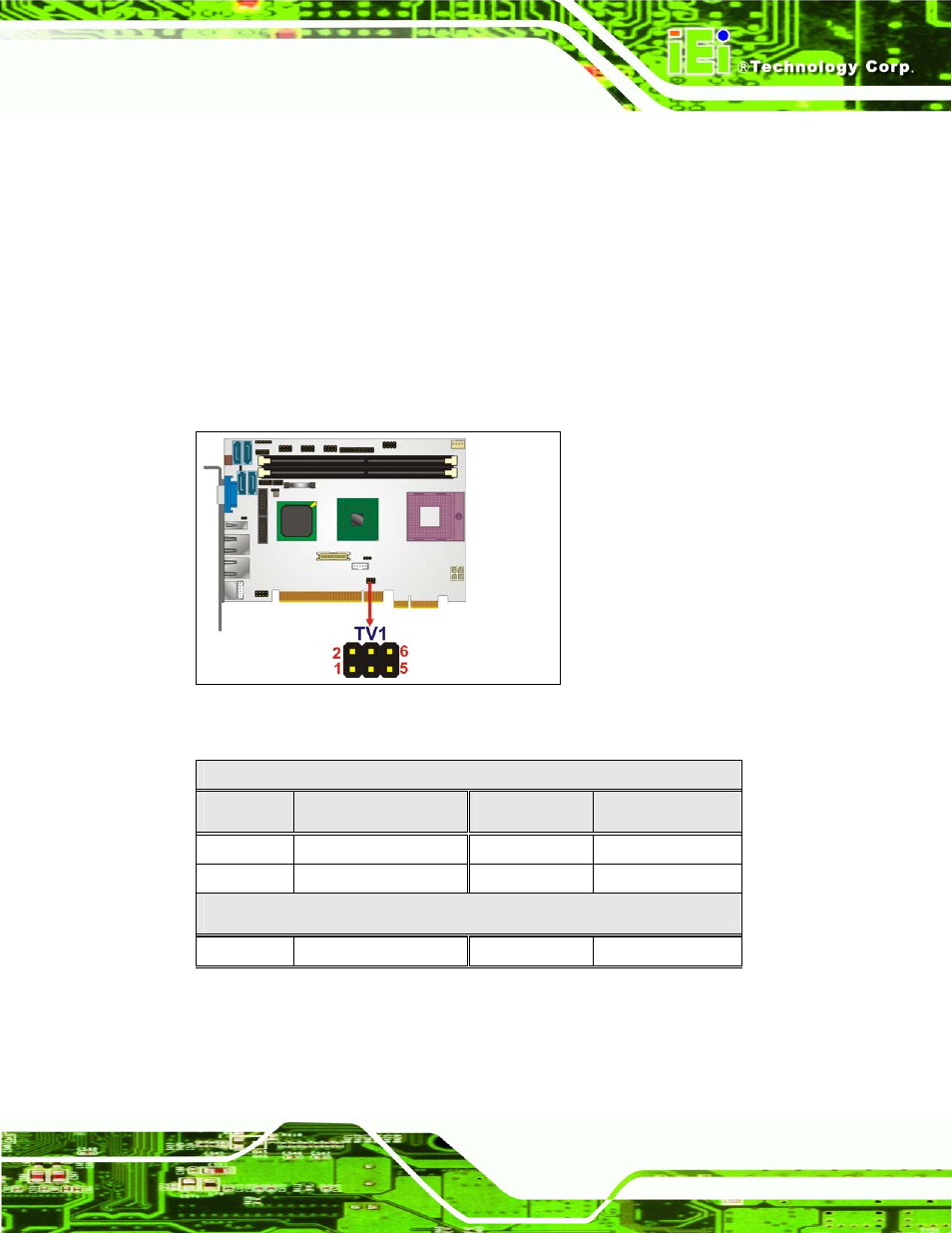

Figure 4-18: TV Connector Pinout Locations
S-Video Connector
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
1 GND 2 AGREEN_Y
3 GND 4 ARED_C
RCA Connector (only video signal)
5 GND 6 ABLUE_CVBS
Table 4-18: TV Port Connector Pinouts
