PICOe-GM45A Half-Size CPU Card
Page 65

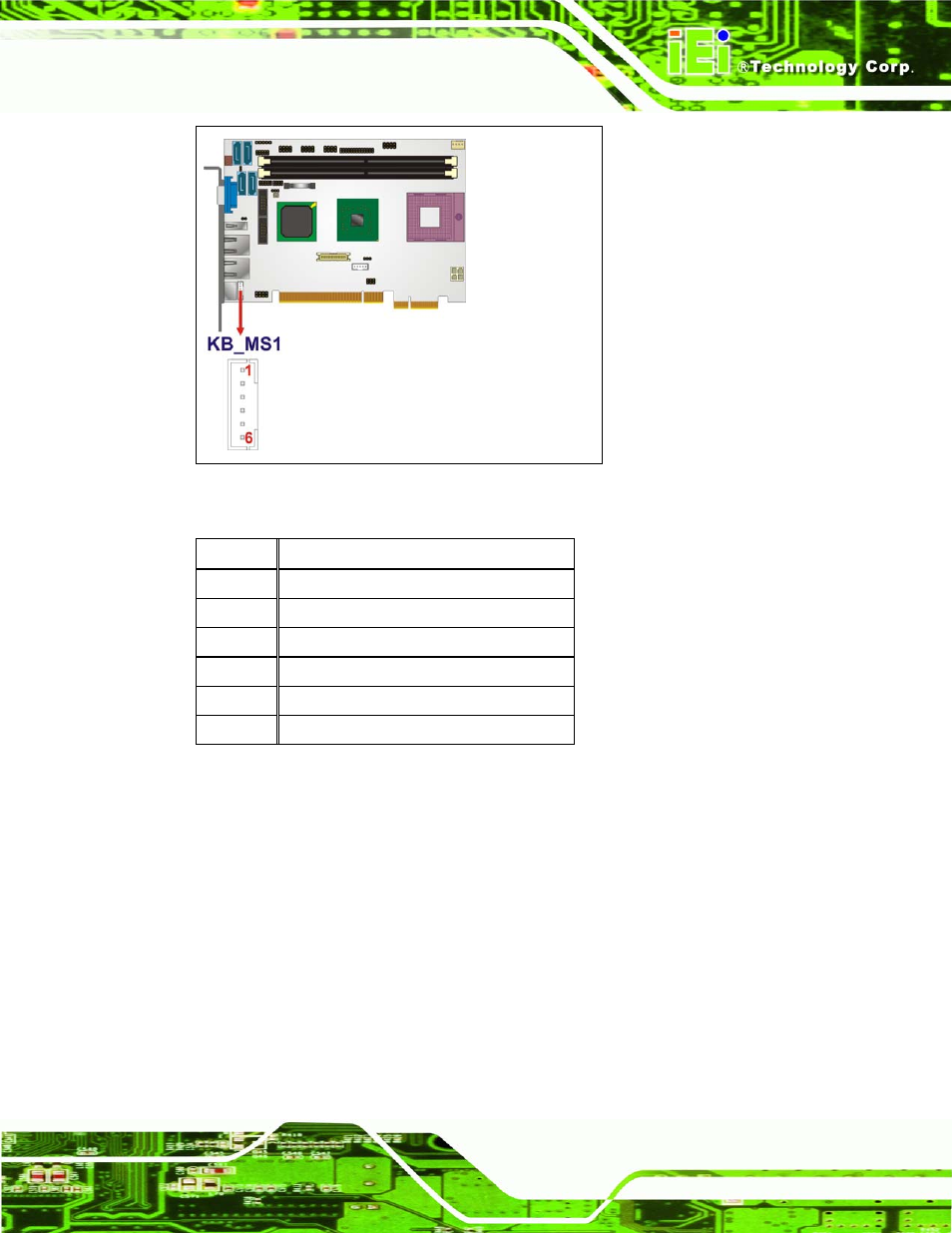

Figure 4-11: Keyboard/Mouse Connector Location
PIN NO. DESCRIPTION
1 VCC5_KBMS
2 MS DATA
3 MS CLK
4 KB DATA
5 KB CLK
6 GROUND
Table 4-11: Keyboard/Mouse Connector Pinouts
4.2.10 LVDS LCD Connector
CN Label: LVDS1
CN Type: 30-pin crimp (3x10)
CN Location: See
789H753H
Figure 4-12
CN Pinouts: See
790H754H
Table 4-12
The 30-pin LVDS LCD connectors can be connected to single channel or dual channel,
24-bit or 36-bit LVDS panel.
