Page 69

PICOe-GM45A Half-Size CPU Card

Page 69

PIN NO. DESCRIPTION

1 GND

2 TX+

3 TX-

4 GND

5 RX-

6 RX+

7 GND

Table 4-14: SATA Drive Connector Pinouts

4.2.13 Serial Port Connectors (COM 1 and COM 2)

CN Label:

COM1 and COM2

CN Type:

10-pin header (2x5)

CN Location:

See

795H759H

Figure 4-15

CN Pinouts:

See

796H760H

Table 4-15

The 10-pin serial port connector provides a second RS-232 serial communications

channel. The COM serial port connectors can be connected to external RS-232 serial port

devices.

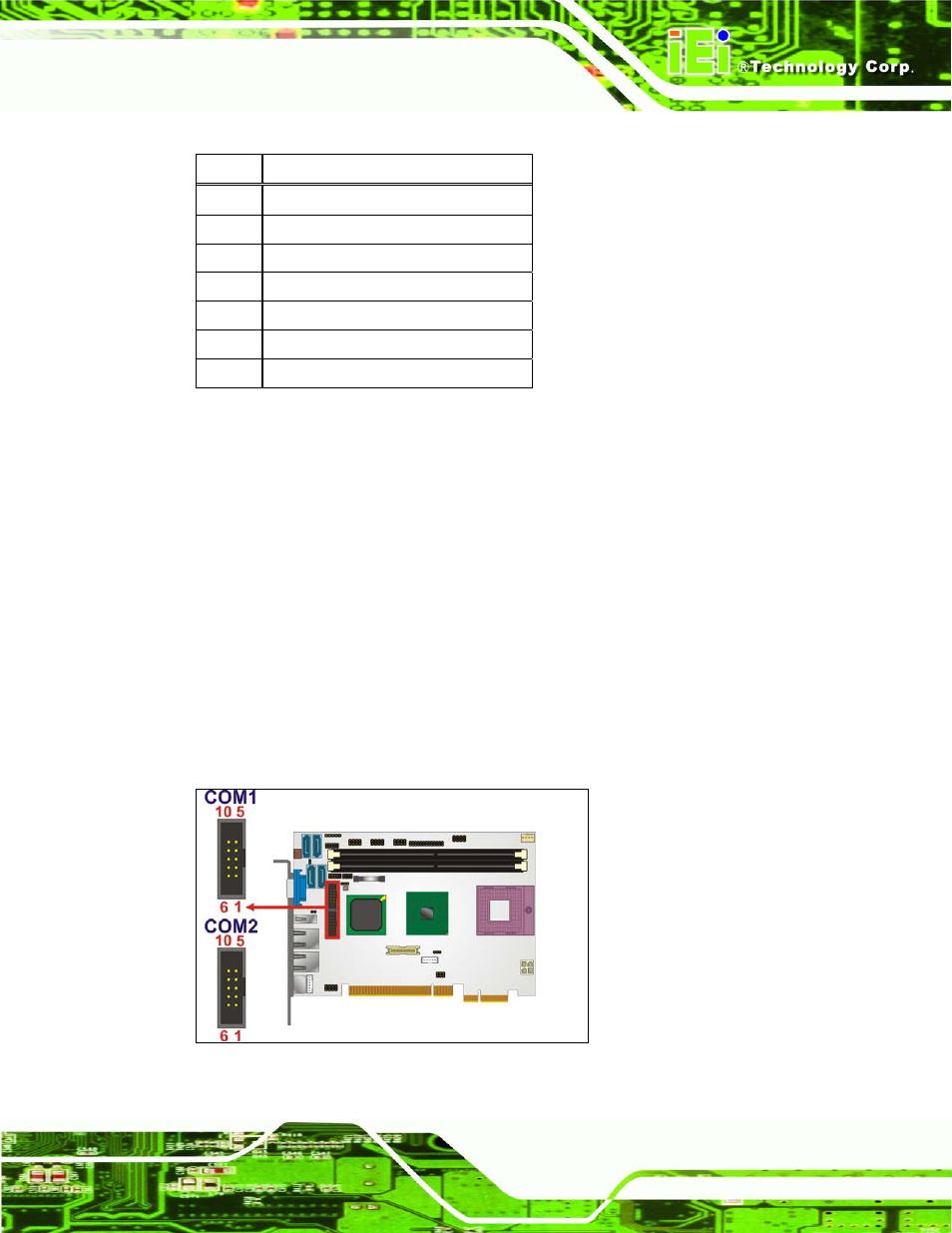

Figure 4-15: COM Connector Pinout Locations
