IEI Integration PICOe-GM45A - Manual (Page 123)

PICOe-GM45A Half-Size CPU Card
Page 123
32Bit Data Transfer [Enabled]
Use the 32Bit Data Transfer BIOS option to enables or disable 32-bit data transfers.
Disabled Prevents the BIOS from using 32-bit data transfers.
Enabled D EFAULT Allows BIOS to use 32-bit data transfers on supported
hard disk drives.
6.3.3 Super IO Configuration
Use the Super IO Configuration menu (
878H839H
BIOS Menu 6) to set or change the
configurations for the FDD controllers, parallel ports and serial ports.

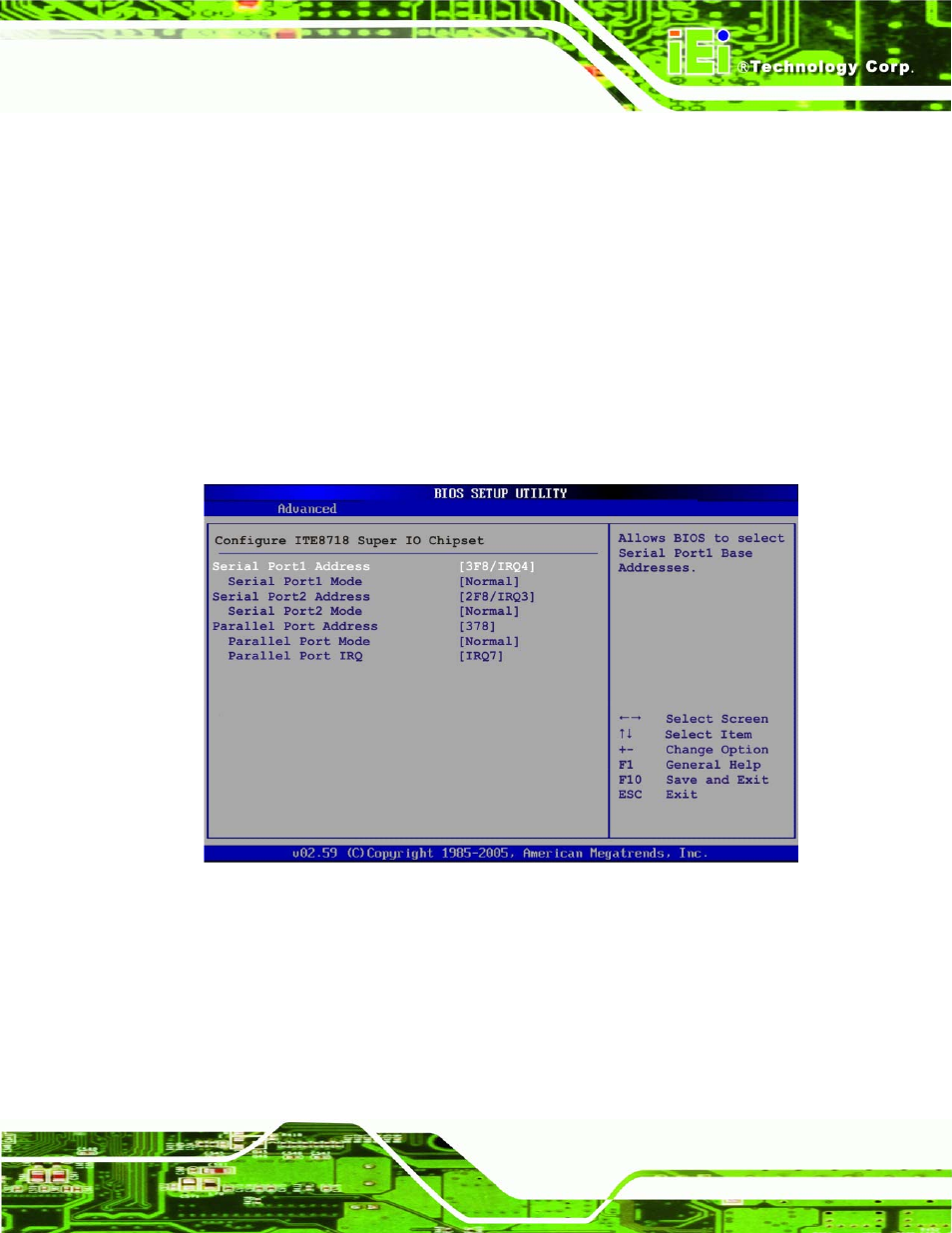

BIOS Menu 6: Super IO Configuration
Serial Port1 Address [3F8/IRQ4]
Use the Serial Port1 Address option to select the Serial Port 1 base address.
Disabled No base address is assigned to Serial Port 1
