PICOe-GM45A Half-Size CPU Card
Page 64

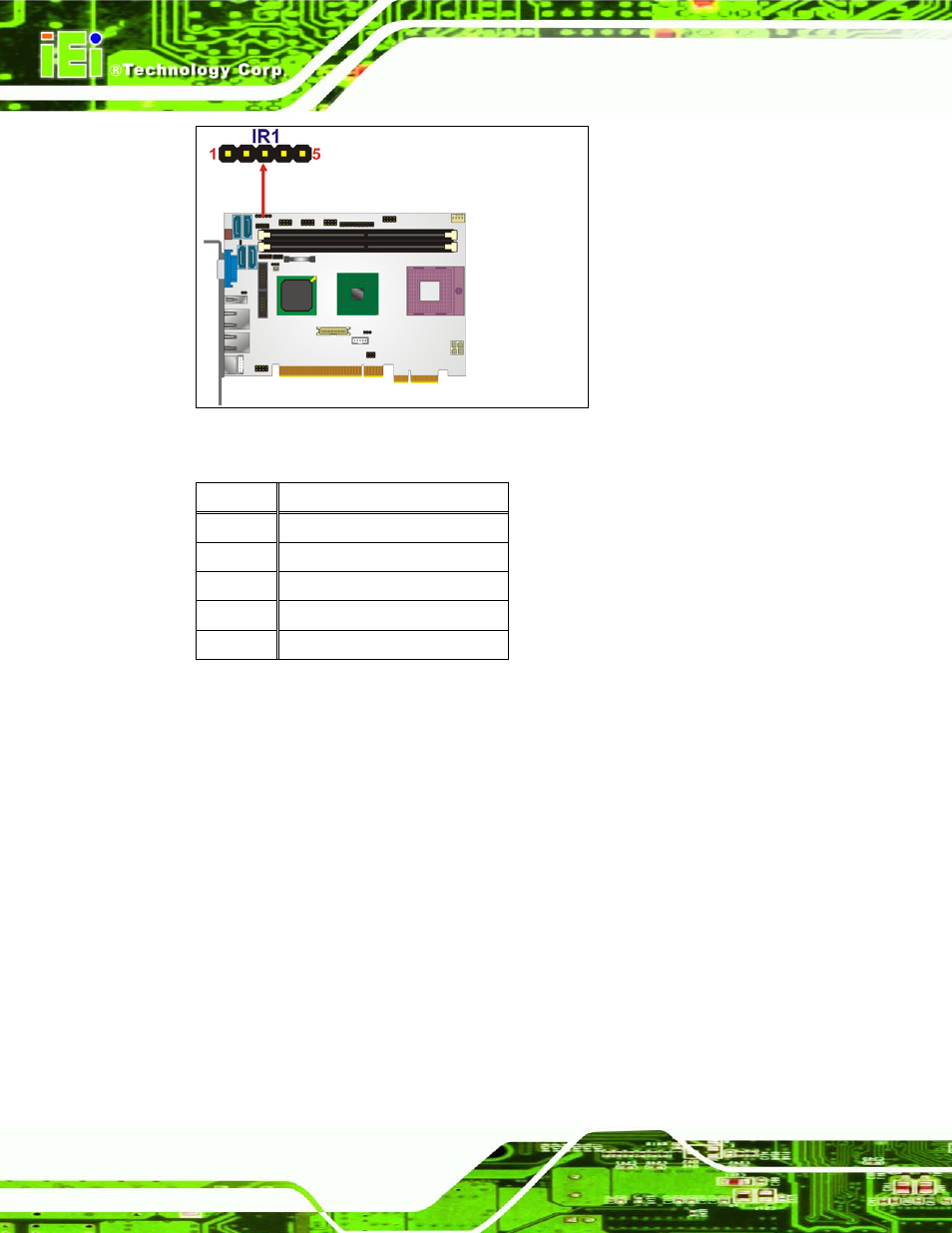

Figure 4-10: Infrared Connector Pinout Locations
PIN NO. DESCRIPTION
1 VCC
2 NC
3 IR-RX
4 GND
5 IR-TX
Table 4-10: Infrared Connector Pinouts
4.2.9 Keyboard/Mouse Connector
CN Label: KB_MS1
CN Type: 6-pin wafer (1x6)
CN Location: See
751H
Figure 4-11
CN Pinouts: See
752H
Table 4-11
The keyboard and mouse connector can be connected to a standard PS/2 cable or PS/2
Y-cable to add keyboard and mouse functionality to the system.
