PIN NO. DESCRIPTION PIN NO. DESCRIPTION
9 DATA7 22 GND
10 ACKNOWLEDGE# 23 GND
11 BUSY 24 GND
12 PAPER EMPTY 25 GND
13 PRINTER SELECT 26 NC
Table 4-13: Parallel Port Connector Pinouts
4.2.12 SATA Drive Connectors
CN Label: S_ATA1, S_ATA2, S_ATA3 and S_ATA4
CN Type: 7-pin SATA drive connectors
CN Location: See
793H757H
Figure 4-14
CN Pinouts: See
794H758H
Table 4-14
The four SATA II drive connectors are each connected to a SATA II drive. The SATA II
drives transfer data at speeds as high as 3.0 Gb/s.

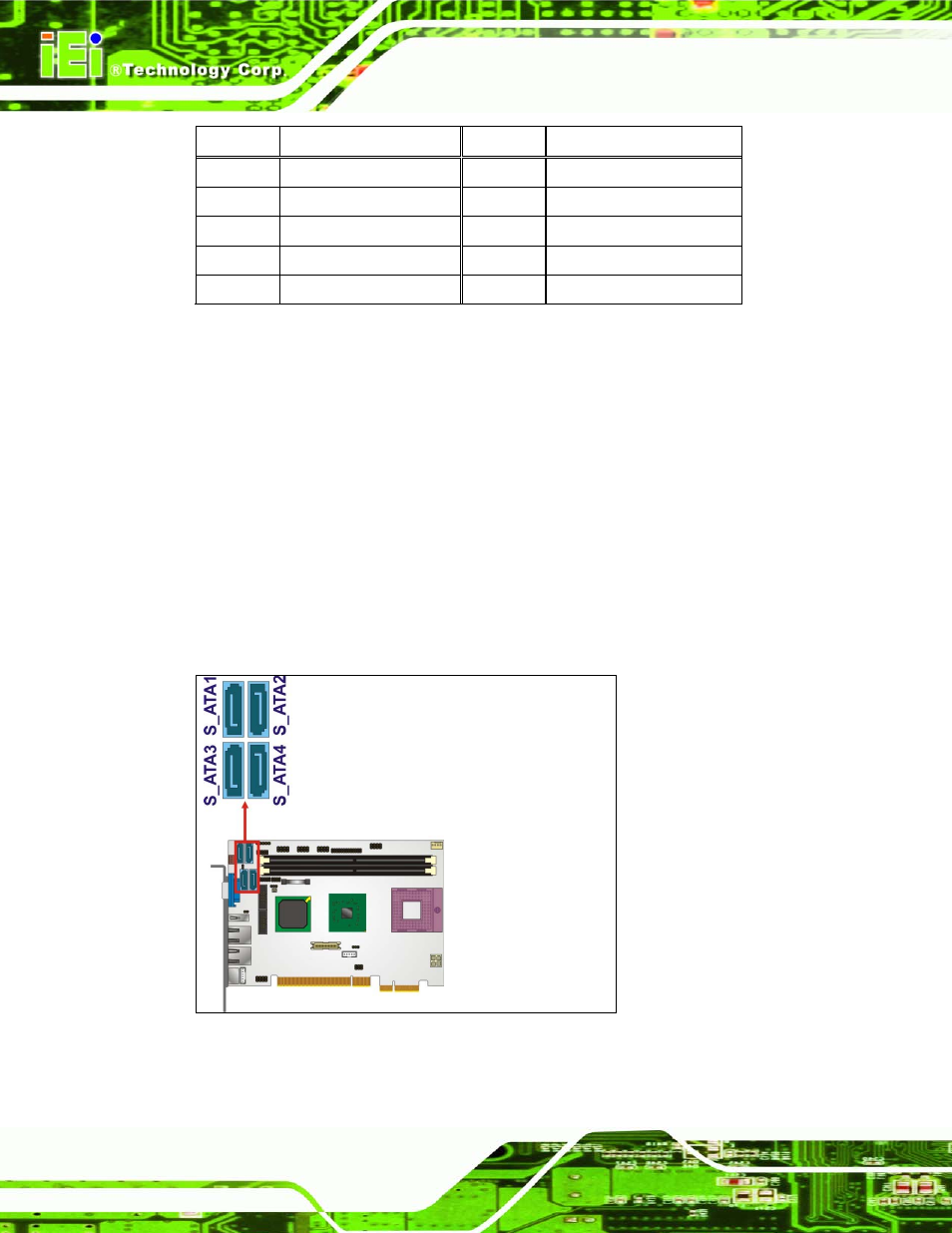

Figure 4-14: SATA Drive Connector Locations
