PICOe-GM45A Half-Size CPU Card

Page 75

4.3 External Peripheral Interface Connector Panel

803H769H

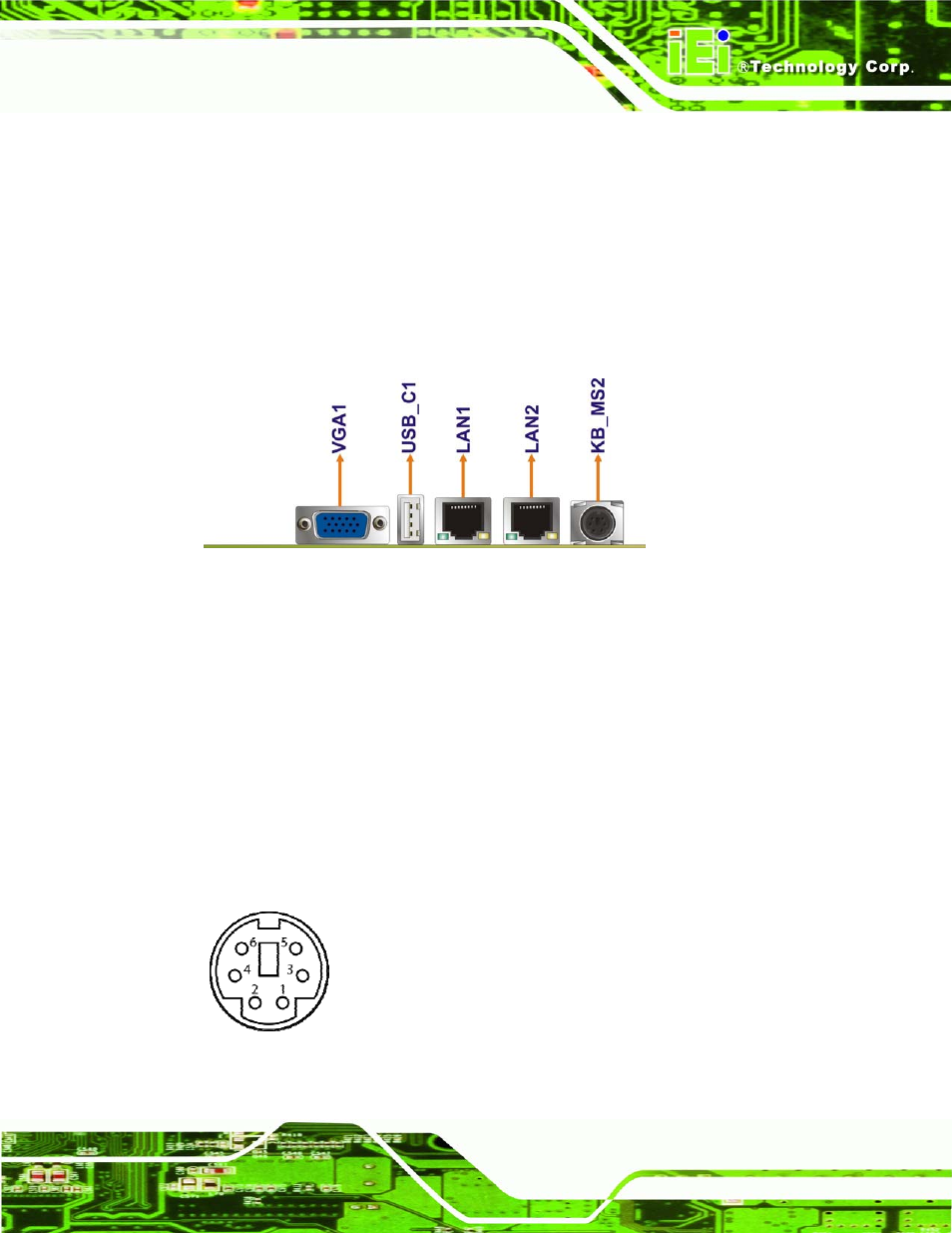

Figure 4-20 shows the PICOe-GM45A external peripheral interface connector (EPIC)

panel. The PICOe-GM45A EPIC panel consists of the following:

2 x RJ-45 LAN connectors

1 x PS/2 connector

1 x USB connector

1 x VGA connector

Figure 4-20: PICOe-GM45A External Peripheral Interface Connector

4.3.1 Keyboard/Mouse Connector

CN Label:

KB_MS2

CN Type:

PS/2

CN Location:

See

770H

Figure 4-20

CN Pinouts:

See

771H

Figure 4-21,

772H

Table 4-20

The PICOe-GM45A keyboard and mouse connector is a standard PS/2 connector.

Figure 4-21: PS/2 Pinout and Configuration
