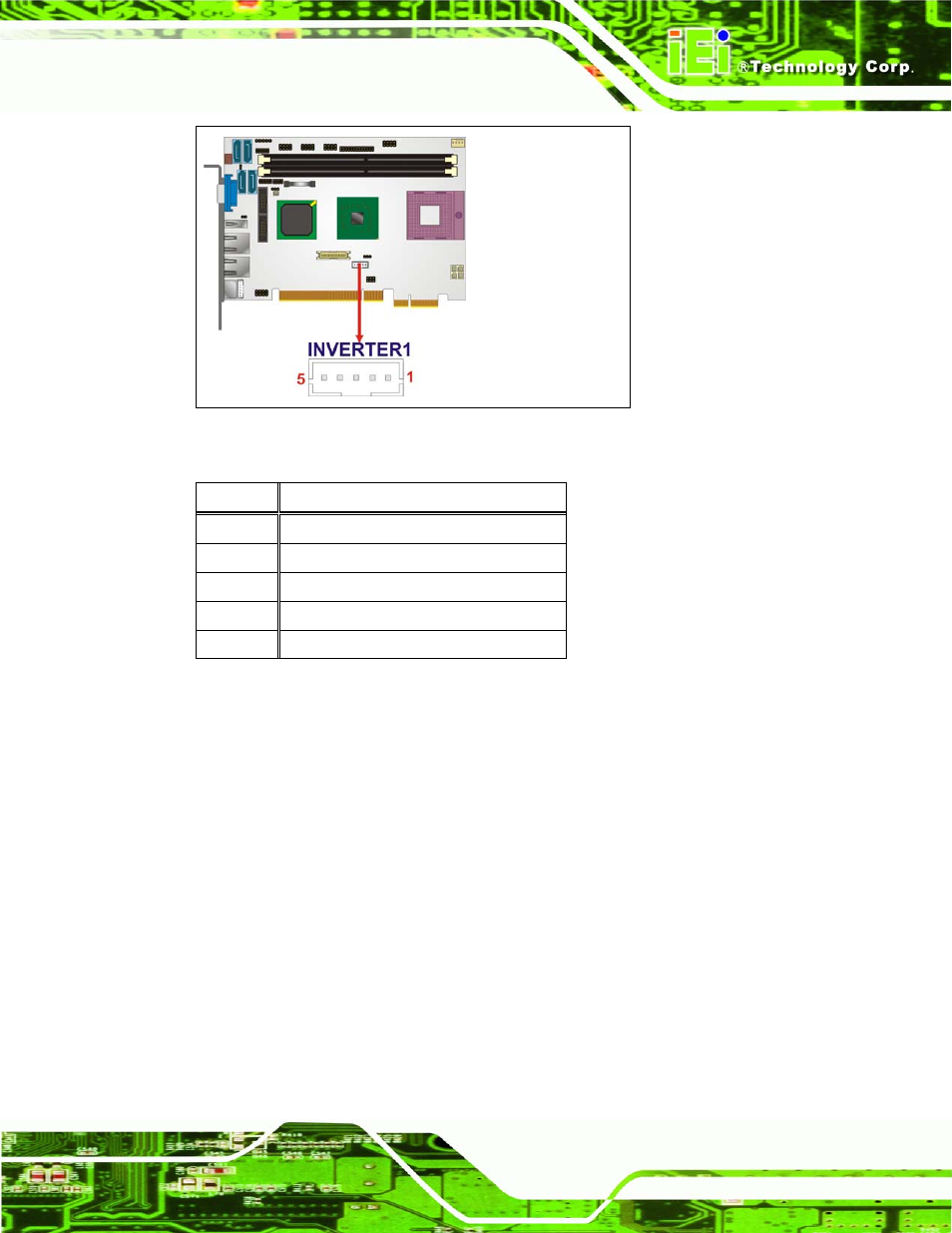

Figure 4-5: Panel Backlight Connector Pinout Locations

PIN NO.

DESCRIPTION

1 LCD

Backlight

Control

2 GROUND

3 +12V

4 GROUND

5 BACKLIGHT

Enable

Table 4-5: Panel Backlight Connector Pinouts

4.2.4 CPU 12V Power Connector

CN Label:

CPU12V1

CN Type:

4-pin headers (1x4)

CN Location:

See

741H

Figure 4-6

CN Pinouts:

See

742H

Table 4-6

The connector supports the 12V power supply.
