PICOe-GM45A Half-Size CPU Card
Page 70
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
1 DCD# 6 DSR#
2 RXD 7 RTS#
3 TXD 8 CTS#
4 DTR# 9 RI#
5 GND 10 NC
Table 4-15: COM Connector Pinouts
4.2.14 SDVO Connector
CN Label: SDVO1
CN Type: 47-pin connector (1x47)
CN Location: See
761H
Figure 4-12
CN Pinouts: See
762H
Table 4-12
The 47-pin SDVO (Serial Digital Video Out) connector supports additional video signaling
interfaces.

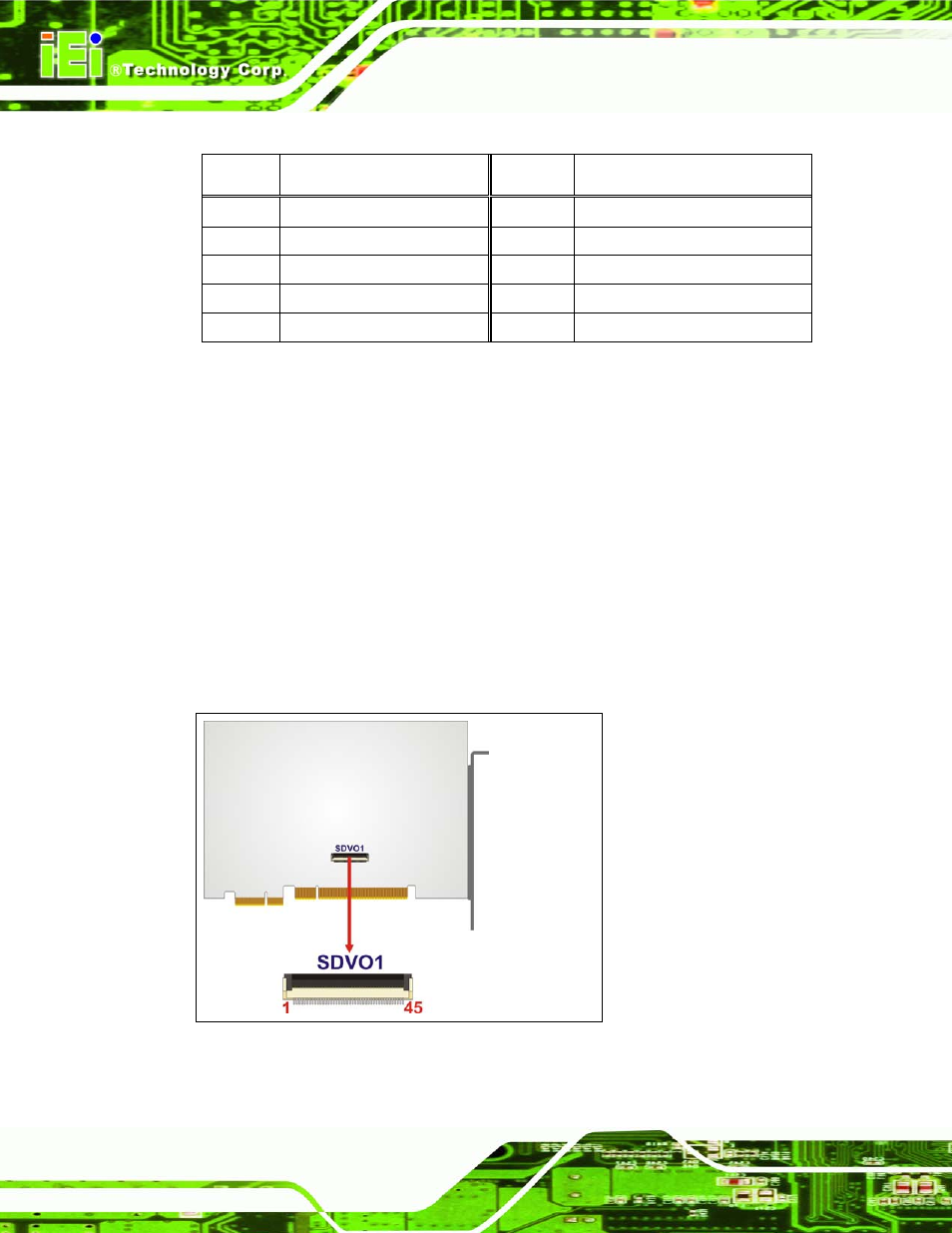

Figure 4-16: SDVO Connector Pinout Locations
