PICOe-GM45A Half-Size CPU Card

Page 108

insert the male connector from the VGA screen into the female connector on the

PICOe-GM45A. See

863H822H

Figure 5-21.

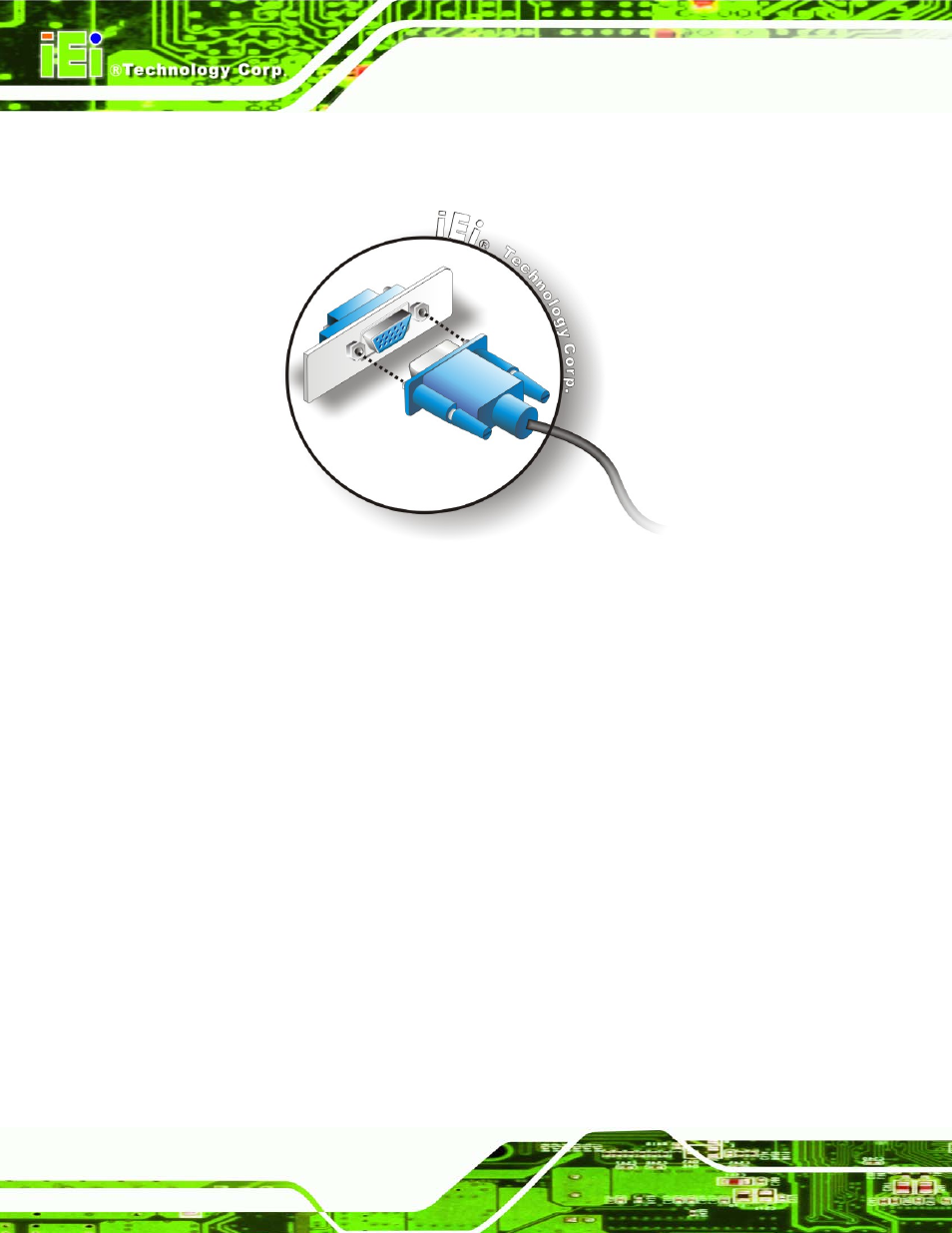

Figure 5-21: VGA Connector

Step 4:

Secure the connector. Secure the DB-15 VGA connector from the VGA

monitor to the external interface by tightening the two retention screws on either

side of the connector.

Step 0:
