Step 5:

Align the CPU pins. Carefully align the CPU pins with the holes in the CPU

socket.

Step 6:

Insert the CPU. Gently insert the CPU into the socket. If the CPU pins are

properly aligned, the CPU should slide into the CPU socket smoothly.

Step 7:

Lock the retention screw. Rotate the retention screw into the locked position.

See

783H

Figure 5-2.

Step 0:

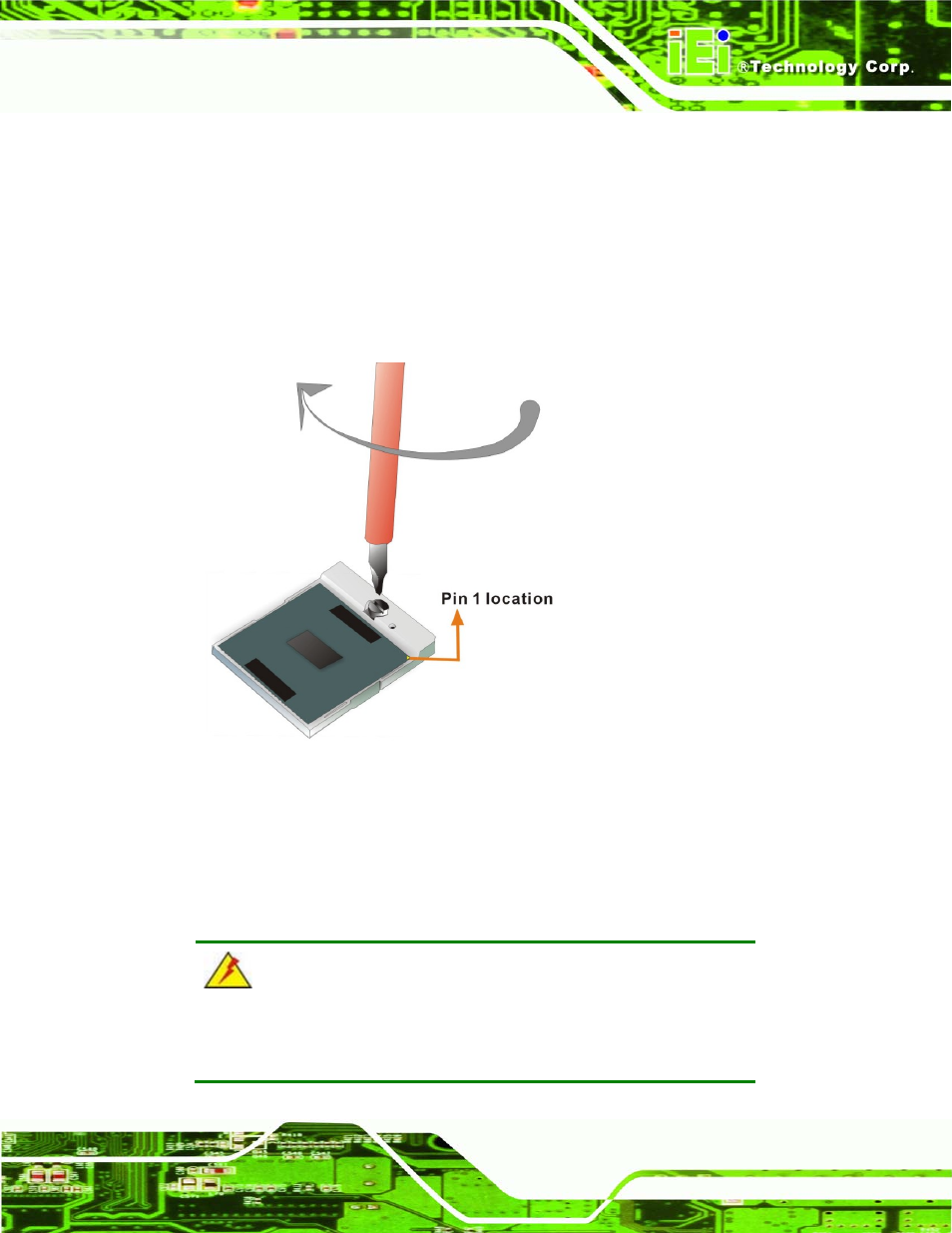

Figure 5-2: Lock the CPU Socket Retention Screw

5.4.2 Socket P Cooling Kit Installation

An IEI Socket P CPU cooling kit can be purchased separately. (See Chapter 3) The

cooling kit comprises a CPU heat sink and a cooling fan.

WARNING:

Do not wipe off (accidentally or otherwise) the pre-sprayed layer of

thermal paste on the bottom of the [Fan model#] heat sink. The thermal
