IEI Integration PICOe-GM45A - Manual (Page 21)

PICOe-GM45A Half-Size CPU Card
Page 21
1.2 PICOe-GM45A Overview
1.2.1 PICOe-GM45A Overview Photo
The PICOe-GM45A has a wide variety of peripheral interface connectors.
746H707H

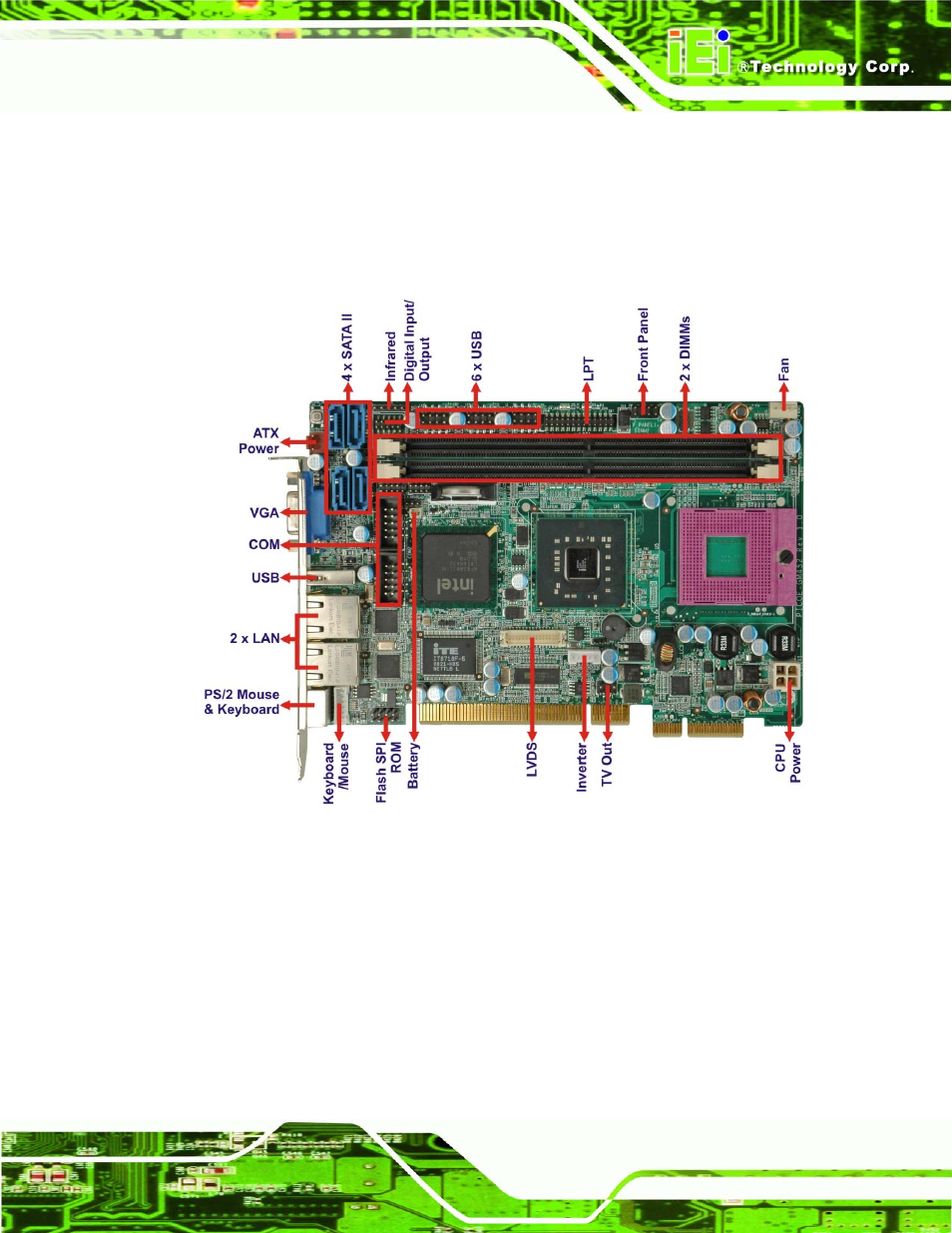

Figure 1-2 is a
labeled photo of the peripheral interface connectors on the PICOe-GM45A.
Figure 1-2: PICOe-GM45A Overview [Front View]
708H
Figure 1-3 shows the rear side of the PICOe-GM45A.
