PICOe-GM45A Half-Size CPU Card
Page 131
6.3.5.1 AHCI Port n
Use the AHCI Port n configuration menu (
842H
BIOS Menu 9) to configure the drive connected
to SATA connector n.

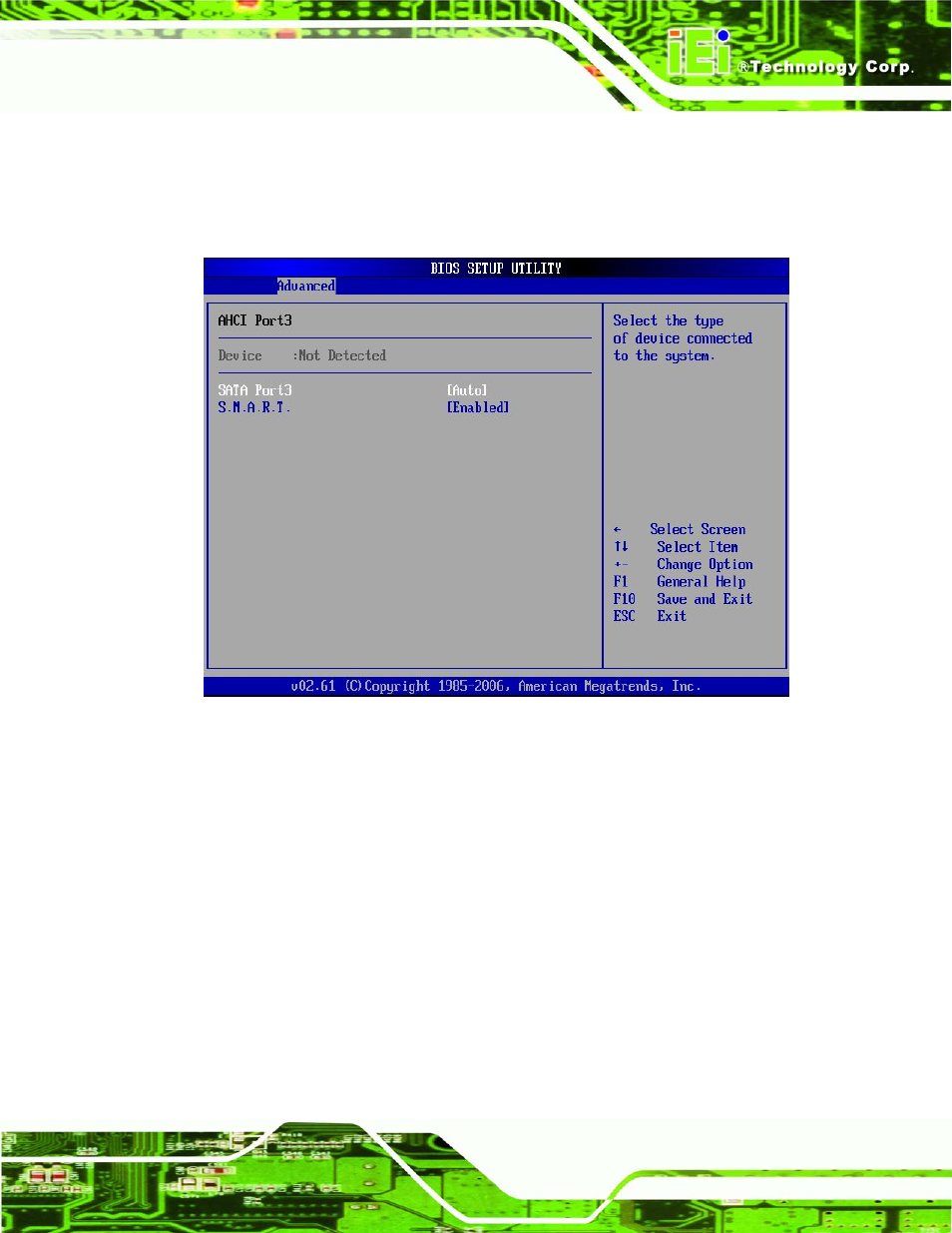

BIOS Menu 9: AHCI Port n Configuration Menu
SATA Port n [Auto]
Use the SATA Port n option to enable the system to auto-detect the type of drive
connected to SATA drive connector n.
S.M.A.R.T [Enabled]
Use the S.M.A.R.T option to enable S.M.A.R.T (Self-Monitoring, Analysis, and Reporting
Technology) on the drive connected to SATA drive connector n.
Enabled D EFAULT S.M.A.R.T is enabled on the drive connected to SATA
drive connector n on the system
