Discharging capacitor, Capacitor discharging -28 – ZOLL R Series Monitor Defibrillator Rev J User Manual
Page 94
R Series Service Manual
3-28
9650-0903-01 Rev. J
Discharging Capacitor
WARNING! This unit may contain lethal voltages. You MUST completely discharge the high voltage capacitor before removing from unit. DO NOT SHORT
THE TERMINAL ENDS OF THE CAPACITOR.

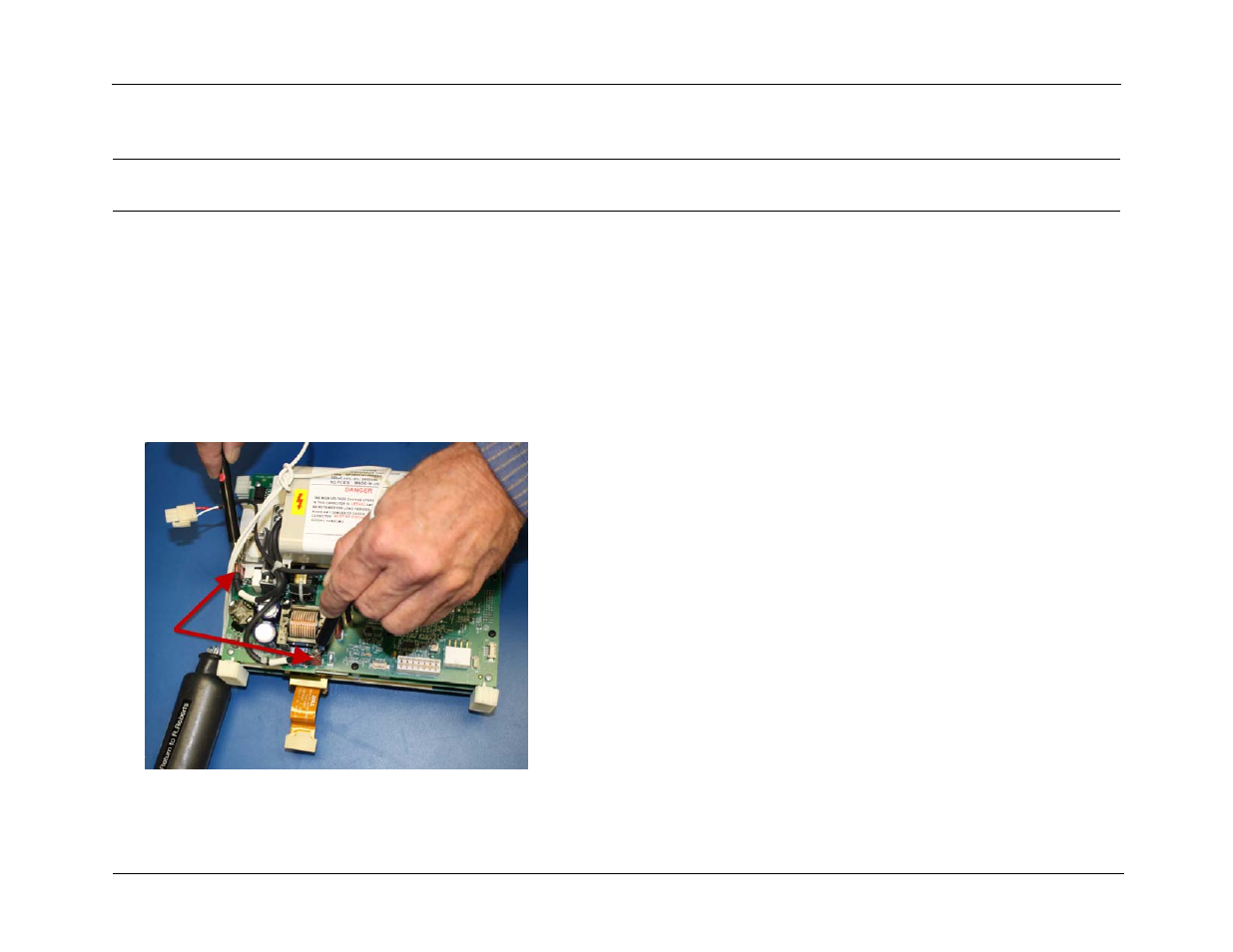

1. While capacitor is connected to the PD Engine
assembly, discharge the capacitor by bleeding out
the excess voltage using a resistor with values of
approximately 5 kohms, 25 watts for 10-20 seconds.
Apply the resistor across the terminals on the board.
Measure the voltage on the capacitor terminals to
verify that capacitor is discharged.
