ZOLL R Series Monitor Defibrillator Rev J User Manual
Page 21
R Series Service Manual
9650-0903-01 Rev. J
1-
11

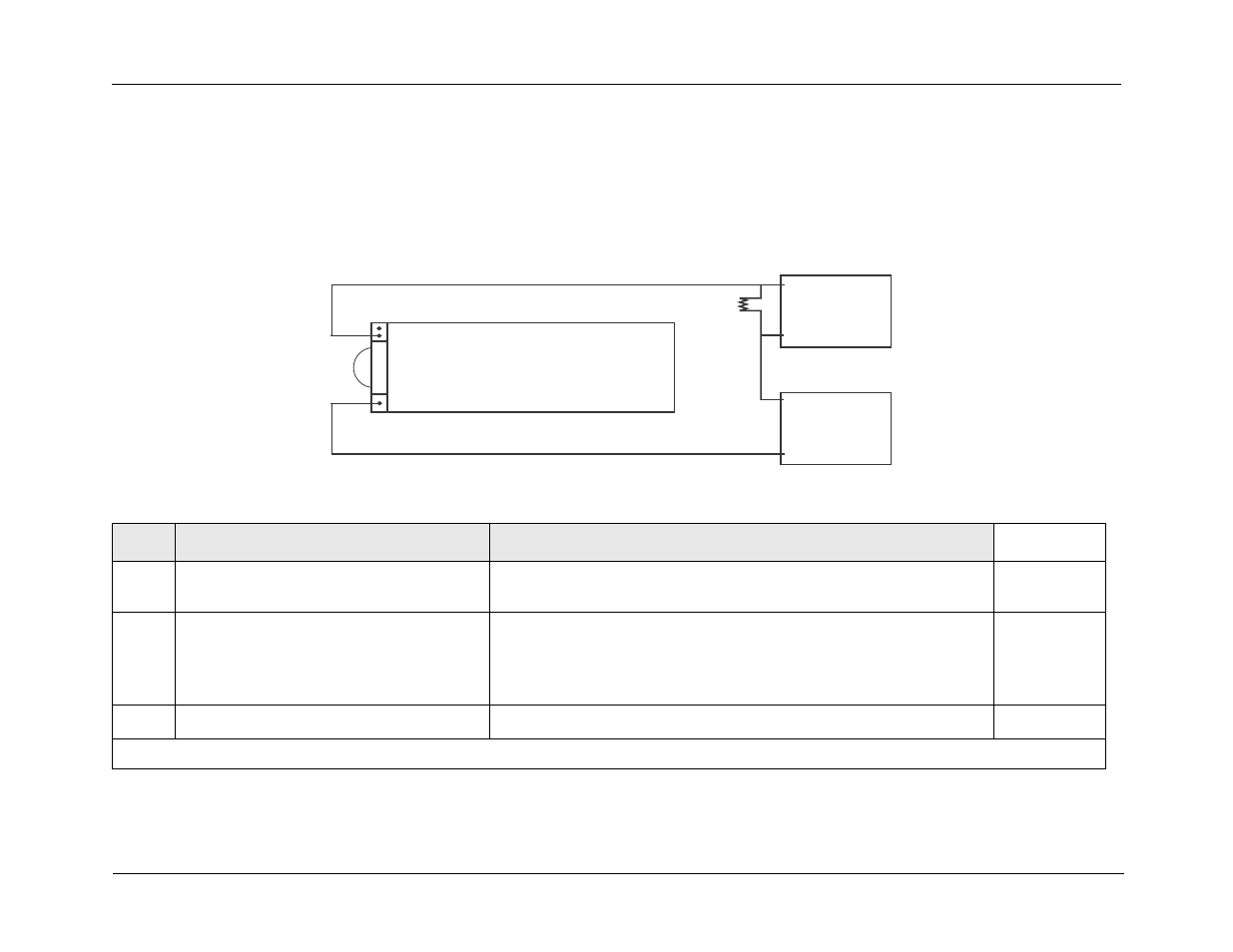

Test Setup:
1. Remove red lead from power supply and connect to 0.1
resistor
.
2.
Connect other end of resistor to “+” terminal of power supply using a second red lead.
3.
Connect multimeter across the resistor.
4.
Set voltage scale (if DVM is not autoranging) to 220 mV.
Do this...
Observe this...
Pass/Fail/NA
4.7
System Current Test
Set power supply to 10.8V.
4.8
Turn the selector switch to MONITOR.
Voltage across resistor should be 145 mV or less (<1.2A of ON current).
NOTE: Without optional parameters.
All devices with SpO
2
, EtCO
2
or NIBP <160mV
o
o
o
o
o
o
4.9
Turn unit off.
Record your results on the Maintenance Test Checklist.
15 Amp
Supply
?
DMM
?
?
Battery Well
Red
Black
