R Series Service Manual

3-6

9650-0903-01 Rev. J

Removing the Handle

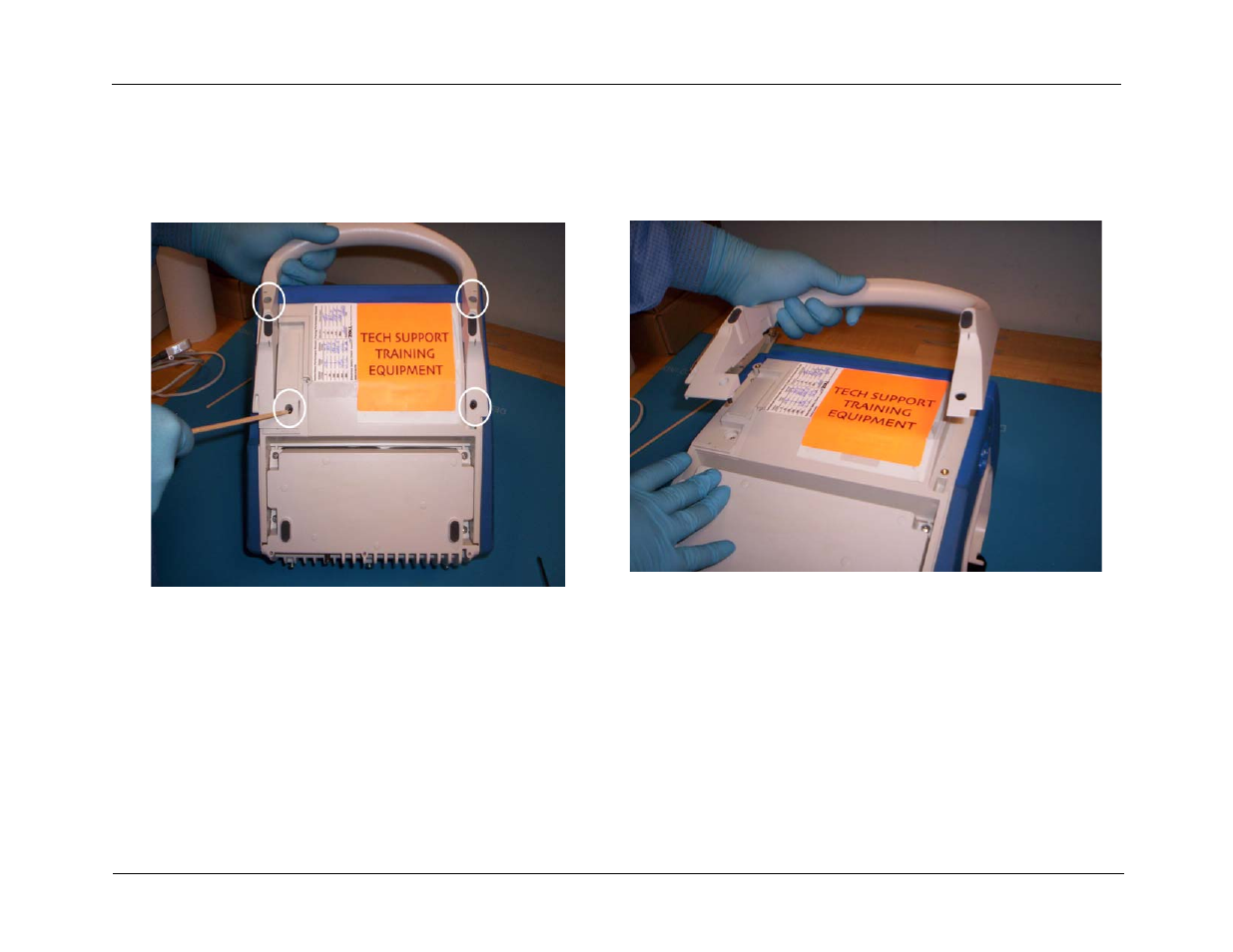

1. Remove the 4 hex screws securing the handle.

2. Lift the handle to remove.

Note:

During reassembly, torque to 10 in-lbs.
