ZOLL R Series Monitor Defibrillator Rev J User Manual
Page 215
AED Operation
9650-0904-01 Rev. K
ZOLL R Series Operator’s Guide
3–3

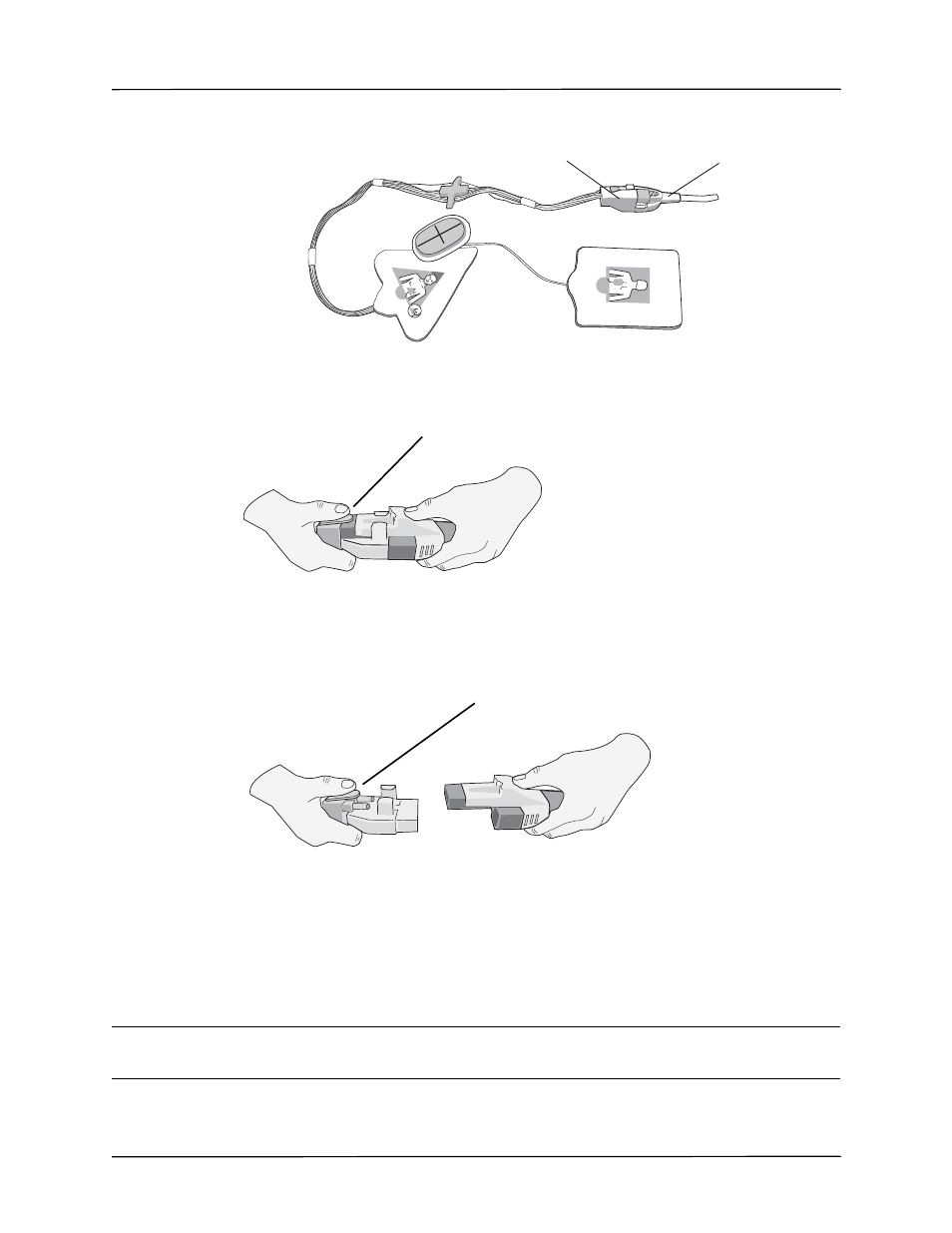

Connect the hands-free therapy electrodes to the OneStep cable if not already connected.
When connecting a OneStep electrode to the OneStep cable, push the two connectors together
until the latch clicks, as shown.
When disconnecting the OneStep electrode and OneStep cable, press down the latch with your
thumb as shown.
The message ATTACH PADS or CHECK PADS will be displayed and energy will not be
delivered if the therapy electrodes are not making good contact with the patient or if a short
circuit exists between the therapy electrodes.
Therapy Electrode Application
WARNING!
Poor adherence and/or air under the therapy electrodes can lead to the possibility of
arcing and skin burns.
1. Apply one edge of the pad securely to the patient.
2
1
OneStep cable
hands-free therapy electrodes connector
Latch
Latch
