Removing the recorder, ac charger and battery well – ZOLL R Series Monitor Defibrillator Rev J User Manual
Page 73
R Series Service Manual
9650-0903-01 Rev. J
3-7
Removing the Recorder,
AC Charger and Battery Well

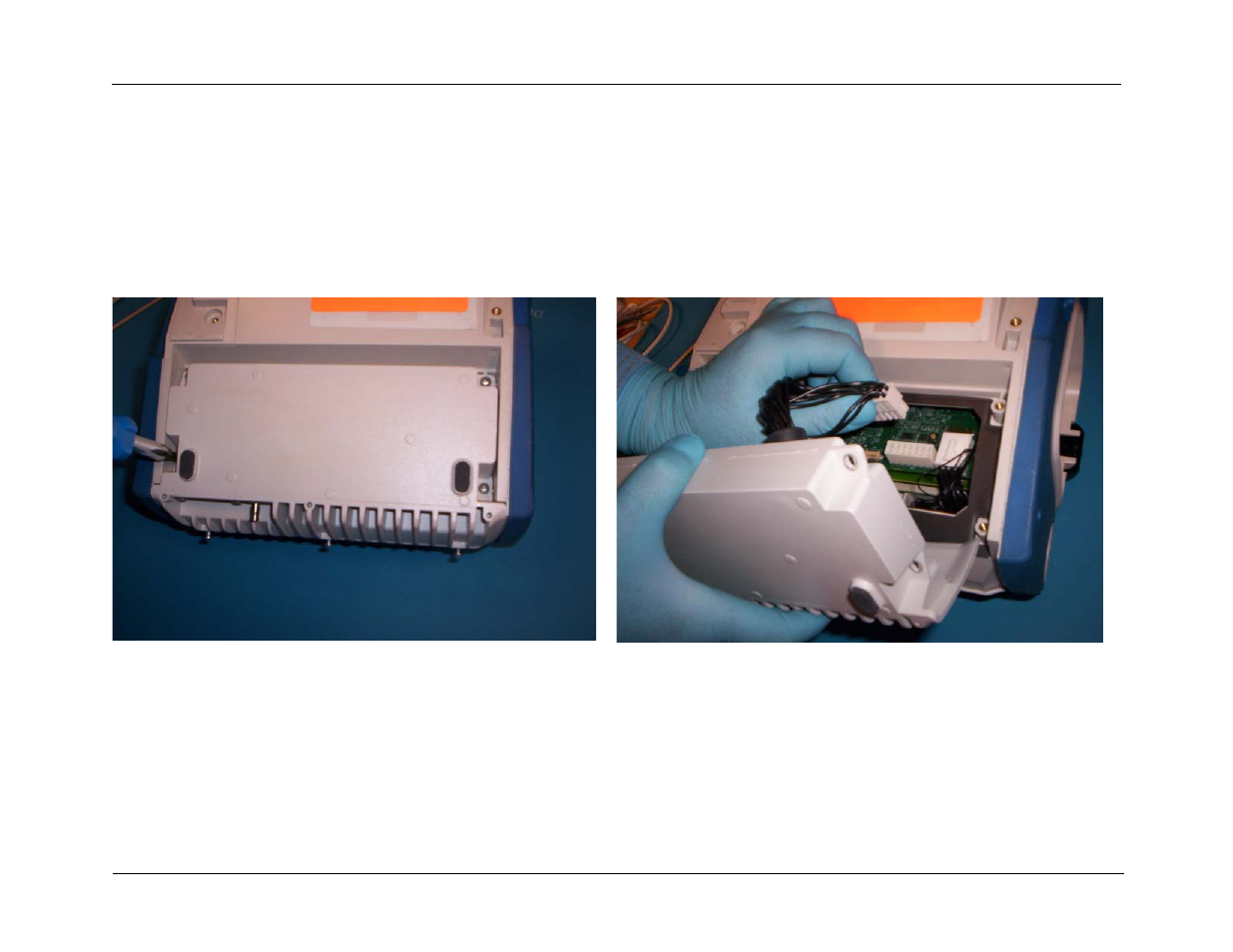

1. Using a #2 Philips screwdriver, remove the 4
screws securing the AC Charger Assembly.
2. Remove the AC Charger assembly from the chassis by
lifting straight up. Unplug the cable from the charger to the
PD Engine as shown.
Note:
During reassembly, torque to 10 in-lbs.
