Patient Alarm Display
9650-0805-01 Rev. A
Propaq MD Operator’s Guide
5-3
Patient Alarm Display
When a patient’s vital signs measurements trigger an alarm, in addition to sounding the patient
alarm, the Propaq MD unit displays an alarm message, and changes the display characteristics
of the monitoring function’s numeric display (the alarming parameter appears in red against a
white background).

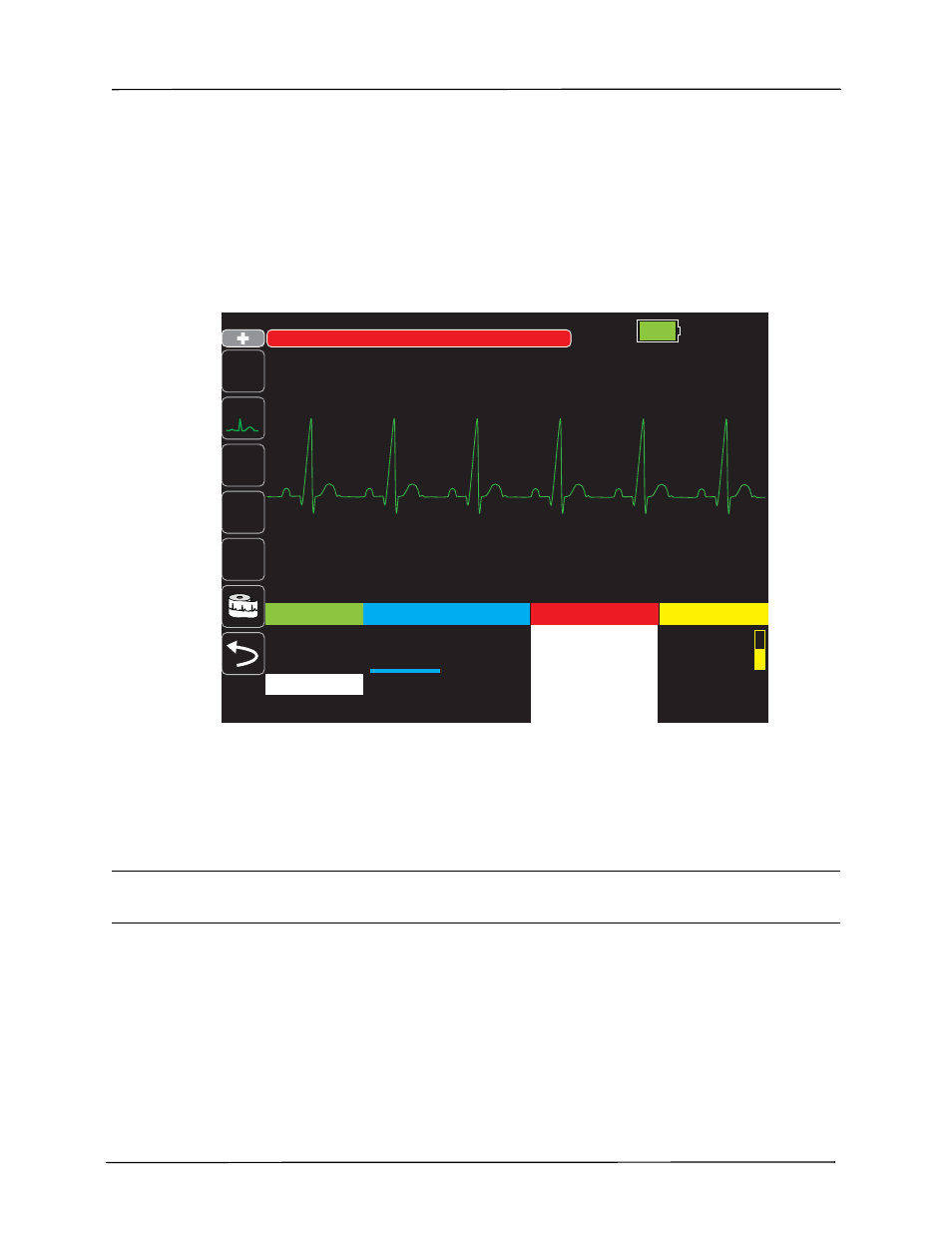

In the following example, the EtCO
2
measurement (
22
mmHg) has dropped below the lower
alarm limit (
EtCO2 Low Alarm
):
Equipment Alert Display
When a problem with the Propaq MD unit or an attached sensor triggers an alert, in addition to
sounding an equipment alert, the Propaq MD unit displays an alert message (yellow
background, black text).
Warning!
Always respond immediately to a system alarm since the patient may not be monitored
during certain alert conditions.
