ZOLL Propaq MD Rev A User Manual
Page 46
C
HAPTER
2
P
RODUCT
O
VERVIEW
2–10
www.zoll.com
9650-0805-01 Rev. A

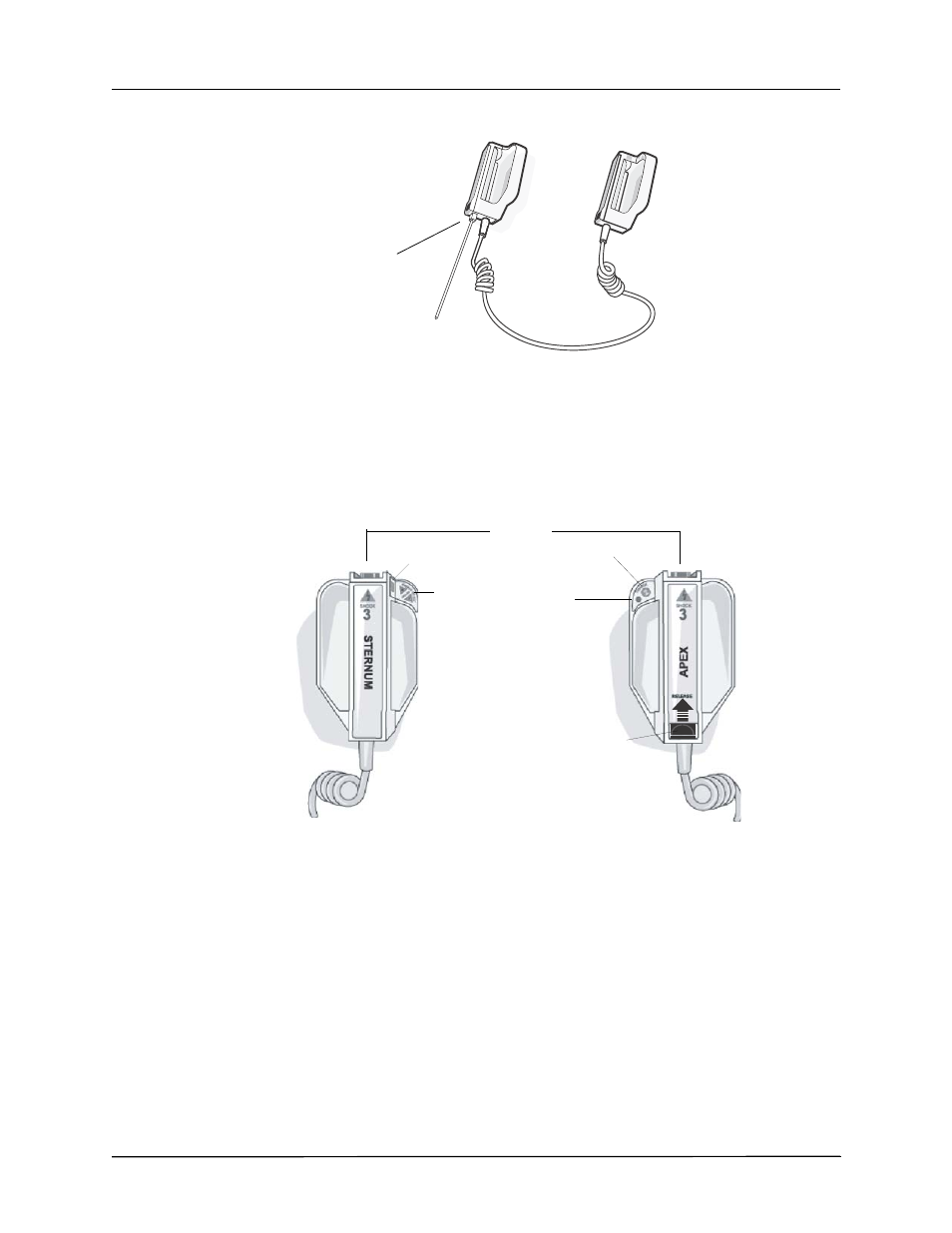

Figure 2-7.
MFC Connected to APEX Paddle
If you need to detach the MFC from the APEX paddles, push the RELEASE button (see Figure
2-8) in the direction of the arrow and unplug the MFC.
Refer to Chapter 14, “Manual Defibrillation” before using paddles for defibrillation. The
paddles include controls for selecting defibrillation energy, charging, and delivering a shock.
Figure 2-8.
External Paddles
MFC connected to
APEX paddle
MFC Connected to
APEX Paddle
SHOCK
Buttons
ENERGY
SELECT
Buttons
CHARGE
Button
Charge Ready
Indicator
STERNUM Paddle
APEX Paddle
Connector
and RELEASE
button for
MFC
RECORDER
Button
