C HAPTER 2 P RODUCT O VERVIEW
2–2 www.zoll.com 9650-0805-01 Rev. A
The Front Panel
The front panel of the Propaq MD device includes the display screen, quick access keys, battery
and auxiliary power indicators, Ready For Use (RFU) indicator, and the defibrillation front
panel buttons: Pacer, Sync, Select Energy, Charge, and Shock (
). See Figure 2-1. Refer to
Table 2-2 on page 2-3 for information about the controls and indicators.

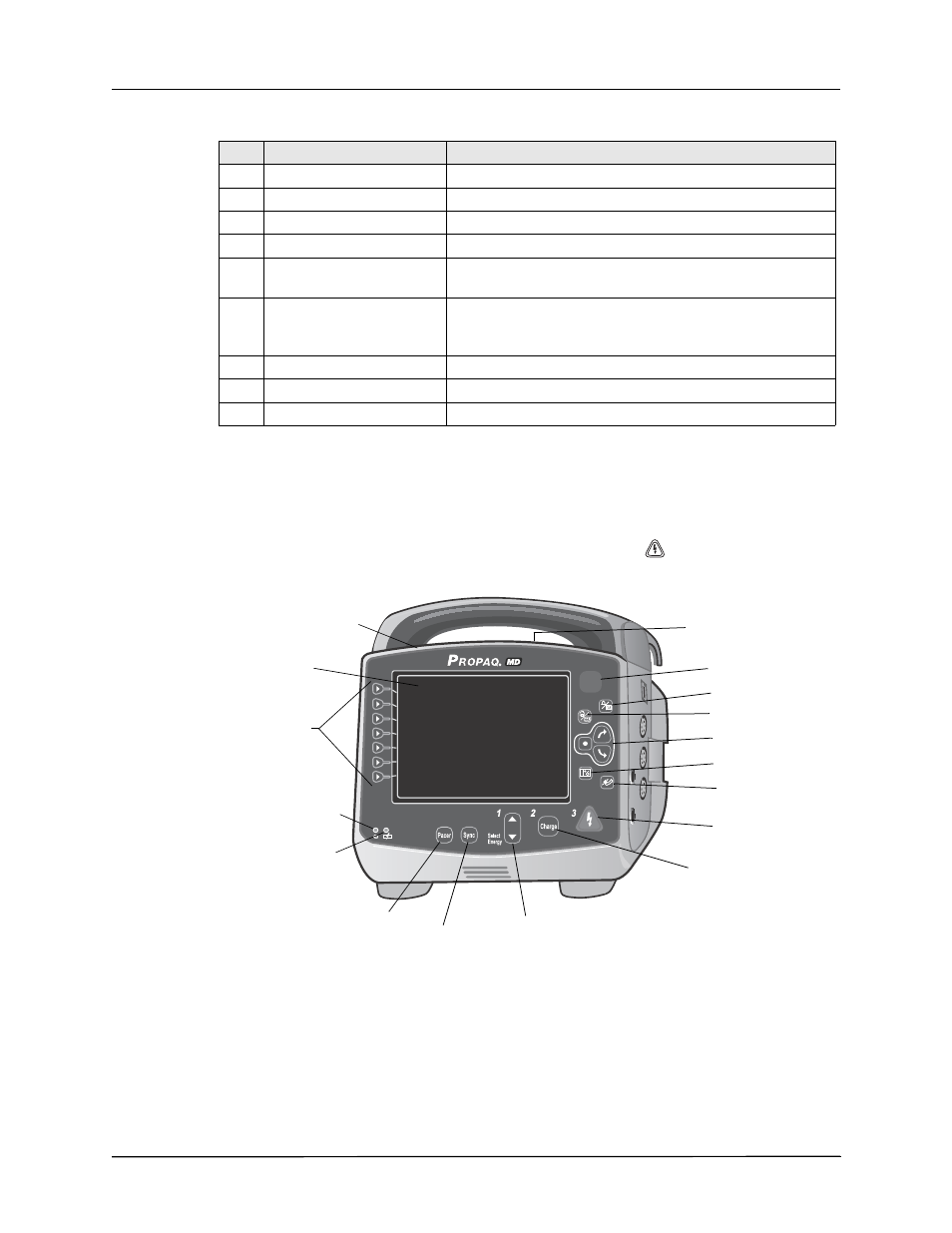

Figure 2-1. Propaq MD Front Panel
Table 2-1. Propaq Unit Features
Item Description
1 Handle Integrated carrying handle.
2 Front panel Includes the display screen and primary controls.
3 Speaker Emits R-wave detection beeps and alarm tones.
4 Paper Compartment Holds the paper for the printer.
5 Patient connectors For details, refer to “Patient Cables and Connectors” on
page 2-7.
6 USB device connector For connecting the Propaq defibrillator to a USB device. For
details, refer to “Transferring Data to a USB Device” on
page 16-3“.
7 Battery compartment Holds a rechargeable lithium ion battery pack.
8 Auxiliary power connector For connecting the device to an auxiliary power adapter.
9 Dock connector For connecting the device to a docking station.
Seven quick
Display screen RFU indicator
Auxiliary power LED
Battery charge LED
Silence/reset
Display
Navigation keys
Snapshot
NIBP
Shock
Charge
Pacer
Sync
Select Energy
access keys
Power button
Visual Alarm Indicators
