Configuring the Waveform Display
9650-0805-01 Rev. A Propaq MD Operator’s Guide 3-7
Configuring the Waveform Display
You can display up to four waveform traces on the Waveform Display window. The first
waveform trace always uses an ECG lead as its source (such
Pads or Leads l , ll , or lll , and so
on). As you insert the remaining three traces, you can specify that the traces use an ECG lead as
the waveform source, or that the trace derive its waveform from other available monitoring
functions (such as
Resp , CO2 , SpO2 or IBP channels P1 , P2 , or P3 ).
The Propaq MD unit can also cascade a trace onto the adjoining trace area to double the
duration of the trace display.

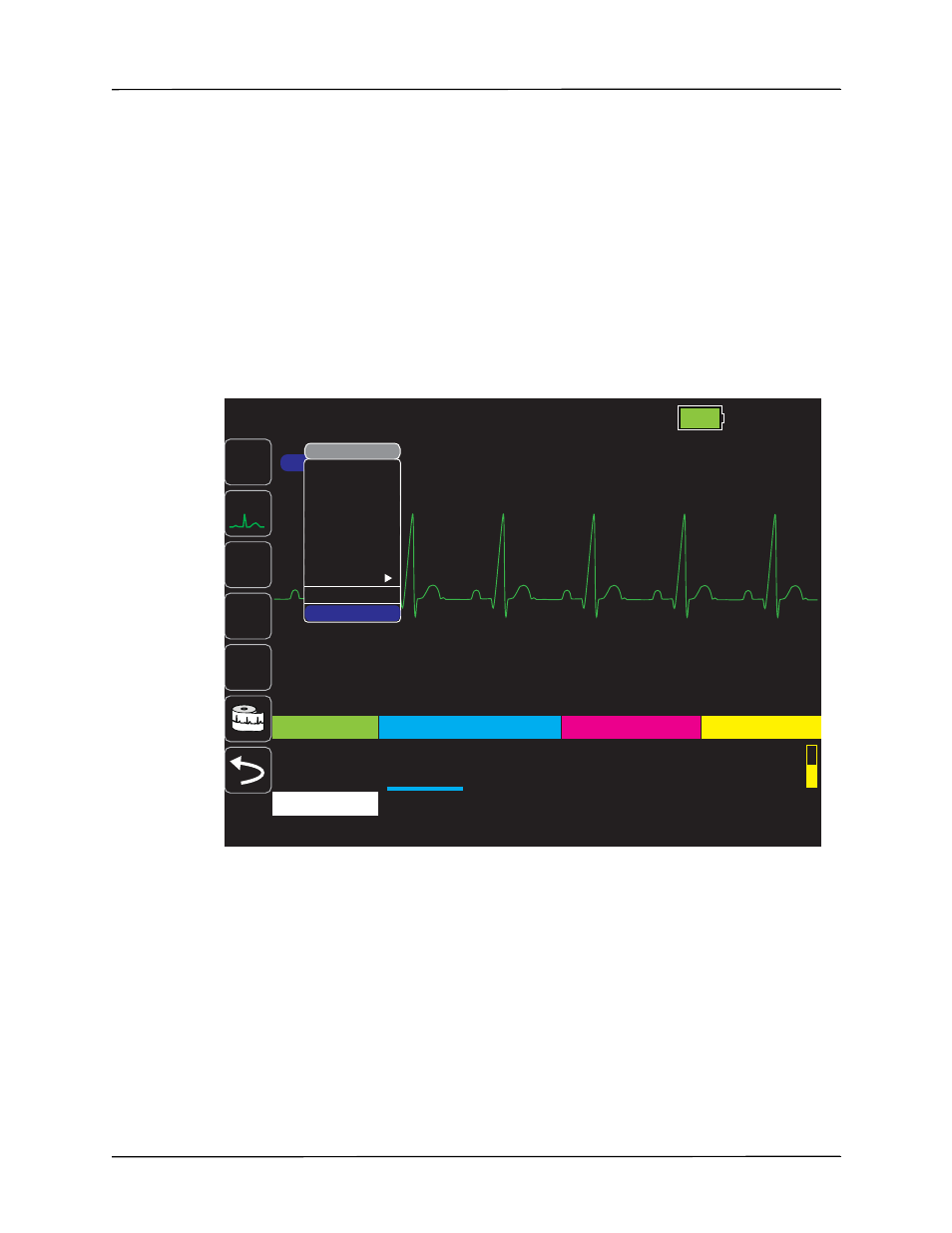

On the Waveform Display window, to insert a new trace ( Insert ) or cascade ( Cascade ) a
displayed trace, highlight and select the trace label above the trace. In the following example,
the unit is configured to cascade the ECG Lead l trace:
Note: The Propaq MD unit automatically inserts a new waveform when you turn on a
parameter (CO2) or a new sensor signal is present (SPO2, IBP). The Propaq MD unit
automatically removes a waveform when you turn off a parameter or remove a sensor
and the unit displays the resulting equipment alert.
03/23/2009 12:34:56 Adult
00:17:43
I, II,
III...
IBP
12
CO2
Analyze
1 cm/mV II
HR bpm
80 121
79
(96)
NIBP mmHg
38
12 BR
CO2 mmHg SpO2 %
97
T1 ºF
98.6
Pads
III
aVL
aVF
V
Insert
Source
II
aVR
I
Cascade
