Displaying trend information – ZOLL Propaq M Rev B User Manual
Page 54
C
HAPTER
4 T
RENDS
4-2
www.zoll.com
9650-000820-01 Rev. B

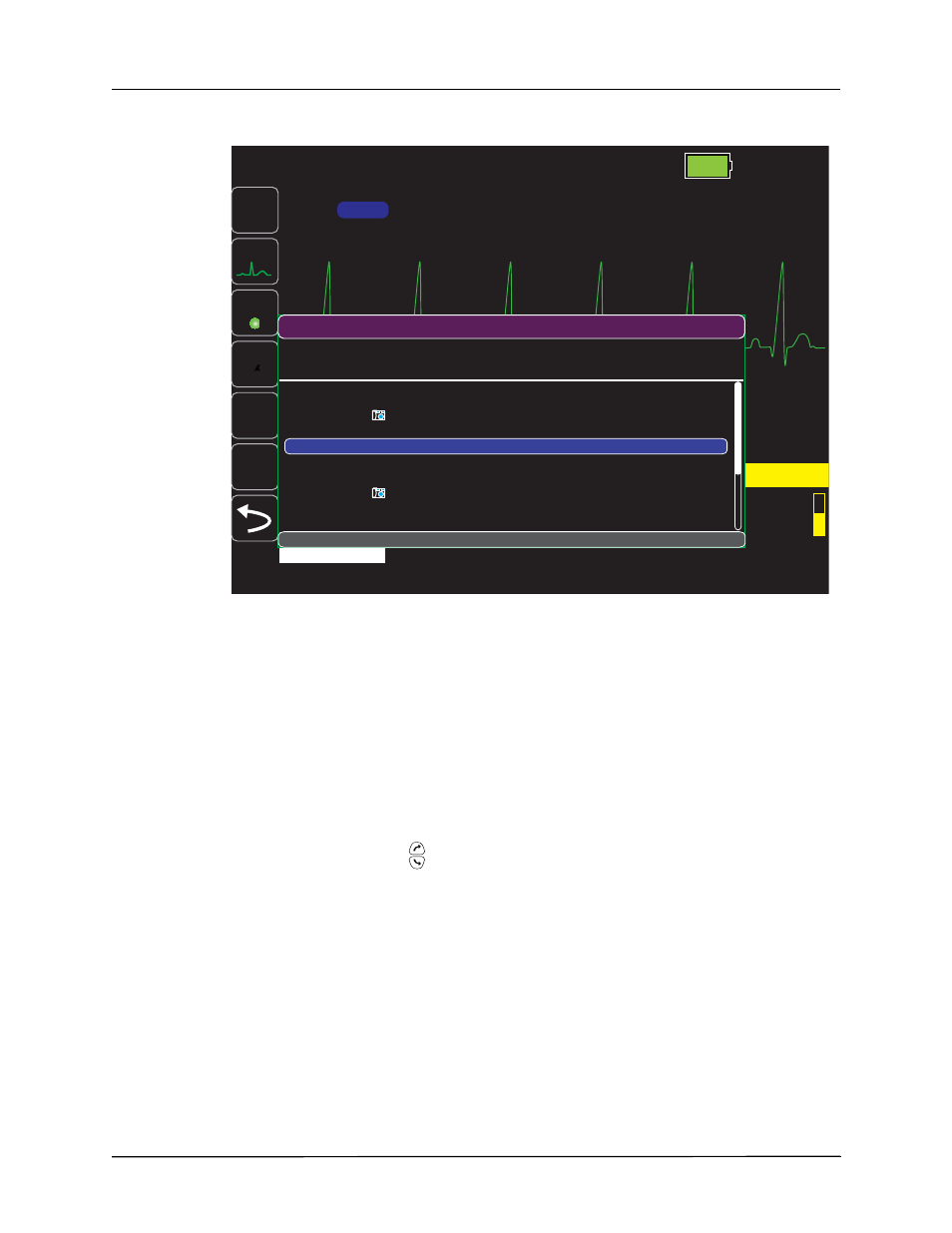

Figure 4-1 Trends Status window
The Trends status window displays the logged trend information and the time at which the trend
measurements were logged. While trend measurements are logged to memory at a 30-second
interval, the Trends status window can display the logged information at an interval that you
specify, with the exception of NIBP measurements, which are logged and reported at the times
they are taken. The Trends status window reports the trends information at 5-minute intervals.
Displaying Trend Information
To navigate in the Trends status window, highlight the
Navigate Here to Scroll Through Trends
bar, then press Select.
Press the Up/Down buttons (
) to scroll through the trend information.
Navigate Here to Scroll Through Trends
06/06/2012 12:34:56
Adult
00:17:43
I, II,
III...
12
CO
2
IBP
1 cm/mV
II
HR bpm
80
121
79
(96)
NIBP mmHg
38
12
BR
CO2 mmHg SpO2 %
97
T1 ºF
98.6
NIBP Trends
Time
HR/PR
bpm
NIBP
mmHg
SpO2
%
RR/BR
br/min
12:20:21
81
122/60 (85)
15
97
12:15:21
73
124/63 (86)
13
97
Navigate Here to Scroll Through Trends
12:30:21
72
122/60 (85)
12
97
12:25:21
