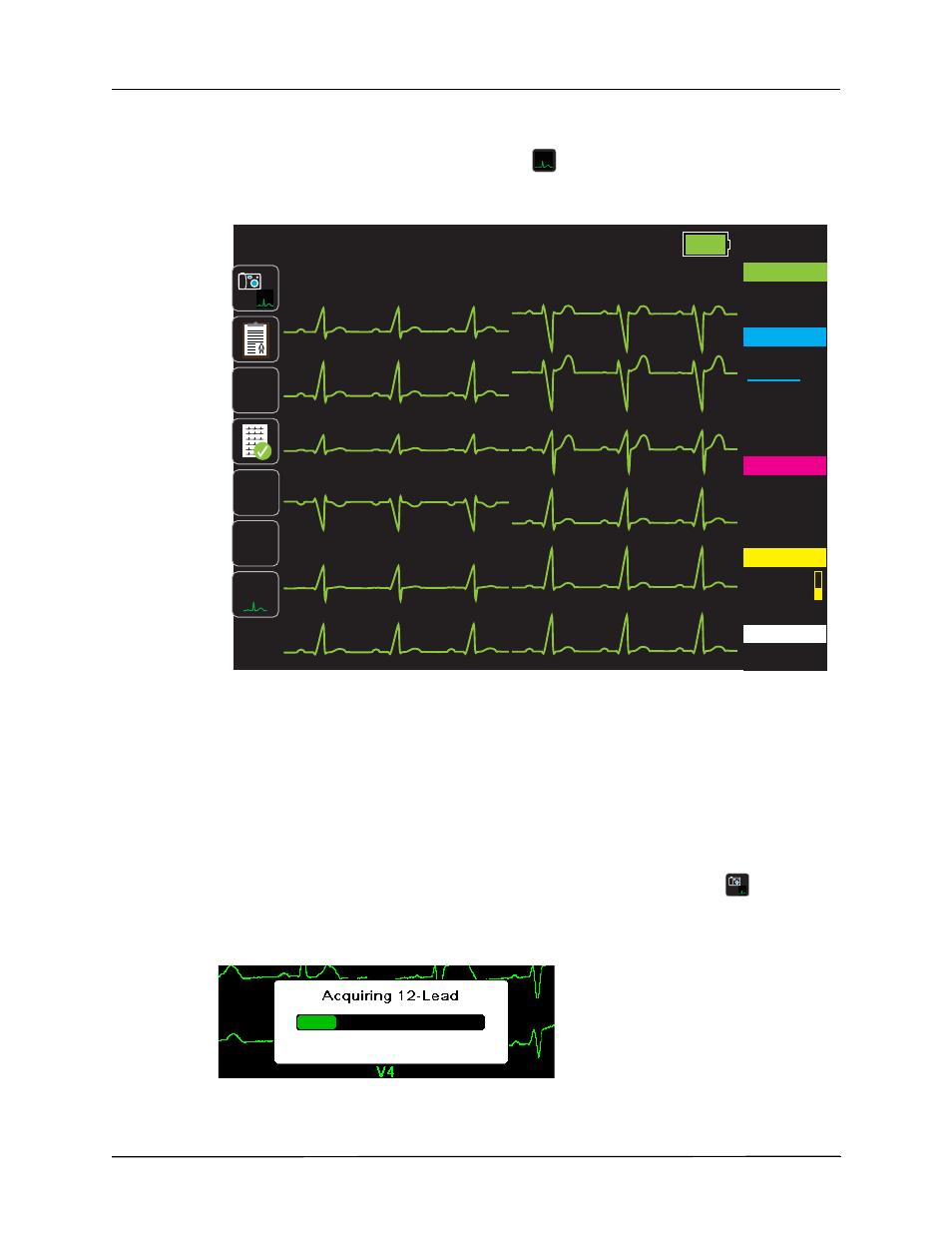

Observing the 12-Lead Waveform Traces
To observe the 12-Lead waveform traces, press
. The screen displays all twelve waveform
traces, with the size displayed above the waveform traces:
12-Lead Interpretive Analysis
After observing the patient’s ECG and determining that all 12-lead traces display correctly, you
can initiate 12-Lead Interpretive Analysis (12-Lead Interpretive Analysis must be enabled
through the Supervisor Menu).
Note:
12-Lead Interpretive Analysis works for only Adult patients.
To begin 12-Lead Interpretive Analysis, press the Acquire
quick access key (
). The
Propaq M unit displays the Acquiring 12-Lead Status bar as it collects 10 seconds of 12-Lead
ECG data:
12
06/06/2012
Adult
00:17:43
12
Exit
V6
V5
V4
V3
V2
V1
aVF
aVL
aVR
III
II
1 mV/cm
I
12
HR bpm
80
NIBP mmHg
121
79
(96)
EtCO2 mmHg
12
BR
38
SpO2 %
97
SpMet 20.0
T1 ºF
98.6
12
