Navigating the Display Screen
9650-000820-01 Rev. B
Propaq M Operator’s Guide
2–9
Navigating the Display Screen
You can access the Propaq M functions using the quick access keys that are located on the left
side of the display screen, and the navigation keys that are located on the right side of the front
panel.

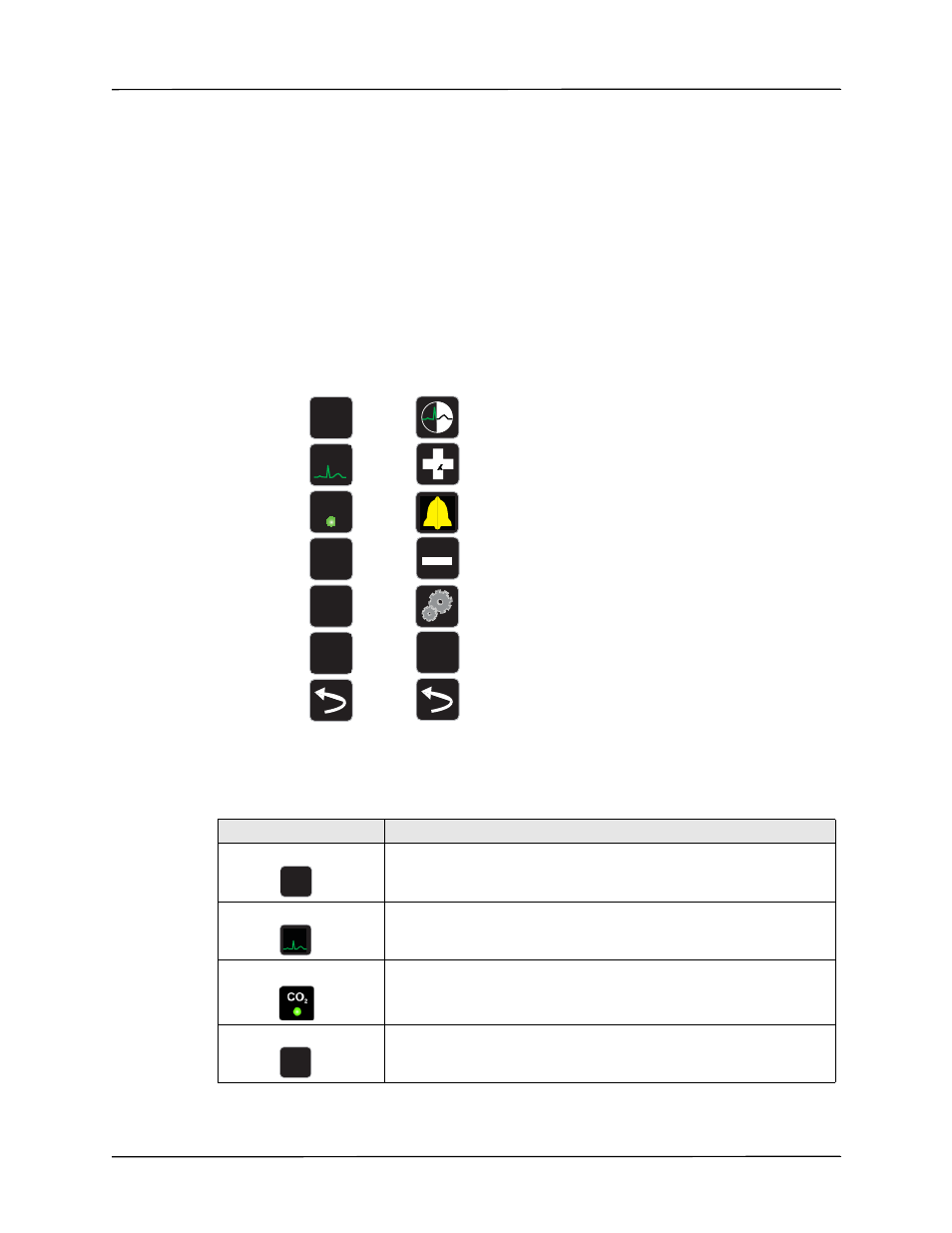

Quick Access Keys
The seven quick access keys on the left side of the display screen are an easy way to access the
functionality of the Propaq M. When you press the last key (left arrow), five more keys are
displayed.
Table 2-3.
Propaq M Quick Access Keys
Quick access key
Description
Lead
Selects the ECG input source for the first waveform trace.
12 lead
Displays the 12-lead monitoring screen.
CO
2
Turns CO
2
on and off.
IBP
Displays IBP setup and zero buttons.
I, II,
III...
12
CO
2
LOG
IBP
R
First level keys
Second level keys
I, II,
III...
12
IBP
