C HAPTER 2 P RODUCT O VERVIEW
2–2 www.zoll.com 9650-000820-01 Rev. B
The Front Panel
The front panel of the Propaq M device includes the display screen, quick access keys, battery
and auxiliary power indicators, and Ready For Use (RFU) indicator. See Figure 2-1. Refer to
Table 2-2 on page 2-3 for information about the controls and indicators.

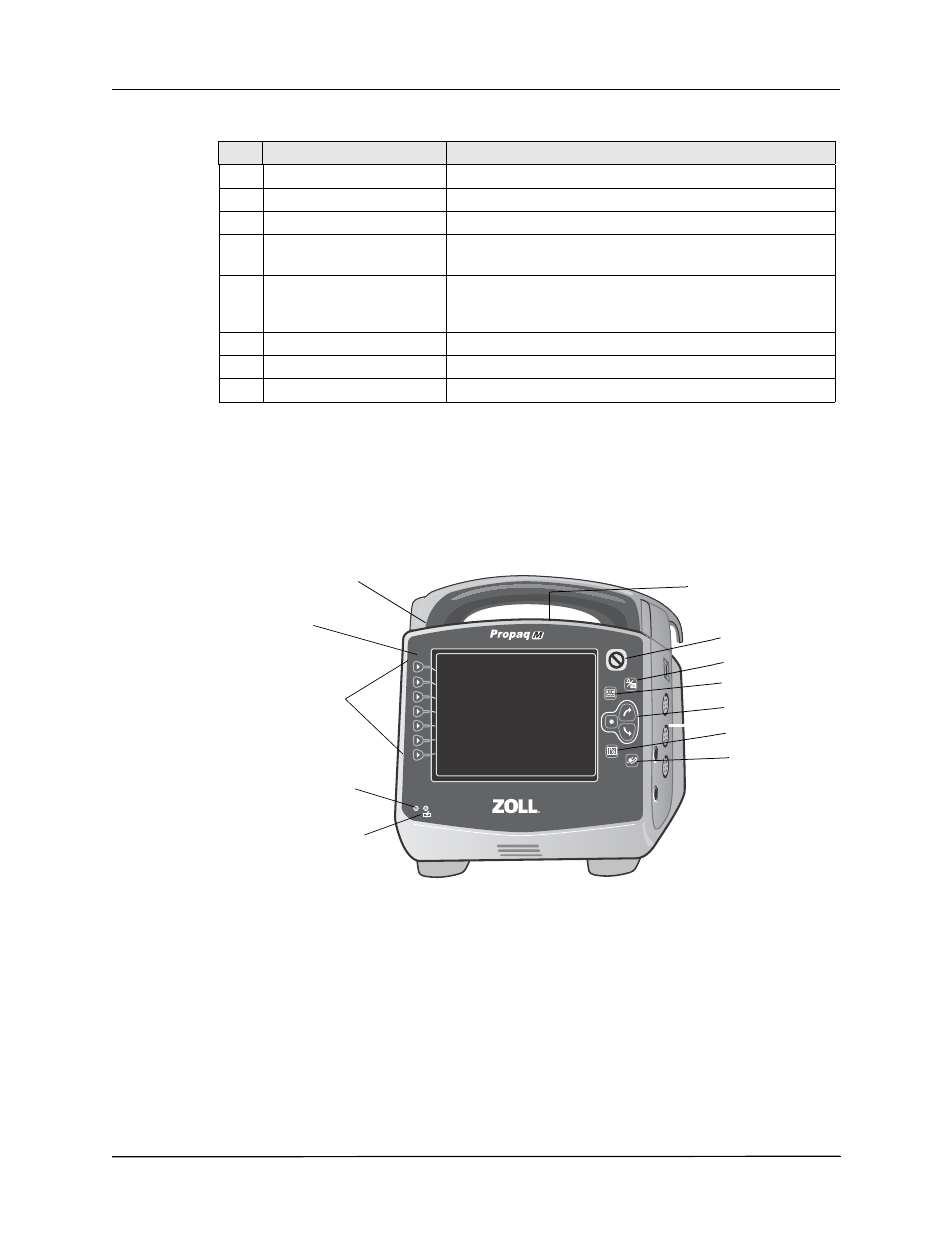

Figure 2-1. Propaq M Front Panel
Table 2-1. Propaq M Unit Features
Item Description
1 Handle Integrated carrying handle.
2 Front panel Includes the display screen and primary controls.
3 Speaker Emits R-wave detection beeps and alarm tones.
4 Patient connectors For details, refer to “Patient Cables and Connectors” on
page 2-7.
5 USB device connector For connecting the Propaq monitor to a USB device. For
details, refer to “Transferring Data to a USB Device” on
page 16-3“.
6 Battery compartment Holds a rechargeable lithium ion battery pack.
7 Auxiliary power connector For connecting the device to an auxiliary power adapter.
8 Dock connector For connecting the device to a docking station.
Seven quick
Display screen
RFU indicator
Auxiliary power LED
Battery charge LED
Silence/reset
Display
Navigation keys
Snapshot
NIBP
access keys
Power button
Visual Alarm Indicators
