Auxiliary Power Adapter
The auxiliary power adapter is used as backup power to operate the Propaq M unit. When it is
connected to the unit, it powers the unit and charges the battery that is installed inside it. When
the power cord is plugged in and the auxiliary power connector is inserted into the back of the
Propaq M unit, the auxiliary power LED on the front panel illuminates and the auxiliary power
icon displays at the top of the display screen.

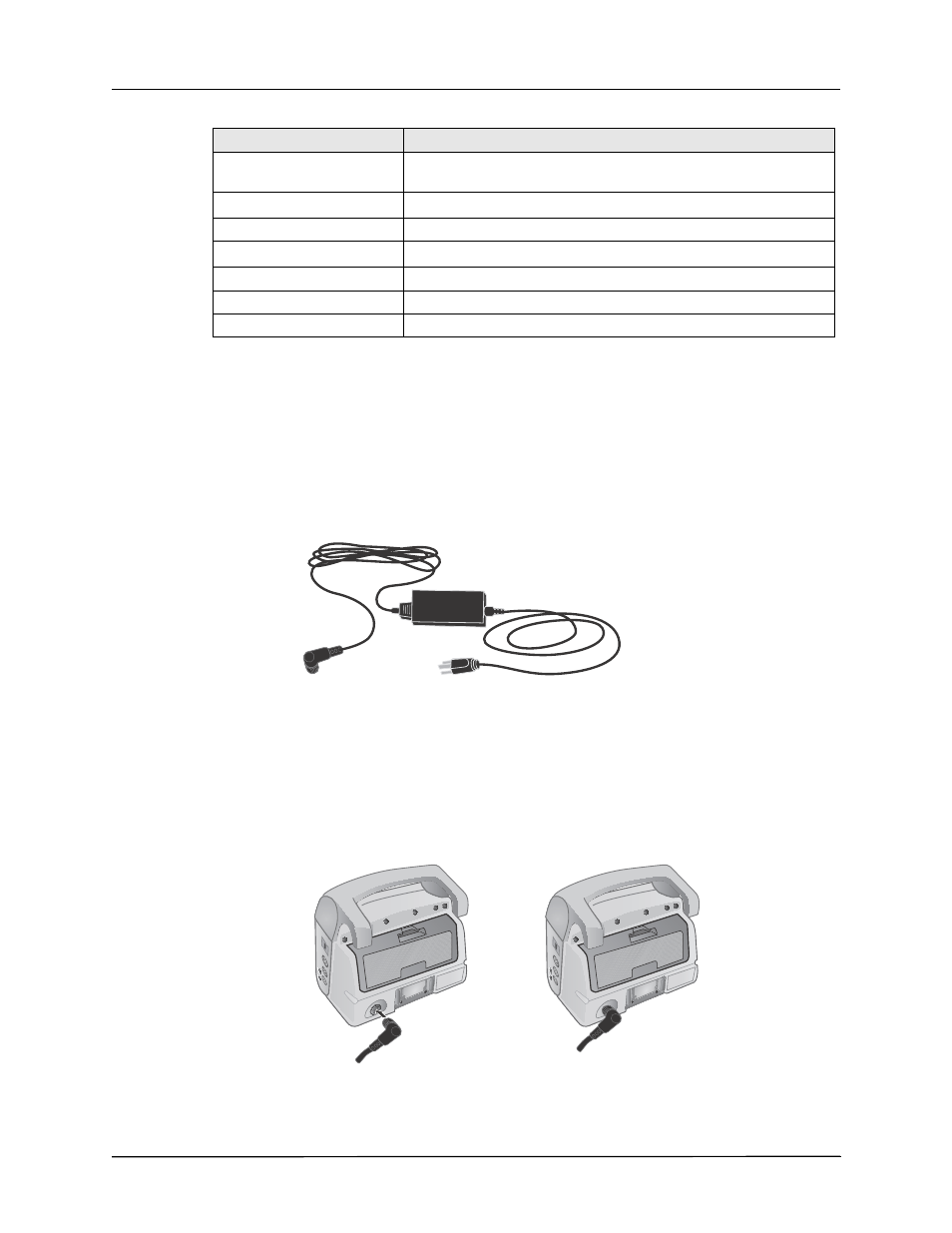

Figure 2-5. Auxiliary Power Adapter
To connect the auxiliary power adapter, align the white arrow of the auxiliary power connector
with the arrow on the input connector on the back of the unit and push it in. To disconnect the
auxiliary power adapter, grasp the connector and pull it out.
Figure 2-6. Connecting the Auxiliary Power Adapter
Connector Description
ECG For connecting 3- or 5-lead ECG cable (12-lead monitoring is
optional).
SpO
2
For connecting Masimo SpO
2
/CO cable.
NIBP For connecting NIBP hose.
CO
2
For connecting CO
2
sampling line.
Temp For connecting temperature probe(s).
USB For connecting the Propaq M monitor to a USB device.
IBP For connecting IBP cable(s).
