Monitor Controls and Indicators
9650-000820-01 Rev. B Propaq M Operator’s Guide 2–3

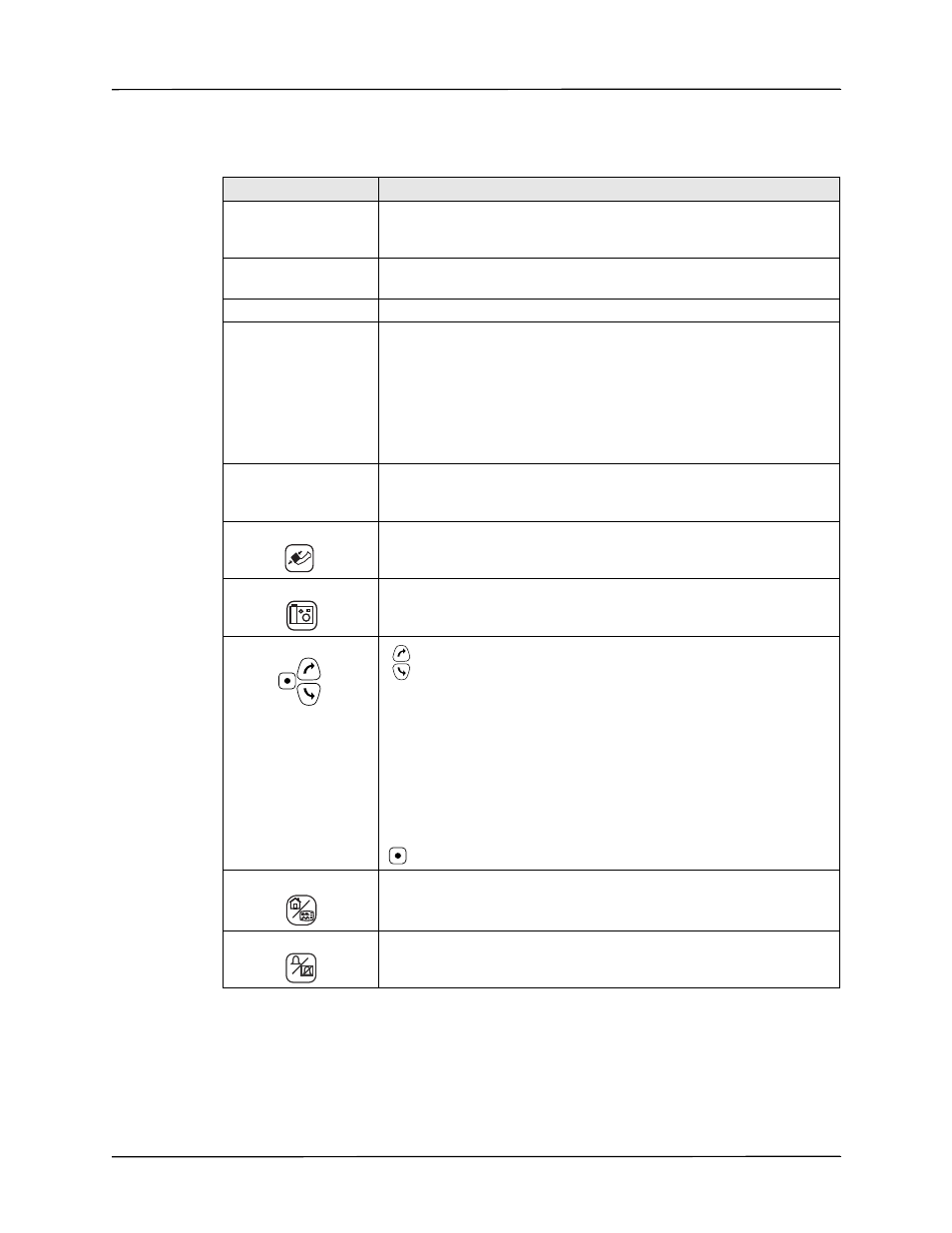

Table 2-2. Propaq M Controls and Indicators
Control or Indicator Description
Display screen Shows therapeutic settings, physiological waveforms and other
information for each monitored parameter, messages, time, and quick
access key labels.
Quick access keys Seven buttons control different functions of the unit. Labels for the quick
access keys appear on the monitor display to the right of each key.
Auxiliary power LED Illuminated when the unit is plugged in to an auxiliary power adapter.
Battery charge LED Indicates battery status:
Steady yellow: Battery is charging.
Steady green: Battery is charged.
Alternating green and yellow: The charge state cannot be determined
or a battery charging fault has been
detected.
No light: Battery is not installed.
Visual alarm
indicators Red, yellow, and green lights located on the top of the unit that flash on
and off when the unit is powered up and are used to indicate a patient
alert, equipment alert, and data transfer.
NIBP button Starts/stops an NIBP measurement.
Snapshot button Records 24 seconds of numeric and waveform data.
Navigation keys
The up (clockwise) arrow will cause the cursor to travel in an
upward direction if the cursor is being used to navigate through a
vertical list or in a clockwise direction if the cursor is being used to
navigate around the full screen. Likewise, the down (counterclockwise)
arrow will cause the cursor to travel in a downward direction if the cursor
is being used to navigate through a vertical list or in a counterclockwise
direction if the cursor is being used to navigate around the full screen.
The up (clockwise) and down (counterclockwise) arrows may also be
used to modify parameter settings.
The Select button acts based on what is highlighted.
Display/Home button Cycles through three available display modes or functions as an Home
button when in a menu.
Silence/Reset button Silences the current alarm tone for 90 seconds or resets a silenced
alarm tone.
