12-Lead ECG Monitoring Setup
9650-000820-01 Rev. B
Propaq M Operator’s Guide
13-9

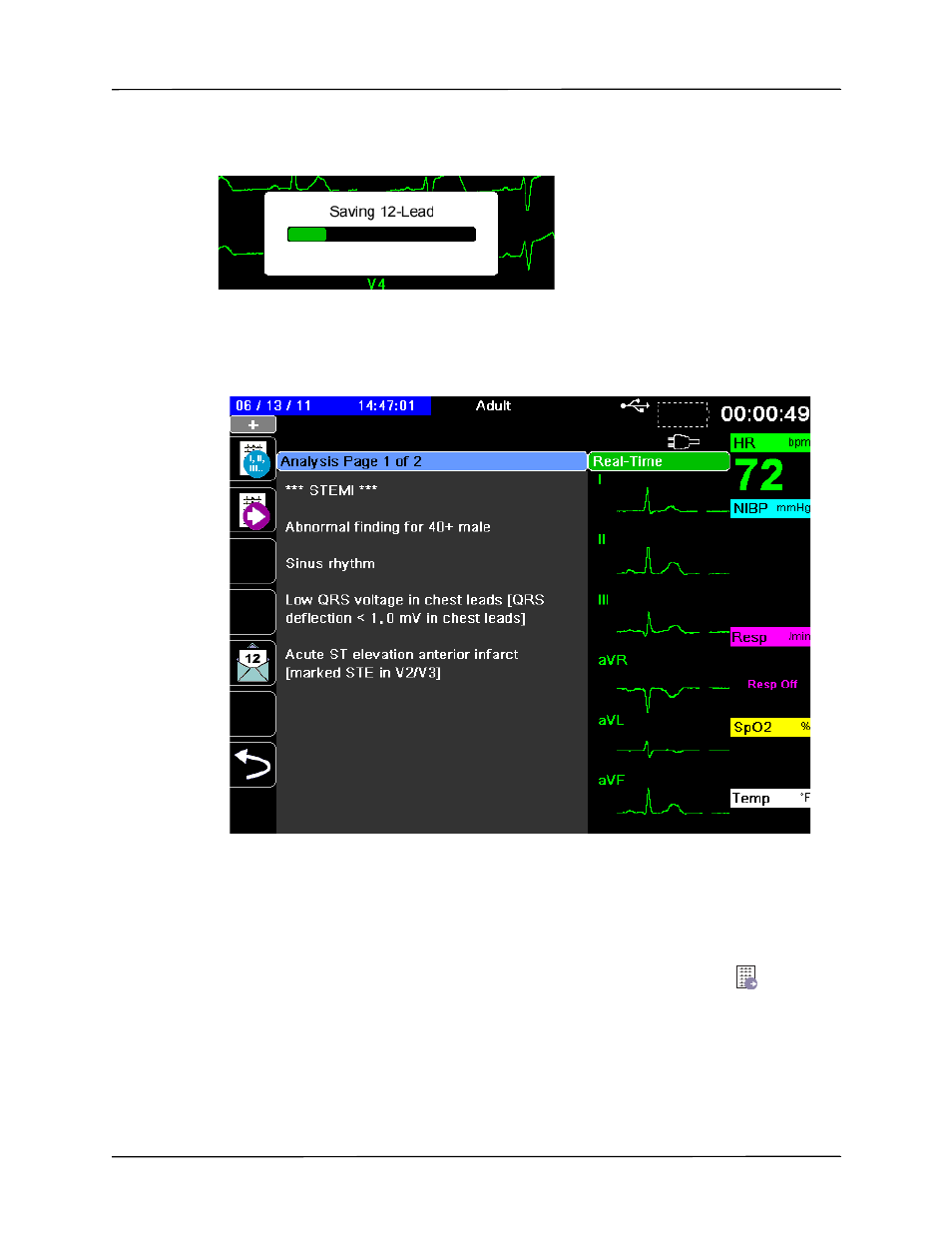

After acquiring the ECG data, the unit saves the data and displays the Saving 12-Lead Status
Bar in the following manner:
After saving the data, the unit performs the post-acquisition Interpretive Analysis and displays
the first page of 12-Lead Interpretive Analysis information:
In the example above, the interpretive statement, ***STEMI***, indicates the occurrence of
ST-Elevation Myocardial Infarction. The interpretive statements that the Propaq M unit
displays are produced by the Audicor software of Inovise Medical, Inc. For more information
on these interpretive statements, see the Audicor 200 Physician’s Guide, Software Version 1.00.
To display Analysis Page 2, press the 12-Lead Review Next quick access key (
).
