28
Merlin Mobile User’s Manual CATC SW Version 2.0
3.3 Status Bar
The Status Bar is located at the bottom of the main display window.
Depending on the current activity, the bar can be divided into as many as
four segments. The figure below demonstrates the various displays in the
status bar.
Recording Progress
When you begin recording, the left-most segment of the Status Bar displays
a Recording Progress Indicator. The following figure displays the various
indications of the status bar:

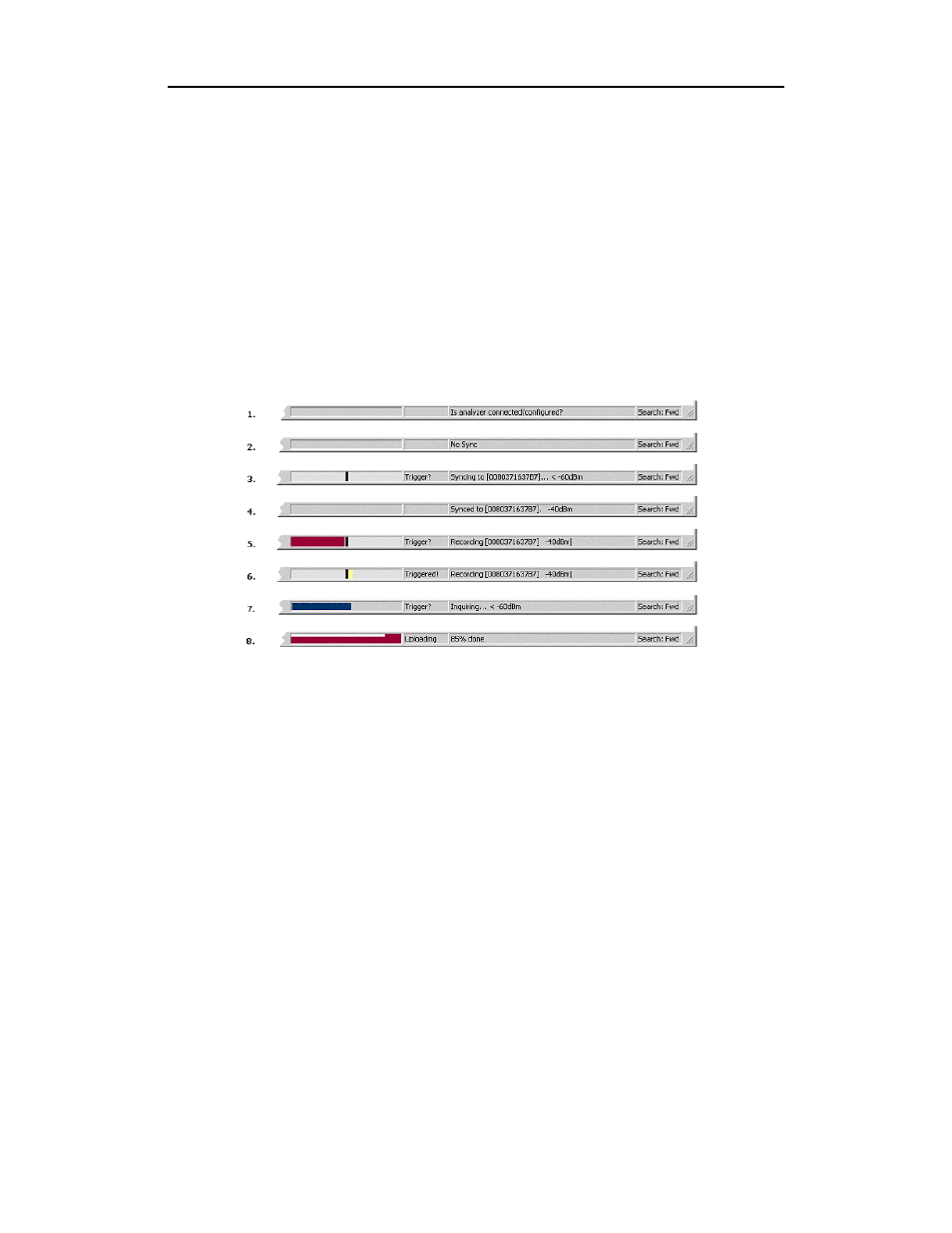

Status Bar Position Definitions:
The following numbered definitions correspond to the number labels on the
above status bars.
1 Analyzer is not connected or not configured.
2 Idle mode: Analyzer is connected to the host machine, but is not doing any
attempts to synchronize to a piconet nor record Bluetooth traffic.
3 Analyzer is trying to synchronize to the piconet with the master device that has
BD_Address 00837163787.
4 Analyzer is synchronized to the piconet with the master device that has
BD_Address 00837163787.
5 Analyzer is recording the traffic of the piconet with the master device that has
BD_Address 00837163787. However, no triggering occurred.
