142
Merlin Mobile User’s Manual CATC SW Version 2.0

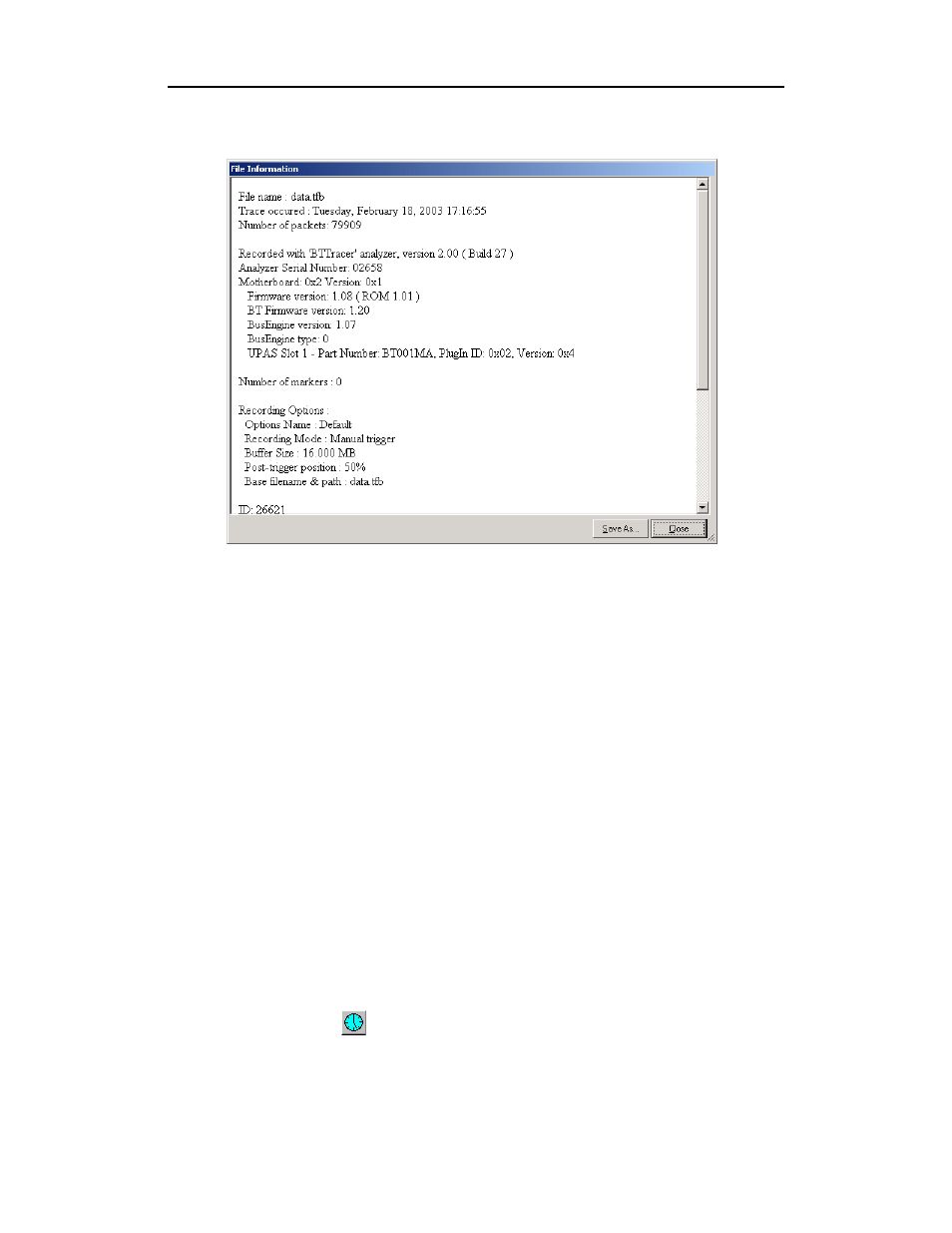

The File Information report provides valuable information about how the
recording was made, what the buffer settings were, what the trigger options
were, and what version of all the analyzer hardware was used to make the
recording.
10.6 Error Summary
The Error Summary command opens the Traffic Summary dialog box and
displays an error summary of the current trace file. The dialog box allows
you to go to a specific packet, and save the error file to a uniquely named
file. See the discussion below on Traffic Summary for more information.
10.7 Timing Calculations
Starts the modeless calculator dialog for calculating various timing and
bandwidth parameters in the recording file.
To display a File Information report,
• Select Timing Calculations under Report in the Menu Bar
OR
Click in the Tool Bar.
