the action, and the device performing the action. If the message is carrying
higher protocol data such as RFCOMM, TCS, OBEX or SDP data, the
message displays this data in an undecoded format that can be decoded later.
9.3 Decoding and Viewing Protocol Data
Higher protocol data can be decoded two ways: by clicking a decode button
on the toolbar or by selecting a decode command from a pull down menu.
Decoding Via the
Decoding
Toolbar
The Decoding Toolbar has ten buttons for decoding packets, messages, and
protocols:
• Pkt (Display Packets)
• HCI (Display HCI Protocol)
• LMP (Display LMP Messages)
• L2CAP (Display L2CAP Messages)
• SDP Msg (Display SDP Protocol Messages)
• SDP Tra (Display SDP Transactions)
• TCS (Display TCS Protocol messages)
• RFCOMM (Display RFCOMM Protocol)
• OBEX (Display OBEX Protocol)
• AT (Display AT Commands Protocol)
• HDLC (Display HDLC Protocol)
• PPP (Display PPP)
• HCRP (Display HCRP)
• AVCTP (Display AVCTP)
• AVDTP (Display AVDTP)
• BNEP (Display Bluetooth Network Encapsulation Protocol)
• HID (Display HID Protocol)

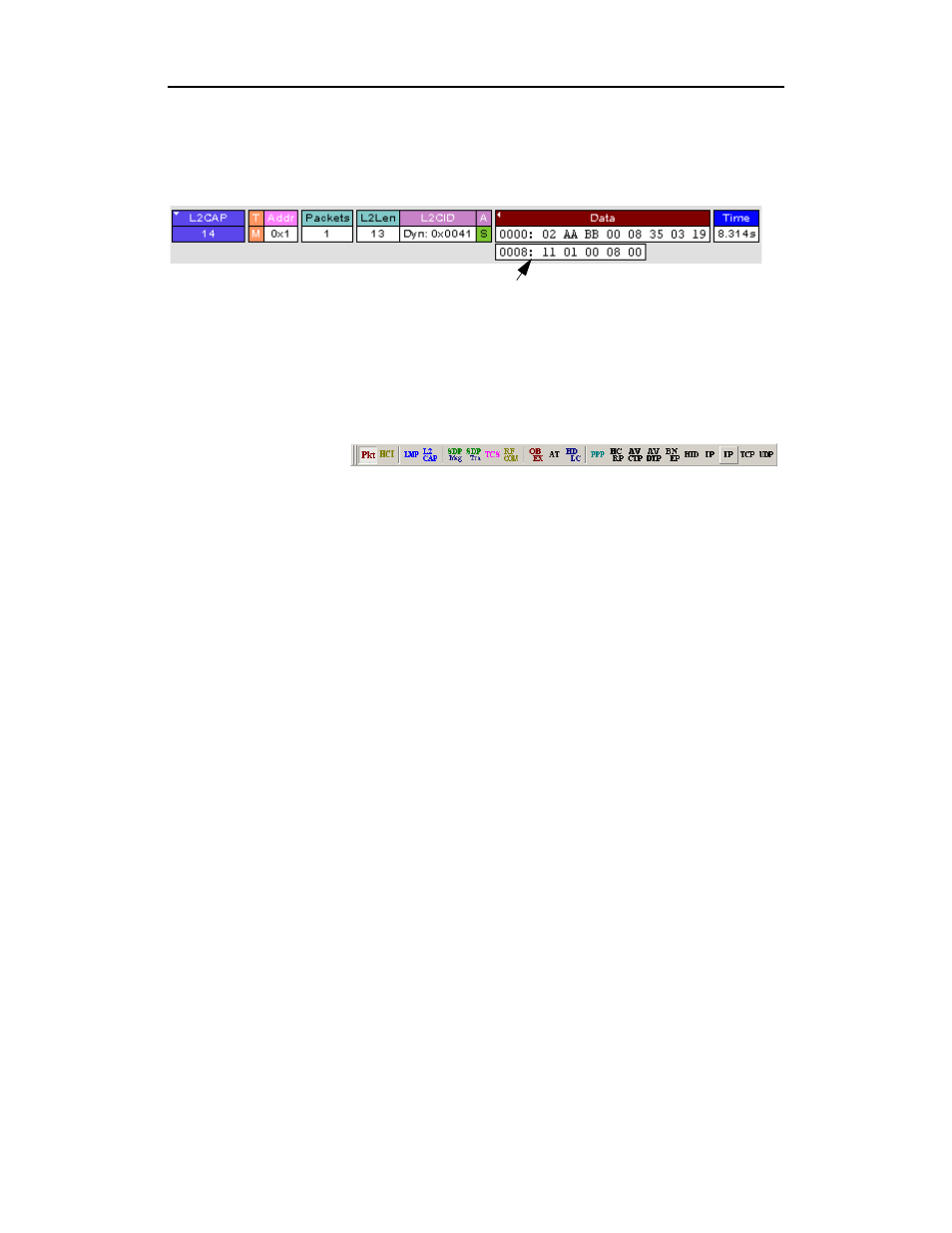

Undecoded higher protocol data
