Displaying Information About VLANs
– 273 –
■
Combined: Shows information for all active user modules.
◆ VLAN ID – A VLAN which has created by one of the software modules.
◆ Port Members – The ports assigned to this VLAN.
W EB I NTERFACE
1.
To display VLAN members, click Monitor, VLANs, VLAN Membership.
2. Select a software module from the drop-down list on the right side of
the page.

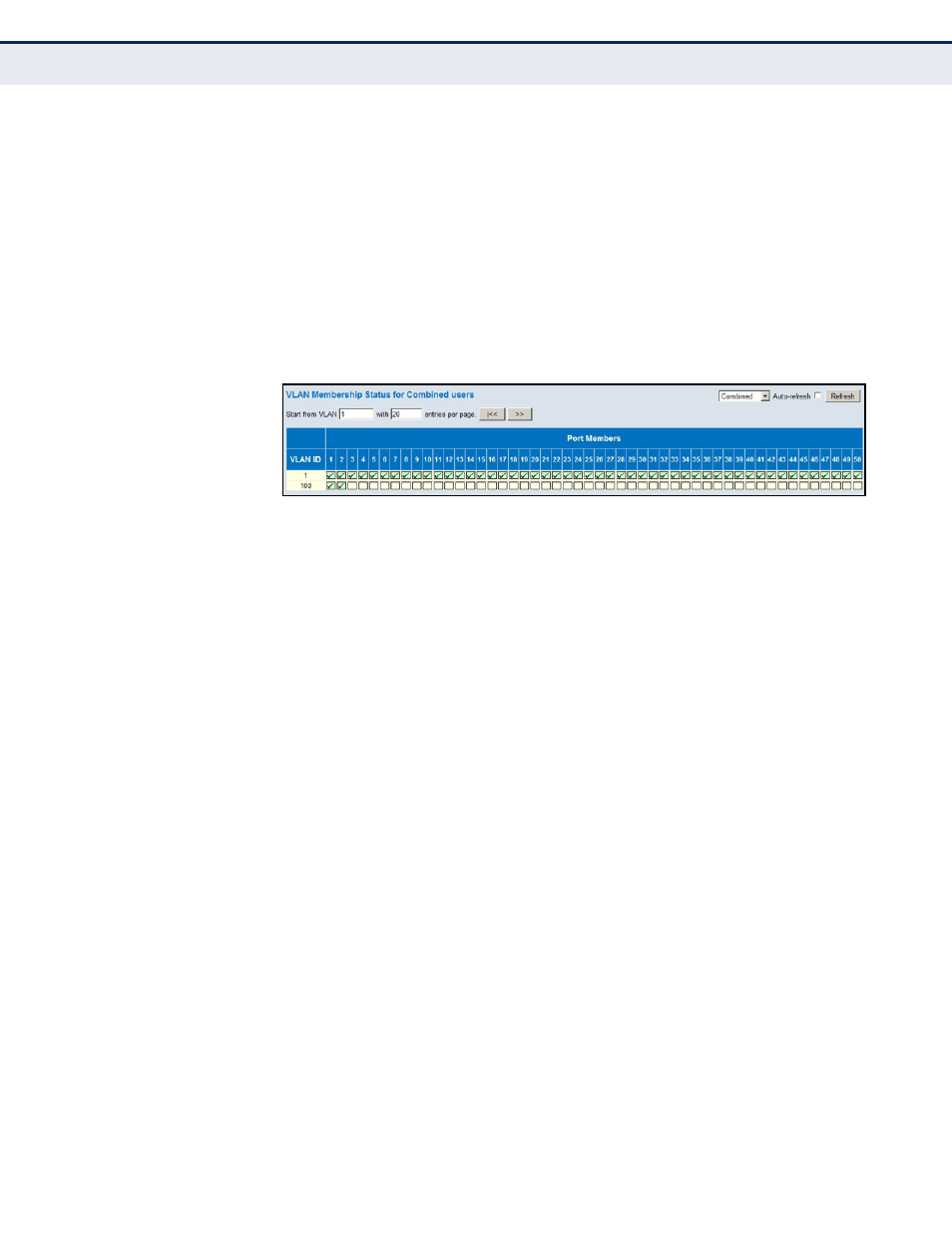

Figure 142: Showing VLAN Members
VLAN P ORT S TATUS
Use the VLAN Port Status page to show the VLAN attributes of port
members for all VLANs configured by a selected software module, including
PVID, VLAN aware, ingress filtering, frame type, egress filtering, and UVID.
Refer to the preceding section for a description of the software modules
that use VLAN management services.
P ATH
Monitor, VLANs, VLAN Port
P ARAMETERS
These parameters are displayed:
◆ VLAN User – A software module that uses VLAN management services
to configure VLAN membership and VLAN port settings such as the
PVID or untagged VLAN ID. Refer to the preceding section for a
description of the software modules that use VLAN management
services.
◆ Port – Port Identifier.
◆ PVID – The native VLAN assigned to untagged frames entering this
port.
◆ Port Type - Shows whether or not a port processes the VLAN ID in
ingress frames (Aware or Unaware).
If a port is not VLAN aware, all frames are assigned to the default VLAN
(as specified by the Port VLAN ID) and tags are not removed.
If a port is VLAN aware, each frame is assigned to the VLAN indicated in
the VLAN tag, and the tag is removed.
